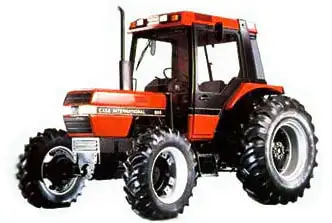

Case IH 595 XL

Case IH 495 XL, 595 XL, 695 XL, 795 XL, 895 XL, 995 XL – specs, opinions & photos

Looking for information about agricultural tractors Case IH 495 XL, 595 XL, 695 XL, 795 XL, 895 XL, 995 XL? In this article, you'll find answers to questions such as:

  • How much horsepower does each model have?
  • What is the engine capacity of these models?
  • What is the hydraulic pump output for each one?
  • What is the PTO speed of these tractors?

With a spec sheet presented in table form, comparing the tractors is quick and easy, and user reviews will help you make the right choice.

Table of contents:

Technical specifications of the agricultural tractors Case IH 495 XL, 595 XL, 695 XL, 795 XL, 895 XL, 995 XL:

Case IH 495 XL
Case IH 595 XL
Case IH 695 XL
Case IH 795 XL
Case IH 895 XL
Case IH 995 XL

Case IH 495 XL

  • Years of production: 90-93
  • Maximum engine power (HP) / at RPM: 52/2180
  • Number of gearbox speeds (forward + reverse): 8+4
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 112

Case IH 595 XL

  • Years of production: 90-93
  • Maximum engine power (HP) / at RPM: 60/2300
  • Number of gearbox speeds (forward + reverse): 8+4
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 112

Case IH 695 XL

  • Years of production: 90-93
  • Maximum engine power (HP) / at RPM: 69/2300
  • Number of gearbox speeds (forward + reverse): 8+4
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 112

Case IH 795 XL

  • Years of production: 90-93
  • Maximum engine power (HP) / at RPM: 77/2300
  • Number of gearbox speeds (forward + reverse): 8+8
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 112

Case IH 895 XL

  • Years of production: 90-93
  • Maximum engine power (HP) / at RPM: 83/2400
  • Number of gearbox speeds (forward + reverse): 16+8
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 112

Case IH 995 XL

  • Years of production: 90-93
  • Maximum engine power (HP) / at RPM: 90/2400
  • Number of gearbox speeds (forward + reverse): 8+8
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 112

For details and a comparison of the tractors, see the technical sheet below.

Advertisement


Technical Data Sheet for Case IH 695 XL, 495 XL, 595 XL, 795 XL, 895 XL, 995 XL tractors:

Comparison of technical parameters of agricultural tractors
Model Case IH 495 XL Case IH 595 XL Case IH 695 XL Case IH 795 XL Case IH 895 XL Case IH 995 XL
Years of production 90-93 90-93 90-93 90-93 90-93 90-93
Engine designation/type D-179 D-206 D-239 D-246 D-268 D-268 T
Number of cylinders / Turbo / Intercooler 3 4 4 4 4 4T
Engine displacement (cm³) 2934 3382 3917 4037 4392 4392
Piston diameter / Stroke (mm) 98,4×128,5 98,4×111,1 98,4×128,5 100×128,5 100×139,7 100×139,7
Maximum engine power (HP) / at RPM 52/2180 60/2300 69/2300 77/2300 83/2400 90/2400
Torque (Nm) / at RPM 182/1400 220/1400 237/1600 256/1600 284/1400 300/1400
Number of gearbox speeds (forward + reverse) 8+4 8+4 8+4 8+8 16+8 8+8
Number of synchronized gears (forward + reverse) 8+4 8+4 8+4 8+8 16+8 8+8

Advertisement

Fast gearbox / Power shift – – – – – –
Reverser type – – – – – –
Speed range (km/h) 2,9-33,3 3,1-34,0 3,2-36,0 3,2-34,0 2,6-36,0 3,2-34,0
Maximum speed (km/h) – – – – – –
Hydraulic pump capacity (L/min) 46/59 49/62 49/62 51/65 51/65 65
Rear three-point hitch (TUV) control type mech mech mech mech mech mech
Maximum rear three-point hitch (TUV) lift capacity (kg) 1680 2000 2380 2380 2380 2380
Power take-off (PTO) speed (RPM) 540/1000 540/1000 540/1000 540/1000 540/1000 540/1000
Type of disc brake (dry/wet) – – – – – –
Brake system control type mech hydr hydr hydr hydr hydr
Turning radius 2WD (m) 7,02 7,12 7,62 – – –
Turning radius 4WD (m) 8,23 8,23 8,23 8,23 8,23 –

Advertisement

Front tire size 2WD 7,50-16 7,50-18 10,00-16 – – –
Front tire size 4WD 12,4-24 12,4-24 12,4-24 12,4-24 13,6-24 –
Rear tire size 2WD 12,4-36 13,6-38 16,9-34 – – –
Rear tire size 4WD 13,6-38 16,9-34 16,9-34 16,9-34 18,4-34 –
Total weight 2WD (kg) 2550 2900 3040 – – –
Total weight 4WD (kg) 3260 3260 3280 3300 3450 –
Total height with cabin (cm) 254 265 265 265 265 269
Total length (cm) 340 361/362 368/375 368/375 375 375
Total width (cm) 201 216/224 224 224 224 224
Fuel tank capacity (L) 112 112 112 112 112 112
Cabin noise level (dB) 85 84 84 84 84 –

Fuel consumption and user reviews of tractors Case IH 495 XL, 595 XL, 695 XL, 795 XL, 895 XL, 995 XL:

Add your opinion:

Easy work 0.0 l/h
Medium work 0.0 l/h
Hard work 0.0 l/h

Opinions posted:

No opinions.

Average fuel consumption:

Easy - l/h
Medium - l/h
Hard - l/h

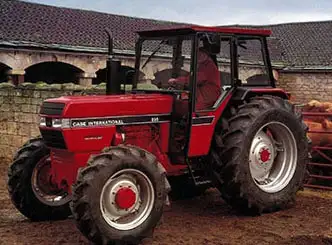

Case IH 695 XL, 495 XL, 595 XL, 795 XL, 895 XL, 995 XL Gallery:
