Case IH OPTUM 300 CVX

Case IH Optum 270 CVX, 300 CVX – specs, opinions & photos

Looking for information about agricultural tractors Case IH Optum 270 CVX, 300 CVX? In this article, you'll find answers to questions such as:

  • How much horsepower does each model have?
  • What is the engine capacity of these models?
  • What is the hydraulic pump output for each one?
  • What is the PTO speed of these tractors?

With a spec sheet presented in table form, comparing the tractors is quick and easy, and user reviews will help you make the right choice.

Table of contents:

Technical specifications of the agricultural tractors Case IH Optum 270 CVX, 300 CVX:

Case IH Optum 270 CVX
Case IH Optum 300 CVX

Case IH Optum 270 CVX

  • Years of production: 2015-
  • Maximum engine power (HP) / at RPM: 271/2100
  • Number of gearbox speeds (forward + reverse): –
  • Maximum speed (km/h): 40 (50)
  • Fuel tank capacity (L): 630+AB96

Case IH Optum 300 CVX

  • Years of production: 2015-
  • Maximum engine power (HP) / at RPM: 300/2100
  • Number of gearbox speeds (forward + reverse): –
  • Maximum speed (km/h): 40 (50)
  • Fuel tank capacity (L): 630+AB96

For details and a comparison of the tractors, see the technical sheet below.

Advertisement


Technical Data Sheet for Case IH Optum 270 CVX, 300 CVX Agricultural tractors:

Comparison of technical parameters of agricultural tractors
Model Case IH Optum 270 CVX Case IH Optum 300 CVX
Years of production 2015- 2015-
Engine designation/type NEF NEF
Number of cylinders / Turbo / Intercooler 6TI 6TI
Engine displacement (cm³) 6728 6728
Piston diameter / Stroke (mm) 104×132 104×132
Maximum engine power (HP) / at RPM 271/2100 300/2100
Torque (Nm) / at RPM 1194/1400 1282/1400
Number of gearbox speeds (forward + reverse) – –
Number of synchronized gears (forward + reverse) – –

Advertisement

Fast gearbox / Power shift – –
Reverser type hydr hydr
Speed range (km/h) 0,03-40 0,03-40
Maximum speed (km/h) 40 (50) 40 (50)
Hydraulic pump capacity (L/min) 165 (223) 165 (223)
Rear three-point hitch (TUV) control type ehr ehr
Maximum rear three-point hitch (TUV) lift capacity (kg) 11058 11058
Power take-off (PTO) speed (RPM) 540/750/1000/1250 540/750/1000/1250
Type of disc brake (dry/wet) – –
Brake system control type – –
Turning radius 2WD (m) – –
Turning radius 4WD (m) 15,4 15,4

Advertisement

Front tire size 2WD – –
Front tire size 4WD 600/70R30 600/70R30
Rear tire size 2WD – –
Rear tire size 4WD 650/85R38 650/85R38
Total weight 2WD (kg) – –
Total weight 4WD (kg) 10500 10500
Total height with cabin (cm) 327 327
Total length (cm) 570 570
Total width (cm) 300 300
Fuel tank capacity (L) 630+AB96 630+AB96
Cabin noise level (dB) 69 69

Fuel consumption and user reviews of tractors Case IH Optum 270 CVX, 300 CVX:

Add your opinion:

Easy work 0.0 l/h
Medium work 0.0 l/h
Hard work 0.0 l/h

Opinions posted:

No opinions.

Average fuel consumption:

Easy - l/h
Medium - l/h
Hard - l/h

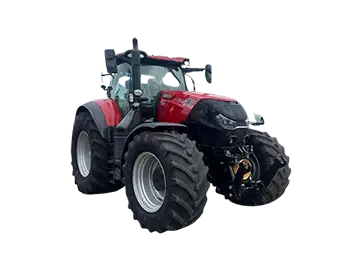

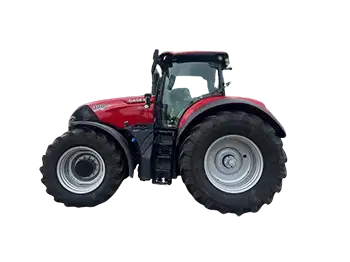

Case IH Optum 270 CVX, 300 CVX Gallery:
