Technical specification of the FiatAgri 45-66S agricultural tractor:
FiatAgri 45-66S Agricultural Tractor was produced between 1992-1996. It was equipped with a three-cylinder engine designated 8035.06 with a displacement of 2710 cm³. This engine produces 45 HP at 2500 RPM and a torque of 154 Nm at 1300 RPM. The tractor has a gearbox with 12+4 synchronized gears, allowing a maximum speed of 30 km/h, with a speed range from 1.4 to 29.9 km/h. The hydraulic pump’s capacity is 34.5 liters per minute, and the mechanically controlled rear lift has a lifting capacity of 2125 kg. The power take-off shaft operates at 540 or 1000 revolutions per minute, and the braking system is hydraulic. The turning radius is 7 meters for the 2WD version and 8.4 meters for the 4WD version. The tire dimensions are 6.00-16 (2WD) or 300/70R20 (4WD) at the front and 380/70R28 at the rear for both versions. The total weight of the tractor is 1930 kg for the 2WD version and 2150 kg for the 4WD version. The height with the cabin is 225 cm, the length is 324 cm, and the width is 200 cm (2WD) or 190 cm (4WD). The fuel tank capacity is 42 liters, and the noise level in the cabin does not exceed 86 dB.
Advertisement
Technical data sheet of the FiatAgri 45-66S, 55-66S, 60-66S, 65-66S, 70-66S, 80-66S agricultural tractors:
| Model | FiatAgri 45-66S | FiatAgri 55-66S | FiatAgri 60-66S | FiatAgri 65-66S | FiatAgri 70-66S | FiatAgri 80-66S |
| Years of production | 92-96 | 92-95 | 92-96 | 92-96 | 92-96 | 92-96 |
| Engine model / type | 8035.06 | 8035.06 | 8035.05 | 8045.05 | 8045.06 | 8045.06 |
| Number of cylinders / turbocharging | 3 | 3 | 3 | 4 | 4 | 4 |
| Engine displacement (cm3) | 2710 | 2710 | 2931 | 3631 | 3631 | 3631 |
| Piston dimension / stroke (mm) | 100×115 | 100×115 | 104×115 | 100×115 | 100×115 | 100×115 |
| Maximum engine power (hp) / rpm | 45/2500 | 55/2500 | 60/2500 | 65/2500 | 70/2500 | 80/2500 |
| Torque (Nm) / rpm | 154/1300 | 176/1500 | 203/1500 | 216/1500 | 224/1500 | 267/1400 |
| Number of gears (front + rear) | 12+4 | 12+4 | 12+4 | 12+4 | 12+4 | 12+4 |
| Number of synchronized gears (front+rear) | 12+4 | 12+4 | 12+4 | 12+4 | 12+4 | 12+4 |
Advertisement
| Speed-Shift | – | – | – | – | – | – |
| Type of reverse | – | – | – | – | – | – |
| Driving speed (km/h) | 1,4-29,9 | 1,4-29,9 | 1,4-29,9 | 1,4-39,9 | 1,4-29,9 | 1,4-29,9 |
| Max Driving speed (km/h) | 30 | 30/40 | 30/40 | 30/40 | 30/40 | 30/40 |
| Hydraulic pump capacity (L/min) | 34,5 | 34,5 | 34,5 | 34,5 | 34,5 | 34,5 |
| 3-Point Hitch control | mech | mech | mech | mech | mech | mech |
| 3-point hitch max load (kg) | 2125 | 3000 | 3000 | 3000 | 3565 | 3565 |
| PTO speed (rpm) | 540/1000 | 540 | 540 | 540 | 540 | 540 |
| Disc brake type (dry / wet) | – | – | – | – | – | – |
| Type of control of the braking system | hydr | hydr | hydr | hydr | hydr | hydr |
| Turning radius 2WD (m) | 7 | 7,34 | 7,34 | 7,8 | 7,8 | 7,8 |
| Turning radius 4WD (m) | 8,4 | 8,9 | 8,9 | 8,9 | 8,9 | 8,9 |
Advertisement
| Front wheel 2WD | 6,00-16 | 6,00-16 | 7,50-16 | 7,50-16 | 7,50-18 | 7,50-18 |
| Front wheel 4WD | 300/70R20 | 8,00-20 | 11,2-20 | 11,2-24 | 11,2-24 | 11,2-28 |
| Rear wheel 2WD | 380/70R28 | 13,6-28 | 14,9-30 | 14,9-30 | 13,6-36 | 13,6-38 |
| Rear wheel 4WD | 380/70R28 | 13,6-28 | 14,9-30 | 12,4-36 | 16,9-30 | 13,6-38 |
| 2WD total weight (kg) | 1930 | 2635 | 2770 | 2815 | 2800 | 2800 |
| 4WD total weight (kg) | 2150 | 2925 | 3010 | 3060 | 3150 | 3150 |
| Total height with cabin (cm) | 225 | 239 | 240 | 240 | 241 | 243 |
| Total length (cm) | 324 | 364 | 364/368 | 392/401 | 392/401 | 392/401 |
| Total width (cm) | 200/190 | 218/213 | 218/212 | 229/225 | 231/225 | 231/225 |
| Fuel tank capacity (l) | 42 | 73 | 73 | 73 | 73 | 73 |
| Cabin sound level (dB) | 86 | 87 | 86 | 86 | 86 | 86 |
Advertisement
Add your opinion and share the fuel consumption of the tractor FiatAgri 45-66S, 55-66S, 60-66S, 65-66S, 70-66S, 80-66S:

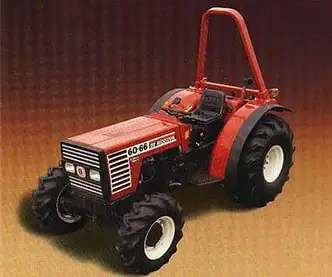

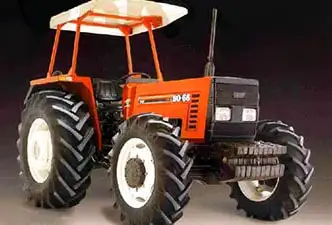

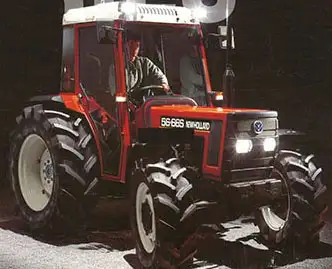

FiatAgri 45-66S, 55-66S, 60-66S, 65-66S, 70-66S, 80-66S Gallery:
