Technical Specifications of the Lamborghini Crono 554-50 Agricultural Tractor:
The Lamborghini Crono 554-50 Agricultural Tractor features a three-cylinder engine, model 1000.3A3, with a displacement of 3000 cm³. It delivers a maximum output of 50 HP at 2350 rpm and a torque of 172 Nm at 1600 rpm. The transmission offers 16 forward and 8 reverse gears, fully synchronized, with a mechanical high-speed gearbox. Travel speed ranges from 1.5 to 40.0 km/h. The hydraulic pump has a flow rate of 33 or 45 L/min, and the mechanical rear lift has a maximum lifting capacity of 2960 kg. The PTO operates at speeds of 540 and 750 rpm. The turning radius is 6.8 m in the 2WD version and 6.9 m in the 4WD version. The 2WD tire sizes are 7.50-16 in the front and 14.9R28 in the rear, while the 4WD sizes are 11.2R20 and 14.9R28. The tractor’s dimensions range from 338-348 cm in length, 193-198 cm in width, and 224 cm in height, with a weight of 2090 kg in the 2WD version and 2310 kg in the 4WD version. The fuel tank capacity is 58 liters, and the noise level inside the cabin is 85 dB.
Advertisement
Technical Data Sheet for Lamborghini Crono 554-50, 564-60, 574-70 Tractors:
Model | Lamborghini Crono 554-50 | Lamborghini Crono 564-60 | Lamborghini Crono 574-70 |
Years of production | – | – | – |
Engine model / type | 1000.3A3 | 1000.3A4 | 1000.3AT |
Number of cylinders / turbocharging | 3 | 3 | 3T |
Engine displacement (cm3) | 3000 | 3000 | 3000 |
Piston dimension / stroke (mm) | 105×115,5 | 105×115,5 | 105×115,5 |
Maximum engine power (hp) / rpm | 50/2350 | 60/2350 | 70/2350 |
Torque (Nm) / rpm | 172/1600 | 201/1500 | 255/1450 |
Number of gears (front + rear) | 16+8 | 16+8 | 16+8 |
Number of synchronized gears (front+rear) | 16+8 | 16+8 | 16+8 |
Advertisement
Speed-Shift | mech | mech | mech |
Type of reverse | – | – | – |
Driving speed (km/h) | 1,5-40,0 | 1,5-40,0 | 1,5-40,0 |
Max Driving speed (km/h) | – | – | – |
Hydraulic pump capacity (L/min) | 33/45 | 33/45 | 33/45 |
3-Point Hitch control | mech | mech | mech |
3-point hitch max load (kg) | 2960 | 2960 | 2960 |
PTO speed (rpm) | 540/750 | 540/750 | 540/750 |
Disc brake type (dry / wet) | – | – | – |
Type of control of the braking system | hydr | hydr | hydr |
Turning radius 2WD (m) | 6,8 | 7,1 | 7,1 |
Turning radius 4WD (m) | 6,9 | 7,2 | 7,2 |
Advertisement
Front wheel 2WD | 7,50-16 | 7,50-16 | 7,50-18 |
Front wheel 4WD | 11,2R20 | 9,5R24 | 11,2R24 |
Rear wheel 2WD | 14,9R28 | 14,9R30 | 16,9R30 |
Rear wheel 4WD | 14,9R28 | 14,9R30 | 16,9R30 |
2WD total weight (kg) | 2090 | 2260 | 2360 |
4WD total weight (kg) | 2310 | 2500 | 2600 |
Total height with cabin (cm) | 224 | 234 | 238 |
Total length (cm) | 338/348 | 359/374 | 359/374 |
Total width (cm) | 198/193 | 211/206 | 211/206 |
Fuel tank capacity (l) | 58 | 58 | 58 |
Cabin sound level (dB) | 85 | 84 | 85 |
Advertisement
Add your opinion and share the fuel consumption of the tractor Lamborghini Crono 554-50, 564-60, 574-70:

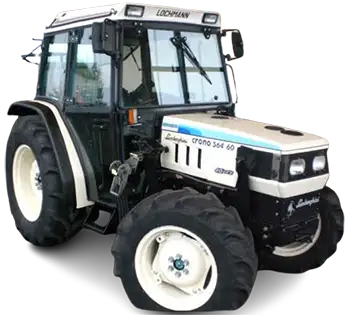

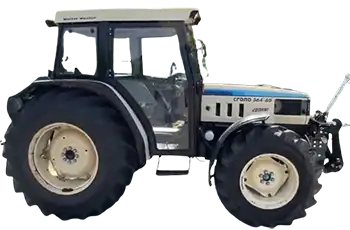

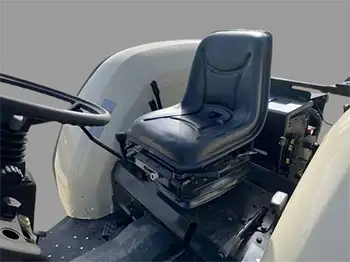

Lamborghini Crono 554-50, 564-60, 574-70 Gallery:
