Technical Specifications of the Lamborghini R4.85 Agricultural Tractor:
The Lamborghini R4.85 Agricultural Tractor features a four-cylinder turbocharged engine, model 1000.4-WT, with a displacement of 4000 cm³. It delivers a maximum output of 85 HP at 2300 rpm and a torque of 344 Nm at 1400 rpm. The transmission is available in 20+20 or 60+60 synchronized configurations, with a mechanical or hydraulic power shuttle. Travel speed ranges from 0.5 to 37.8 km/h, with a top speed of 40 km/h. The hydraulic pump has a flow rate of 58 L/min, and the electronically controlled rear lift (EHR) offers a maximum lifting capacity of 4800 kg, with an optional upgrade to 6200 kg. The PTO operates at speeds of 540 and 750 rpm. The turning radius is 7.2 m in the 2WD version and 9.3 m in the 4WD version. The 2WD tire sizes are 10.00-16 in the front and 16.9R34 in the rear, while the 4WD sizes are 13.6R24 and 16.9R34. The tractor’s dimensions include a length of 410 cm, a width of 238 cm, and a height of 280 cm, with a weight of 3630 kg in the 2WD version and 4055 kg in the 4WD version. The fuel tank capacity is 150 liters, and the noise level inside the cabin is 75 dB.
Advertisement
Technical Data Sheet for Lamborghini R4.85, R4.95, R4.105 Tractors:
Model | Lamborghini R4.85 | Lamborghini R4.95 | Lamborghini R4.105 |
Years of production | – | – | – |
Engine model / type | 1000.4-WT | 1000.4-WT | 1000.6W |
Number of cylinders / turbocharging | 4T | 4T | 6 |
Engine displacement (cm3) | 4000 | 4000 | 6000 |
Piston dimension / stroke (mm) | 105×115,5 | 105×115,5 | 105×115,5 |
Maximum engine power (hp) / rpm | 85/2300 | 91/2300 | 100/2300 |
Torque (Nm) / rpm | 344/1400 | 367/1400 | 391/1400 |
Number of gears (front + rear) | 20+20/60+60 | 20+20/60+60 | 20+20/60+60 |
Number of synchronized gears (front+rear) | 20+20/60+60 | 20+20/60+60 | 20+20/60+60 |
Advertisement
Speed-Shift | – | – | – |
Type of reverse | mech/hydr | mech/hydr | mech/hydr |
Driving speed (km/h) | 0,5-37,8 | 0,5-37,8 | 0,5-37,8 |
Max Driving speed (km/h) | 40 | 40 | 40 |
Hydraulic pump capacity (L/min) | 58 | 58 | 58 |
3-Point Hitch control | ehr | ehr | ehr |
3-point hitch max load (kg) | 4800 (6200) | 4800 (6200) | 4800 (6200) |
PTO speed (rpm) | 540/750/ | 540/750/ | 540/750/ |
Disc brake type (dry / wet) | – | – | – |
Type of control of the braking system | – | – | – |
Turning radius 2WD (m) | 7,2 | – | – |
Turning radius 4WD (m) | 9,3 | 9,3 | 9,86 |
Advertisement
Front wheel 2WD | 10.00-16 | – | – |
Front wheel 4WD | 13.6R24 | 13.6R24 | 14.9R24 |
Rear wheel 2WD | 16.9R34 | – | – |
Rear wheel 4WD | 16.9R34 | 16.9R34 | 520/70R34 |
2WD total weight (kg) | 3630 | – | – |
4WD total weight (kg) | 4055 | 4055 | 4320 |
Total height with cabin (cm) | 280 | 280 | 283 |
Total length (cm) | 410 | 410 | 445 |
Total width (cm) | 238 | 247/238 | 264 |
Fuel tank capacity (l) | 150 | 150 | 175 |
Cabin sound level (dB) | 75 | 75 | 75 |
Advertisement
Add your opinion and share the fuel consumption of the tractor Lamborghini R4.85, R4.95, R4.105:

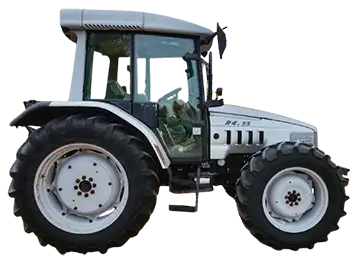

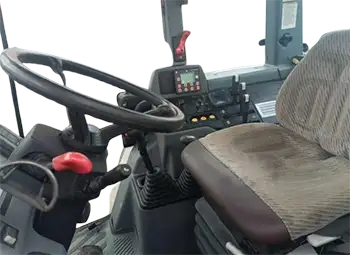

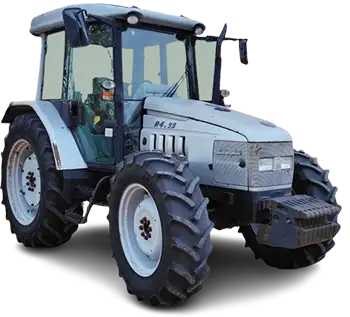

Lamborghini R4.85, R4.95, R4.105 Gallery:
