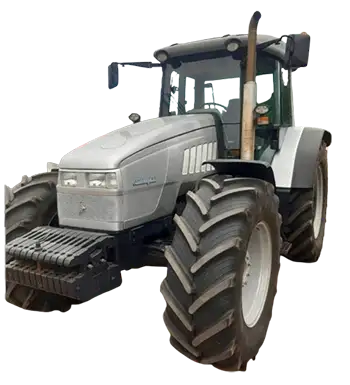

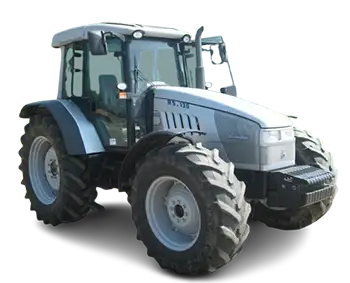

Technical specifications of the agricultural tractor Lamborghini R5.115/R5.130/R5.140 Evo/R5.160 Evo:
Advertisement
Model | Lamborghini R5.115 | Lamborghini R5.130 | Lamborghini R5.140 Evo | Lamborghini R5.160 Evo |
Years of production | – | – | 2010-13 | 2010-13 |
Engine model / type | 1000.6 WT | 1000.6 WT | 1000.6 WTI | 1000.6 WTI |
Number of cylinders / turbocharging | 6T | 6T | 6TI | 6TI |
Engine displacement (cm3) | 6000 | 6000 | 6000 | 6000 |
Piston dimension / stroke (mm) | 105×115,5 | 105×115,5 | 105×115,5 | 105×115,5 |
Maximum engine power (hp) / rpm | 115/2500 | 128/2500 | 140/2350 | 163/2350 |
Torque (Nm) / rpm | 445/1400 | 493/1300 | 510/1600 | 624/1600 |
Number of gears (front + rear) | 24+24/72+72 | 24+24/72+72 | 16+12/24+12 | 16+12/24+12 |
Number of synchronized gears (front+rear) | 24+24/72+72 | 24+24/72+72 | 16+12/24+12 | 16+12/24+12 |
Advertisement
Speed-Shift | – | – | – | – |
Type of reverse | hydr | hydr | hydr | hydr |
Driving speed (km/h) | 0,15-37,8 | 0,15-37,8 | – | – |
Max Driving speed (km/h) | 40 | 40 | 40 | 40 |
Hydraulic pump capacity (L/min) | 58 | 58 | 68 | 68 |
3-Point Hitch control | ehr | ehr | mech | mech |
3-point hitch max load (kg) | 4800 (6200) | 4800 (6200) | 5400 (7000) | 5400 (7000) |
PTO speed (rpm) | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
Disc brake type (dry / wet) | – | – | – | – |
Type of control of the braking system | – | – | – | – |
Turning radius 2WD (m) | – | – | – | – |
Turning radius 4WD (m) | 10,6 | 10,6 | – | – |
Advertisement
Front wheel 2WD | – | – | – | – |
Front wheel 4WD | 14.9R30 | 14.9R30 | 13.6R28 | 14.9R30 |
Rear wheel 2WD | – | – | – | – |
Rear wheel 4WD | 18.4R38 | 18.4R38 | 16.9R38 | 18.4R38 |
2WD total weight (kg) | – | – | – | – |
4WD total weight (kg) | 5080 | 5130 | 5450 | 5700 |
Total height with cabin (cm) | 281 | 281 | 278 | 281 |
Total length (cm) | 459 | 459 | 426 | 432 |
Total width (cm) | 275 | 275 | 275 | 275 |
Fuel tank capacity (l) | 240 | 240 | 240 | 240 |
Cabin sound level (dB) | 75 | 75 | 75 | 75 |
