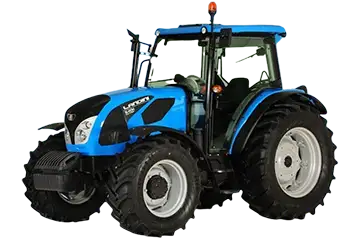

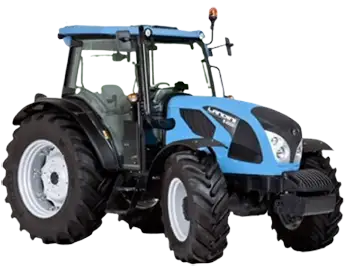

Technical specifications of the agricultural tractor Landini 5.090D/5.100D/5.110D:
Advertisement
Model | Landini 5.090D | Landini 5.100D | Landini 5.110D |
Years of production | 2012-15 | 2012-15 | 2012-15 |
Engine model / type | 854E-E34TA | 854E-E34TA | 854E-E34TA |
Number of cylinders / turbocharging | 4TA | 4TA | 4TA |
Engine displacement (cm3) | 3400 | 3400 | 3400 |
Piston dimension / stroke (mm) | 99×110 | 99×110 | 99×110 |
Maximum engine power (hp) / rpm | 85/2200 | 95/2200 | 102/2200 |
Torque (Nm) / rpm | 354/1400 | 395/1400 | 420/1400 |
Number of gears (front + rear) | 24+12 | 24+12 | 24+12 |
Number of synchronized gears (front+rear) | 24+12 | 24+12 | 24+12 |
Advertisement
Speed-Shift | – | – | – |
Type of reverse | mech | mech | mech |
Driving speed (km/h) | 2,0-40 | 2,0-40 | 2,0-40 |
Max Driving speed (km/h) | – | – | – |
Hydraulic pump capacity (L/min) | 52 | 52 | 52 |
3-Point Hitch control | mech | mech | mech |
3-point hitch max load (kg) | 4350 | 4350 | 4350 |
PTO speed (rpm) | 540/750 | 540/750 | 540/750 |
Disc brake type (dry / wet) | – | – | – |
Type of control of the braking system | – | – | – |
Turning radius 2WD (m) | – | – | – |
Turning radius 4WD (m) | 8,2 | 8,2 | 8,2 |
Advertisement
Front wheel 2WD | – | – | – |
Front wheel 4WD | – | – | – |
Rear wheel 2WD | – | – | – |
Rear wheel 4WD | – | – | – |
2WD total weight (kg) | – | – | – |
4WD total weight (kg) | 3480 | 3480 | 3480 |
Total height with cabin (cm) | 249 | 249 | 249 |
Total length (cm) | 414 | 414 | 414 |
Total width (cm) | 234/232 | 234/232 | 234/232 |
Fuel tank capacity (l) | 102 | 102 | 102 |
Cabin sound level (dB) | – | – | – |
