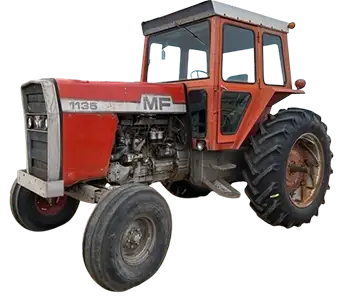

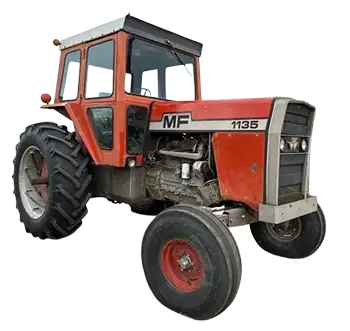

Technical specifications of the agricultural tractor Massey Ferguson 1135/1155/1200/1250/1500/1800:
Advertisement
| Model | Massey Ferguson 1135 | Massey Ferguson 1155 | Massey Ferguson 1200 | Massey Ferguson 1250 | Massey Ferguson 1500 | Massey Ferguson 1800 |
| Years of production | 74-78 | 74-78 | 72-79 | 80-82 | 71-75 | 71-75 |
| Engine model / type | AT6.3541 | AV8.540 | A6.354 | A6.354.4 | CAT 3150 | CAT 3160 |
| Number of cylinders / turbocharging | 6T | V8 | 6 | 6 | V8 | V8 |
| Engine displacement (cm3) | 5797 | 8849 | 5797 | 5797 | 9390 | 10420 |
| Piston dimension / stroke (mm) | 98,4×127 | 107,9×120,6 | 98,47×127 | 98,47×127 | 114,3×114,3 | 114,3×127 |
| Maximum engine power (hp) / rpm | 135/2200 | 155/2200 | 105/2400 | 112/2500 | 185/3000 | 210/2800 |
| Torque (Nm) / rpm | 463/1600 | 519/1300 | 358/1400 | 370/1100 | 524/1600 | 648/1400 |
| Number of gears (front + rear) | 12+4 | 12+4 | 8+2/12+4 | 12+4 | 12+4 | 12+4 |
| Number of synchronized gears (front+rear) | – | – | – | – | – | – |
Advertisement
| Speed-Shift | hydr | hydr | hydr | – | – | – |
| Type of reverse | mech | – | mech | – | mech | – |
| Driving speed (km/h) | 3,4-27,0 | 3,4-27,0 | 1,9-28,0 | 2,0-29,0 | 3,7-34,2 | 3,3-31,9 |
| Max Driving speed (km/h) | – | – | – | – | – | – |
| Hydraulic pump capacity (L/min) | 76 | 76 | 34,6/72,7 | 44,5 | 94,6 | 94,6 |
| 3-Point Hitch control | mech | mech | mech | mech | mech | mech |
| 3-point hitch max load (kg) | 3265 | 3265 | 3400 | 4375 | – | – |
| PTO speed (rpm) | 540/1000 | 540/1000 | 1000 | 1000 | 1000 | 1000 |
| Disc brake type (dry / wet) | – | – | – | – | – | – |
| Type of control of the braking system | hydr | hydr | hydr | hydr | hydr | hydr |
| Turning radius 2WD (m) | 8,54 | 8,54 | – | – | – | – |
| Turning radius 4WD (m) | – | – | 9,18 | 9,18 | 10,36 | 10,36 |
Advertisement
| Front wheel 2WD | 11,00-16 | 11,00-16 | – | – | – | – |
| Front wheel 4WD | – | – | 16,9-34 | 16,9-34 | 18,4-38 | 18,4-38 |
| Rear wheel 2WD | 18,4-38 | 20,8-38 | – | – | – | – |
| Rear wheel 4WD | – | – | 16,9-34 | 16,9-34 | 18,4-38 | 18,4-38 |
| 2WD total weight (kg) | 5540 | 5870 | – | – | – | – |
| 4WD total weight (kg) | – | – | 5156 | 6202 | 7200 | 7300 |
| Total height with cabin (cm) | 287 | 287 | 291 | 295 | 350 | 350 |
| Total length (cm) | 451 | 451 | 507 | 517 | 620 | 620 |
| Total width (cm) | 277 | 277 | 256 | 256 | 304 | 304 |
| Fuel tank capacity (l) | 208 | 208 | 318 | 318 | 455 | 455 |
| Cabin sound level (dB) | 89 | 87 | – | – | 88,5 | 89,5 |
