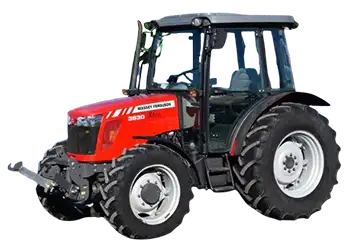

Massey Ferguson 3630/3640/3650 ⚙️ Specs

Specs of agricultural tractor Massey Ferguson 3630/3640/3650 :

Model Massey Ferguson 3630 Massey Ferguson 3640 Massey Ferguson 3650
Years of production 2013- 2013- 2013-
Engine model / type 33CTA 33CTA 33CTA
Number of cylinders / turbocharging 3TI 3TI 3TI
Engine displacement (cm3) 3300 3300 3300
Piston dimension / stroke (mm) 108×120 108×120 108×120
Maximum engine power (hp) / rpm 76/2200 84/2200 84/2200
Torque (Nm) / rpm 315/1400 345/1400 345/1400
Number of gears (front + rear) 24+24/24+12 24+24/24+12 24+24/24+12
Number of synchronized gears (front+rear) 24+24/24+12 24+24/24+12 24+24/24+12
Speed-Shift mech/hydr mech/hydr mech/hydr
Type of reverse mech/hydr mech/hydr mech/hydr
Driving speed (km/h) 0,5-40 0,5-40 0,5-40
Max Driving speed (km/h) 40 40 40
Hydraulic pump capacity (L/min) 48 (62) 62 62
3-Point Hitch control mech mech mech
3-point hitch max load (kg) 2500 2500 2500 (3000)
PTO speed (rpm) 540/750 540/750 540/750
Disc brake type (dry / wet)
Type of control of the braking system
Turning radius 2WD (m)
Turning radius 4WD (m) 7 7 7
Front wheel 2WD 7.50-16 7.50-16 7.50-16
Front wheel 4WD 11.2R24 11.2R24 11.2R24
Rear wheel 2WD 16.9R30 16.9R30 16.9R30
Rear wheel 4WD 16.9R30 16.9R30 16.9R30
2WD total weight (kg) 3140 3140 3140
4WD total weight (kg) 3260 3260 3260
Total height with cabin (cm) 251 251 251
Total length (cm) 374 374 374
Total width (cm) 208 208 208
Fuel tank capacity (l) 110 110 110
Cabin sound level (dB) 80 80 80

Add an opinion about Massey Ferguson 3630/3640/3650:

Name
Model
Rating
Review Content

The company Massey Ferguson was created by a merger of two brands, Ferguson and Massey-Harris. Initially, after the merger of the two companies, for six years used a longer company name, and only since 1958 has been shortened to Massey Ferguson. Despite the conflicts between the two companies, today Massey Ferguson is one of the largest manufacturers of agricultural machinery in the world.
