Massey Ferguson 6499

Massey Ferguson 6485, 6490, 6495, 6497, 6499 – specs, opinions & photos

Looking for information about agricultural tractors Massey Ferguson 6485, 6490, 6495, 6497, 6499? In this article, you'll find answers to questions such as:

  • How much horsepower does each model have?
  • What is the engine capacity of these models?
  • What is the hydraulic pump output for each one?
  • What is the PTO speed of these tractors?

With a spec sheet presented in table form, comparing the tractors is quick and easy, and user reviews will help you make the right choice.

Table of contents:

Technical specifications of the agricultural tractors Massey Ferguson 6485, 6490, 6495, 6497, 6499:

Massey Ferguson 6485
Massey Ferguson 6490
Massey Ferguson 6495
Massey Ferguson 6497
Massey Ferguson 6499

Massey Ferguson 6485

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 155/2200
  • Number of gearbox speeds (forward + reverse): 32+32
  • Maximum speed (km/h): 40
  • Fuel tank capacity (L): 380

Massey Ferguson 6490

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 170/2200
  • Number of gearbox speeds (forward + reverse): 32+32
  • Maximum speed (km/h): 40
  • Fuel tank capacity (L): 380

Massey Ferguson 6495

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 185/2200
  • Number of gearbox speeds (forward + reverse): 32+32
  • Maximum speed (km/h): 40
  • Fuel tank capacity (L): 380

Massey Ferguson 6497

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 185/2200
  • Number of gearbox speeds (forward + reverse): 32+32
  • Maximum speed (km/h): 40
  • Fuel tank capacity (L): 380

Massey Ferguson 6499

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 215/2200
  • Number of gearbox speeds (forward + reverse): 32+32
  • Maximum speed (km/h): 40
  • Fuel tank capacity (L): 380

For details and a comparison of the tractors, see the technical sheet below.

Advertisement


Technical Data Sheet for Massey Ferguson 6485, 6490, 6495, 6497, 6499 Farm tractors:

Comparison of technical parameters of agricultural tractors
Model Massey Ferguson 6485 Massey Ferguson 6490 Massey Ferguson 6495 Massey Ferguson 6497 Massey Ferguson 6499
Years of production – – – – –
Engine designation/type 66ETA 66ETA 66ETA 66ETA 74ETA
Number of cylinders / Turbo / Intercooler 6TI 6TI 6TI 6TI 6TI
Engine displacement (cm³) 6598 6598 6598 6598 7368
Piston diameter / Stroke (mm) 108×120 108×120 108×120 108×120 108×134
Maximum engine power (HP) / at RPM 155/2200 170/2200 185/2200 185/2200 215/2200
Torque (Nm) / at RPM 650/1400 720/1400 780/1400 780/1400 864/1400
Number of gearbox speeds (forward + reverse) 32+32 32+32 32+32 32+32 32+32
Number of synchronized gears (forward + reverse) 32+32 32+32 32+32 32+32 32+32

See also: Catalog of filters for Massey Ferguson tractors

Advertisement

Fast gearbox / Power shift 4 4 4 4 4
Reverser type hydr hydr hydr hydr hydr
Speed range (km/h) 2,4-43 2,4-43 2,4-43 2,4-43 2,4-43
Maximum speed (km/h) 40 40 40 40 40
Hydraulic pump capacity (L/min) 110 (100) 110 (100) 110 (100) 110 110
Rear three-point hitch (TUV) control type ehr ehr ehr ehr ehr
Maximum rear three-point hitch (TUV) lift capacity (kg) 9100 9100 9100 9100 9100
Power take-off (PTO) speed (RPM) 540/1000 540/1000 540/1000 540/1000 540/1000
Type of disc brake (dry/wet) – – – – –
Brake system control type – – – – –
Turning radius 2WD (m) – – – – –
Turning radius 4WD (m) 11,4 11,4 11,4 11,4 11,4

Advertisement

Front tire size 2WD – – – – –
Front tire size 4WD 480/70R28 480/70R28 420/85R30 420/85R30 480/70R30
Rear tire size 2WD – – – – –
Rear tire size 4WD 580/70R38 580/70R38 520/85R42 520/85R42 620/70R42
Total weight 2WD (kg) – – – – –
Total weight 4WD (kg) 6550 6590 6770 7570 8050
Total height with cabin (cm) 306 306 310 310 310
Total length (cm) 500 500 500 507 507
Total width (cm) 300 300 300 300 300
Fuel tank capacity (L) 380 380 380 380 380
Cabin noise level (dB) 71 71 71 71 71

Fuel consumption and user reviews of tractors Massey Ferguson 6485, 6490, 6495, 6497, 6499:

Add your opinion:

Easy work 0.0 l/h
Medium work 0.0 l/h
Hard work 0.0 l/h

Opinions posted:

No opinions.

Average fuel consumption:

Easy - l/h
Medium - l/h
Hard - l/h

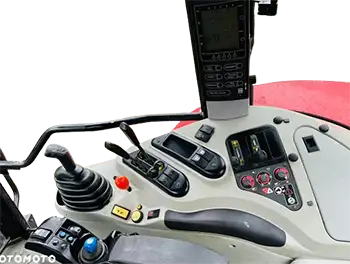

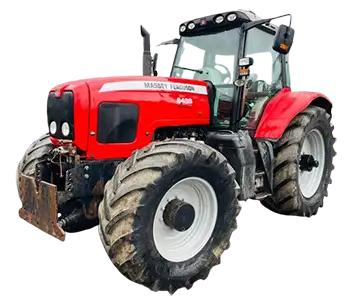

Massey Ferguson 6485, 6490, 6495, 6497, 6499 Gallery:
