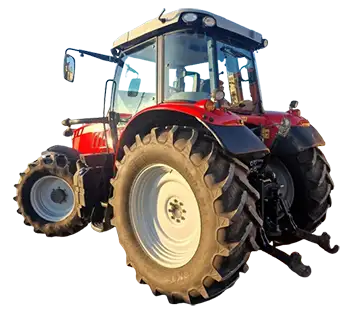

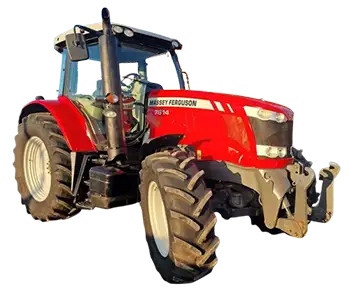

Technical specifications of the agricultural tractor Massey Ferguson 7614/7615/7616/7618/7619:
Advertisement
| Model | Massey Ferguson 7614 | Massey Ferguson 7615 | Massey Ferguson 7616 | Massey Ferguson 7618 | Massey Ferguson 7619 |
| Years of production | 2012-15 | 2012-15 | 2012-15 | 2012-15 | 2012-15 |
| Engine model / type | 66AWI-4V | 66AWI-4V | 66AWI-4V | 66AWI-4V | 66AWI-4V |
| Number of cylinders / turbocharging | 6TI | 6TI | 6TI | 6TI | 6TI |
| Engine displacement (cm3) | 6598 | 6598 | 6598 | 6598 | 6598 |
| Piston dimension / stroke (mm) | 108×120 | 108×120 | 108×120 | 108×120 | 108×120 |
| Maximum engine power (hp) / rpm | 130/2100 | 140/2100 | 150/2100 | 165/2100 | 170/2100 |
| Torque (Nm) / rpm | – | – | – | – | – |
| Number of gears (front + rear) | 16+16 | 16+16 | 24+24 | 24+24 | 24+24 |
| Number of synchronized gears (front+rear) | 16+16 | 16+16 | 24+24 | 24+24 | 24+24 |
Advertisement
| Speed-Shift | 4 | 4 | 6 | 6 | 6 |
| Type of reverse | hydr | hydr | hydr | hydr | hydr |
| Driving speed (km/h) | 2,0-43 | 2,0-43 | 1,6-43 | 1,6-43 | 1,6-43 |
| Max Driving speed (km/h) | 43 | 43 | 43/50 | 43/50 | 43/50 |
| Hydraulic pump capacity (L/min) | 110 (58) | 110 (58) | 110 | 110 | 110 (150) |
| 3-Point Hitch control | ehr | ehr | ehr | ehr | ehr |
| 3-point hitch max load (kg) | 7100 | 7100 | 7100 | 8100 | 9300 |
| PTO speed (rpm) | -8100 | – | – | – | – |
| Disc brake type (dry / wet) | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
| Type of control of the braking system | – | – | – | – | – |
| Turning radius 2WD (m) | – | – | – | – | – |
| Turning radius 4WD (m) | 9,6 | 9,6 | 9,6 | 9,6 | 10,3 |
Advertisement
| Front wheel 2WD | – | – | – | – | – |
| Front wheel 4WD | 14.9R28 | 14.9R28 | 16.9R28 | 480/70R28 | 16.9R30 |
| Rear wheel 2WD | – | – | – | – | – |
| Rear wheel 4WD | 18.4R38 | 18.4R38 | 20.8R38 | 580/70R38 | 20.8R42 |
| 2WD total weight (kg) | – | – | – | – | – |
| 4WD total weight (kg) | 6000 | 6400 | 6500 | 6600 | 8200 |
| Total height with cabin (cm) | 303 | 303 | 303 | 303 | 317 |
| Total length (cm) | 479 | 479 | 479 | 479 | 500 |
| Total width (cm) | 288 | 288 | 288 | 288 | 300 |
| Fuel tank capacity (l) | 310+AB30 | 310+AB30 | 310+AB30 | 310+AB30 | 430+AB40 |
| Cabin sound level (dB) | 70 | 70 | 70 | 70 | 70 |
