Steyr 9100 M

Steyr 9080 M, 9090 M, 9100 M – specs, opinions & photos

Looking for information about agricultural tractors Steyr 9080 M, 9090 M, 9100 M? In this article, you'll find answers to questions such as:

  • How much horsepower does each model have?
  • What is the engine capacity of these models?
  • What is the hydraulic pump output for each one?
  • What is the PTO speed of these tractors?

With a spec sheet presented in table form, comparing the tractors is quick and easy, and user reviews will help you make the right choice.

Table of contents:

Technical specifications of the agricultural tractors Steyr 9080 M, 9090 M, 9100 M:

Steyr 9080 M
Steyr 9090 M
Steyr 9100 M

Steyr 9080 M

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 82/2300
  • Number of gearbox speeds (forward + reverse): 16+8/16+16
  • Maximum speed (km/h): 40
  • Fuel tank capacity (L): 100

Steyr 9090 M

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 89/2300
  • Number of gearbox speeds (forward + reverse): 16+8/16+16
  • Maximum speed (km/h): 40
  • Fuel tank capacity (L): 100 (150)

Steyr 9100 M

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 97/2300
  • Number of gearbox speeds (forward + reverse): 16+8/16+16
  • Maximum speed (km/h): 40
  • Fuel tank capacity (L): 100 (150)

For details and a comparison of the tractors, see the technical sheet below.

Advertisement


Technical Data Sheet for Steyr 9080 M, 9090 M, 9100 M Agricultural tractors:

Comparison of technical parameters of agricultural tractors
Model Steyr 9080 M Steyr 9090 M Steyr 9100 M
Years of production – – –
Engine designation/type Sisu 44DT Sisu 44DT Sisu 44DT
Number of cylinders / Turbo / Intercooler 4T 4T 4T
Engine displacement (cm³) 4397 4397 4397
Piston diameter / Stroke (mm) 108×120 108×120 108×120
Maximum engine power (HP) / at RPM 82/2300 89/2300 97/2300
Torque (Nm) / at RPM 310/1400 335/1400 367/1400
Number of gearbox speeds (forward + reverse) 16+8/16+16 16+8/16+16 16+8/16+16
Number of synchronized gears (forward + reverse) 16+8/16+16 16+8/16+16 16+8/16+16

Advertisement

Fast gearbox / Power shift hydr hydr hydr
Reverser type mech mech mech
Speed range (km/h) 2,3-38,5 2,3-38,5 2,3-38,5
Maximum speed (km/h) 40 40 40
Hydraulic pump capacity (L/min) 50 (86) 50 (86) 50 (86)
Rear three-point hitch (TUV) control type ehr ehr ehr
Maximum rear three-point hitch (TUV) lift capacity (kg) 4900 4900 4900
Power take-off (PTO) speed (RPM) 540/1000 540/1000 540/1000
Type of disc brake (dry/wet) – – –
Brake system control type – – –
Turning radius 2WD (m) 8,8 – –
Turning radius 4WD (m) 9,6 9,6 9,6

Advertisement

Front tire size 2WD 9.00-16 – –
Front tire size 4WD 14.9R24 14.9R24 14.9R24
Rear tire size 2WD 18.4R34 – –
Rear tire size 4WD 18.4R34 18.4R34 18.4R34
Total weight 2WD (kg) 3750 – –
Total weight 4WD (kg) 3950 3950 3950
Total height with cabin (cm) 269 269 (258) 269 (258)
Total length (cm) 398/422 422 422
Total width (cm) 242/248 248 248
Fuel tank capacity (L) 100 100 (150) 100 (150)
Cabin noise level (dB) 72 72 72

Fuel consumption and user reviews of tractors Steyr 9080 M, 9090 M, 9100 M:

Add your opinion:

Easy work 0.0 l/h
Medium work 0.0 l/h
Hard work 0.0 l/h

Opinions posted:

No opinions.

Average fuel consumption:

Easy - l/h
Medium - l/h
Hard - l/h

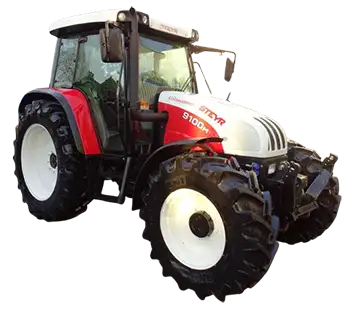

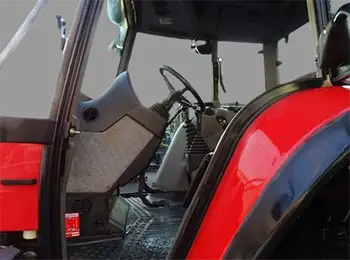

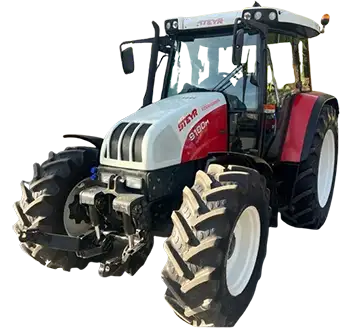

Steyr 9080 M, 9090 M, 9100 M Gallery:
