Technical specifications of the Claas Dominator 38 Combine Harvester:
Claas Dominator 38 Combine Harvester was manufactured from 1981 to 1987. It is equipped with a Perkins 4.236 engine with a capacity of 3860 cm³ and a power of 65 HP. The engine has four cylinders. The combine has a mechanical gearbox with three gears, allowing speeds from 1.6 to 21.9 km/h. The working width of the cutting unit is 270 cm, and inside the combine, there are three straw walkers. The combine’s dimensions are 860 cm in length, 300 cm in width, and 320 cm in height without the cab, with a weight of 5100 kg. The width without the cutting attachment is 293 cm. The total height with the cab is 365 cm, and the weight with the cab is 5450 kg. The grain tank has a capacity of 21 hectoliters. The size of the front wheels is 18.4-26, and the rear wheels are 11.5/80-15. The fuel tank capacity is 200 liters.
Advertisement
Data sheet for Claas Dominator 48, 38, 58, 68 combine harvesters:
| Model | Claas Dominator 38 | Claas Dominator 48 | Claas Dominator 58 | Claas Dominator 68 |
| Years of production | 1981-87 | 1981-87 | 1982-87 | 1982-87 |
| Engine manufacturer | Perkins | Perkins | Perkins | Perkins |
| Engine model / type | 4.236 | 4.236 | 4.248 | 6.3544 |
| Engine displacement (cm3) | 3860 | 3860 | 4060 | 5797 |
| Number of cylinders / turbocharging | 4 | 4 | 4 | 6 |
| Engine rated power (hp) | 65 | 75 | 85 | 100 |
| Fuel tank capacity (l) | 200 | 200 | 200 | 200 |
| Type of drive transmission | mech | mech | mech | mech |
| Number of gears (front + rear) | 3 | 3 | 3 | 3 |
| Driving speed min-max (km/h) | 1,6-21,9 | 1,6-21,9 | 1,1-19 | 1,9-21 |
Advertisement
| Cutting unit working width (cm) | 270 | 300 | 360 | 390 |
| Number of straw walkers | 3 | 4 | 4 | 4 |
| Total length (cm) | 860 | 864 | 909 | 943 |
| Total width (cm) | 300 | 338 | 410 | 440 |
| Width without cutting attachment (cm) | 293 | 293 | 293 | 300 |
| Height without cabin (cm) | 320 | 328 | 358 | – |
| Total height with cabin (cm) | 365 | 370 | 379 | – |
| Weight without cabin (kg) | 5100 | 5600 | – | – |
| Weight with cabin (kg) | 5450 | 5950 | 6400 | 7000 |
| Grain tank capacity (hl) | 21 | 24 | 27 | 32 |
| Front wheel size | 18,4-26 | 18,4-26 | 18,4-26 | 23,1-26 |
| Rear wheel size | 11,5/80-15 | 12,5-18 | 11,5/80-15 | 12,5-18 |
Advertisement
Add your opinion and share the fuel consumption of the combine Claas Dominator 38, 48, 58, 68:

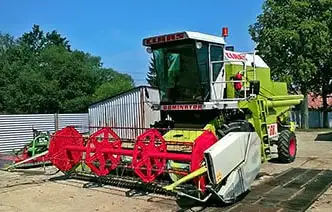

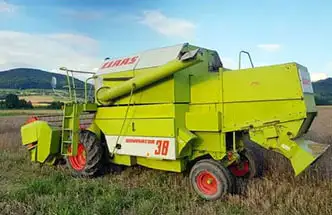

Claas Dominator 38, 48, 58, 68 Gallery:
