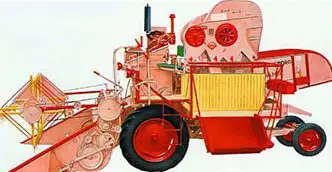

Technical specifications of the Dronningborg D880 Combine Harvester:
Dronningborg D-880 Combine Harvester was produced from 1959 to 1976. It is equipped with a Perkins 4.107 engine with a capacity of 1760 cm³ and a power output of 46 HP. The engine has four cylinders. The combine features a mechanical transmission with two gears, allowing speeds from 1.8 to 18 km/h. The cutting unit has a working width of 229 cm, and inside the combine, there are five straw walkers. The dimensions of the combine are 600 cm in length, 300 cm in width, and 300 cm in height without the cab. The weight without the cab is 2800 kg. The grain tank has a capacity of 14 hectoliters. The front wheels are sized 11.2/10-28, and the rear wheels are 5.00-16. The fuel tank has a capacity of 55 liters.
Advertisement
Data sheet for Dronningborg D1200, D880, D900, D1500, D1600, D1800 combine harvesters:
Model | Dronningborg D-880 | Dronningborg D-900 | Dronningborg D-1200 | Dronningborg D-1500 | Dronningborg D-1600 | Dronningborg D-1800 |
Years of production | 1959-76 | 1959-76 | 1969-76 | 1965-73 | 1973-76 | 1968-72 |
Engine manufacturer | Perkins | Perkins | Perkins | Perkins | Perkins | Perkins |
Engine model / type | 4.107 | 4.154 | 4.236 | 4.236 | 6.354 | 6.354 |
Engine displacement (cm3) | 1760 | 2524 | 3860 | 3860 | 5797 | 5797 |
Number of cylinders / turbocharging | 4 | 4 | 4 | 4 | 6 | 6 |
Engine rated power (hp) | 46 | 56 | 70 | 78 | 100 | 105 |
Fuel tank capacity (l) | 55 | 80 | 160 | 160 | 160 | 160 |
Type of drive transmission | mech | mech | mech | mech | mech | mech |
Number of gears (front + rear) | 2 | 2 | 3 | 3 | 3 | 3 |
Driving speed min-max (km/h) | 1,8-18 | 1,8-18 | 1,2-20 | 1,2-20 | 1,2-20 | 1,2-20 |
Advertisement
Cutting unit working width (cm) | 229 | 229 | 265 | 312 | 367 | 372 |
Number of straw walkers | 5 | 5 | 4 | 4 | 4 | 4 |
Total length (cm) | 600 | 641 | 710 | 760 | 760 | 760 |
Total width (cm) | 300 | 304 | 306 | 360 | 411 | 411 |
Width without cutting attachment (cm) | – | – | – | – | – | – |
Height without cabin (cm) | 300 | 301 | 300 | 300 | 300 | 300 |
Total height with cabin (cm) | – | – | – | – | – | – |
Weight without cabin (kg) | 2800 | 3250 | 4450 | 5000 | 5000 | 5700 |
Weight with cabin (kg) | – | – | – | – | – | – |
Grain tank capacity (hl) | 14 | 14 | 21 | 24 | 22 | 24 |
Front wheel size | 11,2/10-28 | 14,9/13-24 | 14,9-24 | 14,9-26 | 16,9-26 | 18,4-26 |
Rear wheel size | 5,00-16 | 8,50-12 | 8,50-12 | 10,00-12 | 11,00-12 | 11,00-12 |
Advertisement
Add your opinion and share the fuel consumption of the combine Dronningborg D-880, D-900, D-1200, D-1500, D-1600, D-1800:

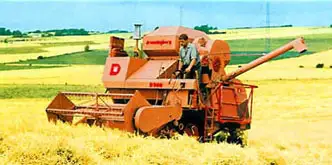

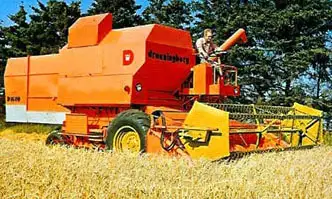

Dronningborg D-880, D-900, D-1200, D-1500, D-1600, D-1800 Gallery:
