Fendt 8370 P, 8400 P, 8380 P, 8410 P ⚙️ Specs

Technical Specifications of the Fendt 8370 P Combine Harvester:

Fendt 8370 P Combine Harvester has been produced since 2013. It is equipped with an Agco Power 84 AWI engine with a capacity of 8400 cm³ and a power output of 348 HP (379 HP with additional boost). The engine has six cylinders with turbocharging and an intercooler. The combine features a hydrostatic transmission with four gears. The cutting unit has a working width of 680 cm, and inside the combine, there are eight straw walkers. The dimensions of the combine are 827 cm in length, 349 cm in width without the cutting unit, and 400 cm in height with the cab. The grain tank has a capacity of 95 hectoliters. The front wheels are sized 650/75R32, and the rear wheels are 500/60-26.5. The fuel tank has a capacity of 750 liters with the AB103 additive.

Advertisement

Data sheet for Fendt 8370 P, 8400 P, 8380 P, 8410 P combine harvesters:

Model Fendt 8370 P Fendt 8400 P Fendt 8380 P Fendt 8410 P
Years of production 2013- 2013-
Engine manufacturer Agco Power Agco Power Agco Power Agco Power
Engine model / type 84 AWI 84 AWI 84 AWF 84 AWF
Engine displacement (cm3) 8400 8400 8400 8400
Number of cylinders / turbocharging 6TI 6TI 6TI 6TI
Engine rated power (hp) 348(379) 404 379 404
Fuel tank capacity (l) 750+AB103 750+AB103 1000+AB120 1000+AB120
Type of drive transmission hydr hydr hydr hydr
Number of gears (front + rear) 4 4 4 4
Driving speed min-max (km/h)

Advertisement

Cutting unit working width (cm) 680 770 680 770
Number of straw walkers 8 8 8 8
Total length (cm) 827 827 995 995
Total width (cm)
Width without cutting attachment (cm) 349 388 380 380
Height without cabin (cm)
Total height with cabin (cm) 400 400 400 400
Weight without cabin (kg)
Weight with cabin (kg)
Grain tank capacity (hl) 95 105 (95) 105 105
Front wheel size 650/75R32 800/65R32 800/65R32 800/65R32
Rear wheel size 500/60-26,5 500/60-26,5 500/70-24 500/70-24

Advertisement

Add an opinion about Fendt 8370 P/8400 P/8380 P/8410 P:

Name
Model
Rating
Review Content


Fendt 8370 P/8400 P/8380 P/8410 P GALLERY:

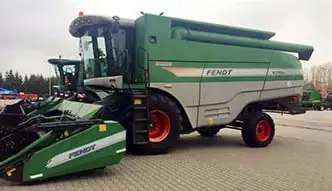

Fendt 8370 Specs

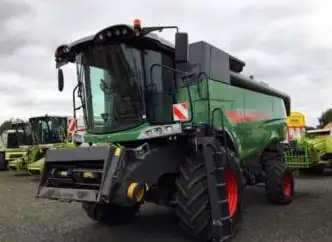

Fendt 8380 Specifications

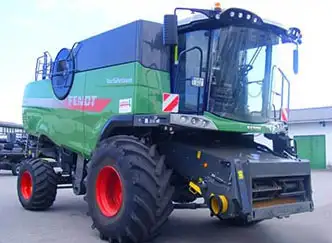

Fendt 8410 Opinion
