Technical specifications of the FiatAgri Laverda 3850 Combine Harvester:
The FiatAgri Laverda 3850 Combine Harvester was produced from 1985 to 1992. It is equipped with an Iveco 8361-SI 10 engine with a displacement of 8102 cm³, with turbocharging, generating a power of 180 HP. It has a fuel tank capacity of 320 liters and a mechanical transmission with four gears, allowing speeds from 1.4 to 20.0 km/h. The working width of the cutting unit is 480 cm, and the interior of the combine harvester includes six straw walkers. The overall dimensions are 962 cm in length, 364 cm in width without the cutting attachment, and 387/401 cm in height with the cab. The weight of the combine with the cab is 9645 kg. The grain tank capacity is 65 hectoliters. The FiatAgri Laverda 3850 combine harvester is equipped with front wheels sized 23.1-26 and rear wheels sized 12.5-18.
Advertisement
Data sheet for FiatAgri Laverda 3890, 3850 combine harvesters:
| Model | FiatAgri Laverda 3850 | FiatAgri Laverda 3890 |
| Years of production | 1985-92 | 1986-92 |
| Engine manufacturer | Iveco | Iveco |
| Engine model / type | 8361-SI 10 | 8361-SI 10 |
| Engine displacement (cm3) | 8102 | 8102 |
| Number of cylinders / turbocharging | 6T | 6T |
| Engine rated power (hp) | 180 | 200 |
| Fuel tank capacity (l) | 320 | 320 |
| Type of drive transmission | mech | hydr |
| Number of gears (front + rear) | 4 | 4 |
| Driving speed min-max (km/h) | 1,4-20,0 | 0-27,6 |
Advertisement
| Cutting unit working width (cm) | 480 | 540 |
| Number of straw walkers | 6 | 6 |
| Total length (cm) | 962 | 962 |
| Total width (cm) | – | – |
| Width without cutting attachment (cm) | 364 | 364 |
| Height without cabin (cm) | – | – |
| Total height with cabin (cm) | 387/401 | 387/401 |
| Weight without cabin (kg) | – | – |
| Weight with cabin (kg) | 9645 | 10510 |
| Grain tank capacity (hl) | 65 | 65 |
| Front wheel size | 23.1-26 | 23.1-30 |
| Rear wheel size | 12.5-18 | 12.5-18 |
Advertisement
Add your opinion and share the fuel consumption of the combine FiatAgri Laverda 3850, 3890:

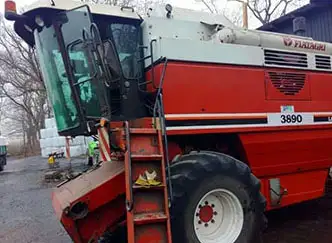

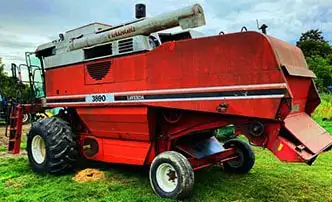

FiatAgri Laverda 3850, 3890 Gallery:
