Technical specifications of the John Deere MD 260 S Combine Harvester:
The John Deere MD 260 S combine harvester was produced between 1954 and 1957. It is equipped with an MB OM312 engine with a displacement of 4580 cm³, without turbocharging, generating 68 HP. It has a mechanical transmission with two speeds, allowing for a driving speed range from 1.8 to 15.5 km/h. The cutting unit’s working width is 260 cm, and inside the combine, there are four straw walkers. The overall dimensions are 797 cm in length, 317 cm in width, and 320 cm in height without the cabin. The combine’s weight without the cabin is 4800 kg. The grain tank capacity is 15.5 hectoliters. The John Deere MD 260 S combine harvester is equipped with front wheels of size 13-26 and rear wheels of size 8.50-12.
Advertisement
Data sheet for John Deere MD 260 S, MD 18 S, MD 25 S, MD 35 S combine harvesters:
| Model | John Deere MD 260 S | John Deere MD 18 S | John Deere MD 25 S | John Deere MD 35 S |
| Years of production | 1954-57 | 1956-63 | 1956-60 | 1958-63 |
| Engine manufacturer | MB | MB | Perkins | Perkins |
| Engine model / type | OM312 | OM636 | P4 | L4 |
| Engine displacement (cm3) | 4580 | 1767 | 3146 | 4425 |
| Number of cylinders / turbocharging | 6 | 4 | 4 | 4 |
| Engine rated power (hp) | 68 | 34 | 50 | 62 |
| Fuel tank capacity (l) | – | – | – | – |
| Type of drive transmission | mech | mech | mech | mech |
| Number of gears (front + rear) | 2 | 2 | 2 | 2 |
| Driving speed min-max (km/h) | 1,8-15,5 | 1,6-14,9 | 1,6-15 | 1,8-15,5 |
Advertisement
| Cutting unit working width (cm) | 260 | 182 | 230 | 260 |
| Number of straw walkers | 4 | 3 | 4 | 4 |
| Total length (cm) | 797 | 780 | 808 | 792 |
| Total width (cm) | 317 | 250 | 266 | 312 |
| Width without cutting attachment (cm) | – | – | – | – |
| Height without cabin (cm) | 320 | 300 | 306 | 320 |
| Total height with cabin (cm) | – | – | – | – |
| Weight without cabin (kg) | 4800 | 2850 | 3130 | 4930 |
| Weight with cabin (kg) | – | – | – | – |
| Grain tank capacity (hl) | 15,5 | 8,5 | 15 | 15,5 |
| Front wheel size | 13-26 | 13-26 | 13-26 | 13-26 |
| Rear wheel size | 8,50-12 | 7.00-12 | 7.00-12 | 8.50-12 |
Advertisement
Add your opinion and share the fuel consumption of the combine John Deere MD 260 S, MD 18 S, MD 25 S, MD 35 S:

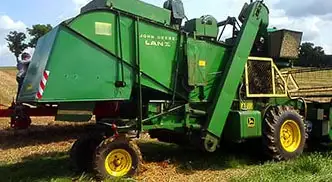

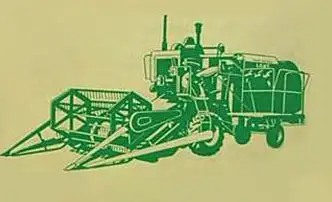

John Deere MD 260 S, MD 18 S, MD 25 S, MD 35 S Gallery:
