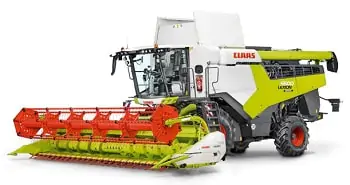

Technical specifications of the Claas Lexion 5300 Combine Harvester:
The Claas Lexion 5300 combine harvester has been in production since 2020. It is equipped with a Mercedes OM936LA engine with a capacity of 7698 cm³ and a power output of 313 HP. The engine features six cylinders with turbocharging and an intercooler. The combine harvester has a hydrostatic transmission with two gears, allowing for speeds ranging from 0 to 25 km/h. The working width of the cutting unit ranges from 546 to 760 cm, and the interior of the combine features five straw walkers. The dimensions of the combine are 940 cm in length, a width ranging from 588 to 802 cm, and 400 cm in height with the cabin. The width without the cutting attachment is 363 cm, and the weight with the cabin is 16750 kg. The grain tank has a capacity of 90 or 100 hectoliters. The size of the front wheels is 900/60 R38, and the rear wheels are 620/70 R26. The fuel tank capacity is 950 liters.
Advertisement
Data sheet for Claas Lexion 5300, 5400, 5500 combine harvesters:
| Model | Claas Lexion 5300 | Claas Lexion 5400 | Claas Lexion 5500 |
| Years of production | 2020- | 2020- | 2020- |
| Engine manufacturer | Mercedes | Mercedes | Mercedes |
| Engine model / type | OM936LA | OM936LA | OM470LA |
| Engine displacement (cm3) | 7698 | 7698 | 10677 |
| Number of cylinders / turbocharging | 6TI | 6TI | 6TI |
| Engine rated power (hp) | 313 | 354 | 408 |
| Fuel tank capacity (l) | 950 | 950 | 950 |
| Type of drive transmission | hydr | hydr | hydr |
| Number of gears (front + rear) | 2 | 2 | 2 |
| Driving speed min-max (km/h) | 0-25 | 0-40 | 0-40 |
Advertisement
| Cutting unit working width (cm) | 546-760 | 546-760 | 546-760 |
| Number of straw walkers | 5 | 5 | 5 |
| Total length (cm) | 940 | 940 | 940 |
| Total width (cm) | 588-802 | 588-802 | 588-802 |
| Width without cutting attachment (cm) | 363 | 363 | 363 |
| Height without cabin (cm) | – | – | – |
| Total height with cabin (cm) | 400 | 400 | 400 |
| Weight without cabin (kg) | – | – | – |
| Weight with cabin (kg) | 16750 | 16750 | 16750 |
| Grain tank capacity (hl) | 90/100 | 100 | 100/110 |
| Front wheel size | 900/60 R38 | 900/60 R38 | 900/60 R38 |
| Rear wheel size | 620/70 R26 | 620/70 R26 | 620/70 R26 |
Advertisement
Add your opinion and share the fuel consumption of the combine Claas Lexion 5300, 5400, 5500:
Claas Lexion 5300, 5400, 5500 Gallery:
