Technical Specifications of the FiatAgri Laverda M 300 Combine Harvester:
FiatAgri Laverda M 300 Combine Harvester has been produced since 2014. It is equipped with an Agco Power 74 AWF.1044 engine with a displacement of 7368 cm³, turbocharged and with an intercooler, generating 243 HP. It has a 620-liter fuel tank and an additional AB80 tank. The combine has a hydrostatic transmission with four speeds, allowing a driving speed from 0 to 25 km/h. The cutting unit has a working width of 540 cm, and inside the combine, there are five straw walkers. The grain tank capacity is 86 hectoliters. The FiatAgri Laverda M 300 combine harvester is equipped with front wheels of size 650/75R32 and rear wheels of size 460/70R24.
Advertisement
Data sheet for FiatAgri Laverda M 300, M 300 MCS, M 310, M 310 MCS combine harvesters:
| Model | FiatAgri Laverda M 300 | FiatAgri Laverda M 300 MCS | FiatAgri Laverda M 310 | FiatAgri Laverda M 310 MCS |
| Years of production | 2014- | 2014- | 2011- | 2011- |
| Engine manufacturer | Agco Power | Agco Power | Agco Power | Agco Power |
| Engine model / type | 74 AWF.1044 | 74 AWF.1044 | 74 AWI/AWF | 74 AWI/AWF |
| Engine displacement (cm3) | 7368 | 7368 | 7368 | 7368 |
| Number of cylinders / turbocharging | 6TI | 6TI | 6TI | 6TI |
| Engine rated power (hp) | 243 | 243 | 276 | 276 |
| Fuel tank capacity (l) | 620+AB80 | 620+AB80 | 620+AB80 | 620+AB80 |
| Type of drive transmission | hydr | hydr | hydr | hydr |
| Number of gears (front + rear) | 4 | 4 | 4 | 4 |
| Driving speed min-max (km/h) | 0-25 | 0-25 | 0-25 | 0-25 |
Advertisement
| Cutting unit working width (cm) | 540 | 540 | 540 | 540 |
| Number of straw walkers | 5 | 5 | 6 | 6 |
| Total length (cm) | – | – | – | – |
| Total width (cm) | – | – | – | – |
| Width without cutting attachment (cm) | – | – | – | – |
| Height without cabin (cm) | – | – | – | – |
| Total height with cabin (cm) | – | – | – | – |
| Weight without cabin (kg) | – | – | – | – |
| Weight with cabin (kg) | – | – | – | – |
| Grain tank capacity (hl) | 86 | 86 | 86 | 86 |
| Front wheel size | 650/75R32 | 650/75R32 | 650/75R32 | 650/75R32 |
| Rear wheel size | 460/70R24 | 460/70R24 | 460/70R24 | 460/70R24 |
Advertisement
Add an opinion about FiatAgri Laverda M 300/M 300 MCS/M 310/M 310 MCS:

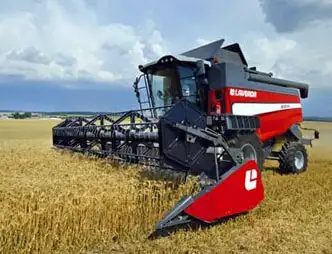

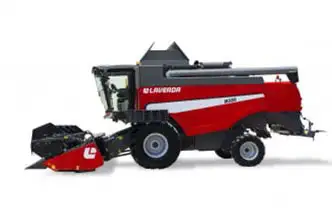

FiatAgri Laverda M 300, M 300 MCS, M 310, M 310 MCS Gallery:
