Technical specifications of Volvo BM S830 Combine Harvester:
Volvo BM S 830 Combine Harvester was produced between 1974 and 1979, equipped with a Perkins 4.154 engine with a capacity of 2526 cm³ and 56 HP. It features four cylinders and a mechanical transmission with three gears, allowing speeds from 1.4 to 24 km/h. The cutting unit has a working width of 264 cm and is equipped with three straw walkers. The combine harvester has a fuel tank capacity of 90 liters and a grain tank capacity of 19 hectoliters. Its dimensions are 687 cm in length, 313 cm in width, and 286 cm in height without the cab, with a weight of 3000 kg. The front wheels measure 14.9-24, and the rear wheels are 280-15.5.
Table of contents:
Advertisement
Data sheet for Volvo BM S830, S800 combine harvesters:
| Model | Volvo BM S 800 | Volvo BM S 830 |
| Years of production | 1970-71 | 1974-79 |
| Engine manufacturer | Perkins | Perkins |
| Engine model / type | 4.107 | 4.154 |
| Engine displacement (cm3) | 1760 | 2526 |
| Number of cylinders / turbocharging | 4 | 4 |
| Engine rated power (hp) | 42 | 56 |
| Fuel tank capacity (l) | 78 | 90 |
| Type of drive transmission | mech | mech |
| Number of gears (front + rear) | 3 | 3 |
| Driving speed min-max (km/h) | 1,4-19,7 | 1,4-24 |
Advertisement
| Cutting unit working width (cm) | 221 | 264 |
| Number of straw walkers | 3 | 3 |
| Total length (cm) | 673 | 687 |
| Total width (cm) | 265 | 313 |
| Width without cutting attachment (cm) | – | – |
| Height without cabin (cm) | 265 | 286 |
| Total height with cabin (cm) | – | – |
| Weight without cabin (kg) | 2150 | 3000 |
| Weight with cabin (kg) | – | – |
| Grain tank capacity (hl) | 14 | 19 |
| Front wheel size | 12,4-24 | 14,9-24 |
| Rear wheel size | 280-15,5 | 280-15,5 |
Advertisement
Add your opinion and share the fuel consumption of the combine Volvo BM S 800, S 830:

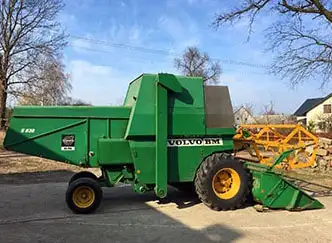

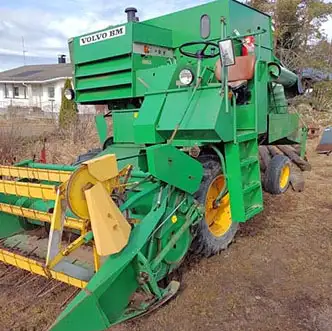

Volvo BM S 800, S 830 Gallery:
