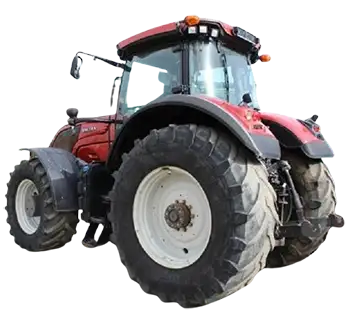

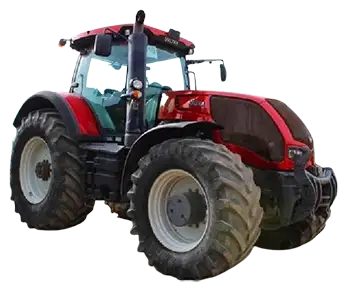

Technical specifications of the agricultural tractor Valtra S233/S263/S293/S323/S353:
Advertisement
| Model | Valtra S233 | Valtra S263 | Valtra S293 | Valtra S323 | Valtra S353 |
| Years of production | 2011-13 | 2011-13 | 2011-13 | 2011-13 | 2011-13 |
| Engine model / type | 84AWI-4V | 84AWI-4V | 84AWI-4V | 84AWI-4V | 84AWI-4V |
| Number of cylinders / turbocharging | 6TI | 6TI | 6TI | 6TI | 6TI |
| Engine displacement (cm3) | 8400 | 8400 | 8400 | 8400 | 8400 |
| Piston dimension / stroke (mm) | 111×145 | 111×145 | 111×145 | 111×145 | 111×145 |
| Maximum engine power (hp) / rpm | 240/2200 | 265/2200 | 290/2200 | 320/2200 | 340/2200 |
| Torque (Nm) / rpm | 1195/1400 | 1310/1400 | 1455/1400 | 1540/1400 | 1540/1400 |
| Number of gears (front + rear) | – | – | – | – | – |
| Number of synchronized gears (front+rear) | – | – | – | – | – |
Advertisement
| Speed-Shift | – | – | – | – | – |
| Type of reverse | hydr | hydr | hydr | hydr | hydr |
| Driving speed (km/h) | 0,03-40/50 | 0,03-40/50 | 0,03-40/50 | 0,03-40/50 | 0,03-40/50 |
| Max Driving speed (km/h) | 40/50 | 40/50 | 40/50 | 40/50 | 40/50 |
| Hydraulic pump capacity (L/min) | 175 | 175 | 175 | 175 | 175 |
| 3-Point Hitch control | ehr | ehr | ehr | ehr | ehr |
| 3-point hitch max load (kg) | 12000 | 12000 | 12000 | 12000 | 12000 |
| PTO speed (rpm) | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
| Disc brake type (dry / wet) | – | – | – | – | – |
| Type of control of the braking system | – | – | – | – | – |
| Turning radius 2WD (m) | – | – | – | – | – |
| Turning radius 4WD (m) | 11,5 | 11,5 | 11,5 | 11,5 | 11,5 |
Advertisement
| Front wheel 2WD | – | – | – | – | – |
| Front wheel 4WD | 600/70R30 | 600/65R34 | 600/65R34 | 600/65R34 | 600/65R34 |
| Rear wheel 2WD | – | – | – | – | – |
| Rear wheel 4WD | 650/85R38 | 710/75R42 | 710/75R42 | 710/75R42 | 710/75R42 |
| 2WD total weight (kg) | – | – | – | – | – |
| 4WD total weight (kg) | 10500 | 10500 | 10500 | 10500 | 10500 |
| Total height with cabin (cm) | 338 | 338 | 338 | 338 | 338 |
| Total length (cm) | 567 | 567 | 567 | 567 | 567 |
| Total width (cm) | 311 | 311 | 311 | 311 | 311 |
| Fuel tank capacity (l) | 610(+AB60) | 610(+AB60) | 610(+AB60) | 610(+AB60) | 610(+AB60) |
| Cabin sound level (dB) | 70 | 70 | 70 | 70 | 70 |
