Technical specifications of the combine harvesters MDW 514, 514 S, 521, 524, 524 S, 525, 527 STS:
MDW 514
- Years of production: 1991-93
- Rated engine power (HP): 125
- Fuel tank capacity (L): 200/350
- Cutting unit/header working width (cm): 420
- Grain tank capacity (hl): 36
MDW 514 S
- Years of production: 1991-99
- Rated engine power (HP): 141
- Fuel tank capacity (L): 200/350
- Cutting unit/header working width (cm): 420
- Grain tank capacity (hl): 36/45
MDW 521
- Years of production: 1991-99
- Rated engine power (HP): 150
- Fuel tank capacity (L): 200/350
- Cutting unit/header working width (cm): 480
- Grain tank capacity (hl): 50
MDW 524
- Years of production: 1991-94
- Rated engine power (HP): 152/156
- Fuel tank capacity (L): 300
- Cutting unit/header working width (cm): 480
- Grain tank capacity (hl): 52
MDW 524 S
- Years of production: 1991-94
- Rated engine power (HP): 175
- Fuel tank capacity (L): 300
- Cutting unit/header working width (cm): 480
- Grain tank capacity (hl): 54
MDW 525
- Years of production: 1993-99
- Rated engine power (HP): 228
- Fuel tank capacity (L): 300/520
- Cutting unit/header working width (cm): 540
- Grain tank capacity (hl): 54/63
MDW 527 STS
- Years of production: 1993-99
- Rated engine power (HP): 268
- Fuel tank capacity (L): 520
- Cutting unit/header working width (cm): 600
- Grain tank capacity (hl): 84
For details and a comparison of the combines, see the technical sheet below.
Advertisement
Data sheet for MDW 527 STS, 514 S, 521, 524 S, 525 combine harvesters:
| Model | MDW 514 | MDW 514 S | MDW 521 | MDW 524 | MDW 524 S | MDW 525 | MDW 527 STS |
|---|---|---|---|---|---|---|---|
| Years of production | 1991-93 | 1991-99 | 1991-99 | 1991-94 | 1991-94 | 1993-99 | 1993-99 |
| Engine manufacturer | Perkins | Perkins | Perkins | Perkins | Perkins | Perkins | Volvo |
| Engine designation/type | 1006-9T | 1006-9T | 1006-9T | 1006-9T | 1006-9T | 1306-9TW | TID 71 A |
| Engine displacement (cm³) | 6000 | 6000 | 6000 | 6000 | 6000 | 8685 | 6727 |
| Number of cylinders / turbocharging | 6T | 6T | 6T | 6T | 6T | 6T | 6T |
| Rated engine power (HP) | 125 | 141 | 150 | 152/156 | 175 | 228 | 268 |
| Fuel tank capacity (L) | 200/350 | 200/350 | 200/350 | 300 | 300 | 300/520 | 520 |
| Type of transmission system | mech | mech | mech | mech/hydr | mech/hydr | mech/hydr | hydr |
| Number of gearbox speeds | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Minimum-maximum driving speed (km/h) | 1,4-20,0 | 1,4-20,0 | 1,4-20,0 | 1,2/0-20,0 | 1,2/0-20,0 | 1,2/0-20,0 | 0-20,0 |
Advertisement
| Cutting unit/header working width (cm) | 420 | 420 | 480 | 480 | 480 | 540 | 600 |
|---|---|---|---|---|---|---|---|
| Number of straw walkers | 4 | 4 | 4 | 4 | 4 | 5 | 6 |
| Total length (cm) | 742 | 742 | 748 | 788 | 788 | 788 | 897 |
| Total width (cm) | – | – | – | – | – | – | – |
| Width without cutting unit/header (cm) | 288 | 316 | 316 | 318 | 318 | 325 | 350 |
| Height without cab (cm) | – | – | – | – | – | – | – |
| Total height with cab (cm) | 391 | 391 | 390 | 390 | 390 | 390 | 398 |
| Weight without cab (kg) | – | – | – | – | – | – | – |
| Weight with cab (kg) | 7490 | 7630 | 7650 | 8130 | 8130 | 8710 | 10900 |
| Grain tank capacity (hl) | 36 | 36/45 | 50 | 52 | 54 | 54/63 | 84 |
| Front wheel size | 18,4-30 | 23,1-26 | 23,1-26 | 23,1-26 | 23,1-26 | 23,1-26 | 28,1-26 |
| Rear wheel size | 12,5-20 | 12,5-20 | 12,5-20 | 12,5-20 | 12,5-20 | 12,5-20 | 16/70-20 |
Advertisement
Fuel consumption and user reviews of combines MDW 514, 514 S, 521, 524, 524 S, 525, 527 STS:

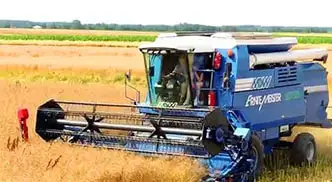

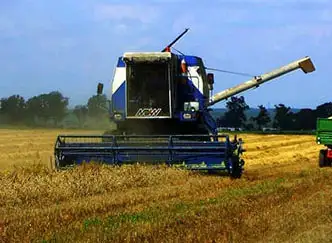

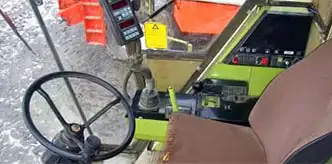

MDW 514, 514 S, 521, 524, 524 S, 525, 527 STS Gallery:
