Technical Specification of the Massey Ferguson 890 Combine Harvester:
Massey Ferguson 890 Combine Harvester was produced between 1953-1958. It is equipped with a Chrysler engine with a displacement of 3923 cm³, without turbocharging, generating 66 HP. It has a fuel tank capacity of 91 liters and a mechanical transmission with two gears, allowing for speeds from 1.5 to 11.5 km/h. The working width of the cutting unit is 290 cm, and inside the combine, there are three straw walkers. The overall dimensions are 760 cm in length, 350 cm in width, and 312 cm in height without the cab and 332 cm with the cab. The combine’s weight without the cab is 3220 kg. The grain tank capacity is 14 hectoliters. The Massey Ferguson 890 is fitted with front wheels sized 12.75×24 and rear wheels sized 6.00-16.
Advertisement
Data sheet for Massey Ferguson 890, 892 combine harvesters:
Model | Massey Ferguson 890 | Massey Ferguson 892 |
Years of production | 1953-58 | 1958-64 |
Engine manufacturer | Chrysler | Perkins |
Engine model / type | – | – |
Engine displacement (cm3) | 3923 | 4730 |
Number of cylinders / turbocharging | 6 | 6 |
Engine rated power (hp) | 66 | 64 |
Fuel tank capacity (l) | 91 | 150 |
Type of drive transmission | mech | mech |
Number of gears (front + rear) | 2 | 3 |
Driving speed min-max (km/h) | 1,5-11,5 | 1,35-19 |
Advertisement
Cutting unit working width (cm) | 290 | 290 |
Number of straw walkers | 3 | 3 |
Total length (cm) | 760 | 749 |
Total width (cm) | 350 | 320 |
Width without cutting attachment (cm) | – | – |
Height without cabin (cm) | 312/332 | 274 |
Total height with cabin (cm) | – | – |
Weight without cabin (kg) | 3220 | 4082 |
Weight with cabin (kg) | – | – |
Grain tank capacity (hl) | 14 | 22 |
Front wheel size | 12,75×24 | 14×24 |
Rear wheel size | 6,00-16 | 6,00-16 |
Advertisement
Add an opinion about Massey Ferguson 890/892:

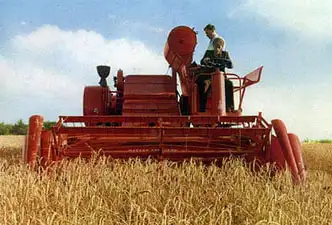

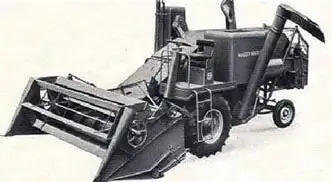

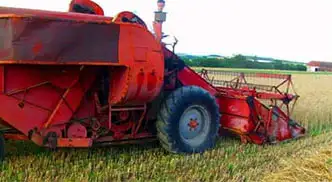

Massey Ferguson 890, 892 Gallery:
