JCB 530-110, 530-120, 530-67, 530-70, 530-95 ⚙️ Specs

Technical specification of the JCB 530-110 telescopic handler:

The JCB 530-110 telescopic handler was produced from 1996 to 1997. It is equipped with a Perkins engine model 1004, delivering a nominal power of 95 HP. It has a W-type drive transmission, allowing it to reach a travel speed of up to 32 km/h. The maximum lifting height of the handler is 11 meters, with a maximum load capacity of 3000 kg. The total weight of the machine is 8960 kg. The handler’s dimensions are: length 499 cm, width 223 cm, and height 249 cm. It is equipped with 15.5/80-24 wheels.

Advertisement

Data sheet for JCB 530-70, 530-110, 530-120, 530-67, 530-95 telescopic handlers:

Model JCB 530-110 JCB 530-120 JCB 530-67 JCB 530-70 JCB 530-95
Years of production 1996-1997 1996-1997 1996-1997 1997-2004 1996-1997
Engine manufacturer Perkins Perkins Perkins Perkins Perkins
Engine model / type 1004 1004 1004 1004 1004
Engine rated power (hp) 95KM 107KM 77KM 107KM 95KM
Type of drive transmission W W W W W
Driving speed (km/h) 32km/h 32km/h 32km/h 32km/h 32km/h
Maximum lifting height (m) 11m 12m 6,8m 7m 9,56m
Maximum load capacity (kg) 3000kg 3000kg 3000kg 3000kg 3000kg
Total weight 8960kg 9600kg 7170kg 6800kg 7960kg
Size of the wheels 15.5/80-24 15.5/80-24 15.5/80-24 15.5/80-24 15.5/80-24
Total length (cm) 499cm 584cm 499cm 499cm 499cm
Total width (cm) 223cm 235cm 223cm 223cm 223cm
Total height (cm) 249cm 259cm 249cm 249cm 249cm

Advertisement

Add an opinion about JCB 530-110/530-120/530-67/530-70/530-95:

Name
Model
Rating
Review Content

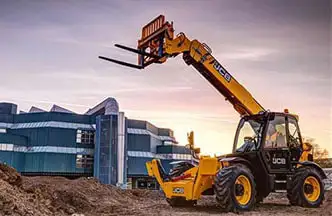

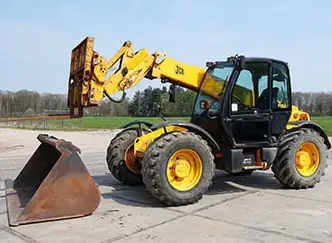

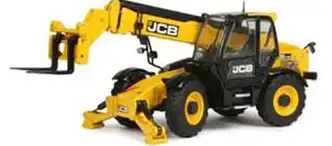

JCB 530-110, 530-120, 530-67, 530-70, 530-95 Gallery:
