Technical specification of the New Holland LM 5020 telescopic handler:
The New Holland LM 5020 telescopic handler was produced from 2012 to 2014. It is equipped with a New Holland engine model F5C, delivering a nominal power of 85 HP. It has an HY-type drive transmission, allowing it to reach a travel speed of up to 20 km/h. The maximum lifting height of the handler is 5.78 meters, with a maximum load capacity of 2500 kg. The total weight of the machine is 4800 kg. The handler’s dimensions are: length 410 cm, width 180 cm, and height 199 cm. It is equipped with 12.0/75R18 wheels.
Advertisement
Data sheet for New Holland LM 5060, LM 5030, LM 5040, LM 5080 telescopic handlers:
| Model | New Holland LM 5020 | New Holland LM 5030 | New Holland LM 5040 | New Holland LM 5060 | New Holland LM 5080 |
| Years of production | 2012-2014 | 2008-2011 | 2011-2014 | 2011-2014 | 2011-2014 |
| Engine manufacturer | New Holland | CNH | New Holland | New Holland | New Holland |
| Engine model / type | F5C | 4TC4.5 | NEF | NEF | NEF |
| Engine rated power (hp) | 85KM | 100KM | 120KM | 120KM | 120KM |
| Type of drive transmission | HY | HY | HY | HY | HY |
| Driving speed (km/h) | 20km/h | 35km/h | 37km/h | 37km/h | 37km/h |
| Maximum lifting height (m) | 5,78m | 6.35m | 6,1m | 7,1m | 9,6m |
| Maximum load capacity (kg) | 2500kg | 3200kg | 3500kg | 4000kg | 3300kg |
| Total weight | 4800kg | 6100kg | 7310kg | 7510kg | 8170kg |
| Size of the wheels | 12.0/75R18 | 405/70R24 | 460/70R24 | 460/70R24 | 460/70R24 |
| Total length (cm) | 410cm | 471cm | 478cm | 495cm | 508cm |
| Total width (cm) | 180cm | 235cm | 234cm | 234cm | 234cm |
| Total height (cm) | 199cm | 245cm | 247cm | 247cm | 247cm |
Advertisement
Add an opinion about New Holland LM 5020/LM 5030/LM 5040/LM 5060/LM 5080:

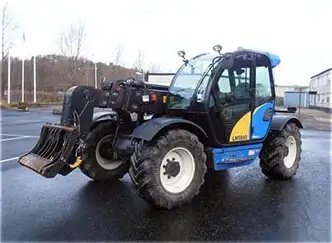

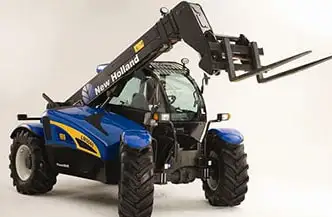

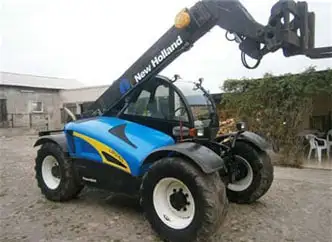

New Holland LM 5020, LM 5030, LM 5040, LM 5060, LM 5080 Gallery:
