Case IH Magnum MX 180, MX 200, MX 220, MX 240, MX 270 – specs, opinions & photos

Looking for information about agricultural tractors Case IH Magnum MX 180, MX 200, MX 220, MX 240, MX 270? In this article, you'll find answers to questions such as:

  • How much horsepower does each model have?
  • What is the engine capacity of these models?
  • What is the hydraulic pump output for each one?
  • What is the PTO speed of these tractors?

With a spec sheet presented in table form, comparing the tractors is quick and easy, and user reviews will help you make the right choice.

Table of contents:

Technical specifications of the agricultural tractors Case IH Magnum MX 180, MX 200, MX 220, MX 240, MX 270:

Case IH Magnum MX 180
Case IH Magnum MX 200
Case IH Magnum MX 220
Case IH Magnum MX 240
Case IH Magnum MX 270

Case IH Magnum MX 180

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 204/1700
  • Number of gearbox speeds (forward + reverse): 18+4
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 492

Case IH Magnum MX 200

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 220/1700
  • Number of gearbox speeds (forward + reverse): 18+4
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 492

Case IH Magnum MX 220

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 243/1700
  • Number of gearbox speeds (forward + reverse): 18+4
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 492

Case IH Magnum MX 240

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 271/1700
  • Number of gearbox speeds (forward + reverse): 18+4
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 606

Case IH Magnum MX 270

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 306/1700
  • Number of gearbox speeds (forward + reverse): 18+4
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 606

For details and a comparison of the tractors, see the technical sheet below.

Advertisement


Technical Data Sheet for Case IH Magnum MX 180, MX 200, MX 220, MX 240, MX 270 tractors:

Comparison of technical parameters of agricultural tractors
Model Case IH Magnum MX 180 Case IH Magnum MX 200 Case IH Magnum MX 220 Case IH Magnum MX 240 Case IH Magnum MX 270
Years of production – – – – –
Engine designation/type C6T-8.3 C6TAA-8.3 C6TAA-8.3 C6TAA-8.3 C6TAA-8.3
Number of cylinders / Turbo / Intercooler 6T 6TI 6TI 6TI 6TI
Engine displacement (cm³) 8268 8268 8268 8268 8268
Piston diameter / Stroke (mm) 114×135 114×135 114×135 114×135 114×135
Maximum engine power (HP) / at RPM 204/1700 220/1700 243/1700 271/1700 306/1700
Torque (Nm) / at RPM 865/1400 1000/1400 1110/1400 1240/1400 1400/1400
Number of gearbox speeds (forward + reverse) 18+4 18+4 18+4 18+4 18+4
Number of synchronized gears (forward + reverse) 18+4 18+4 18+4 18+4 18+4

Advertisement

Fast gearbox / Power shift – – – – –
Reverser type hydr hydr hydr hydr hydr
Speed range (km/h) 3,4-40 3,4-40 3,4-40 3,4-40 3,4-40
Maximum speed (km/h) – – – – –
Hydraulic pump capacity (L/min) 116 116 116 116 116
Rear three-point hitch (TUV) control type – – – – –
Maximum rear three-point hitch (TUV) lift capacity (kg) 9215 9215 10370 10370 11160
Power take-off (PTO) speed (RPM) 540/1000 1000 1000 1000 1000
Type of disc brake (dry/wet) – – – – –
Brake system control type hydr hydr hydr hydr hydr
Turning radius 2WD (m) – – – – –
Turning radius 4WD (m) 9,9 9,9 9,9 9,9 9,9

Advertisement

Front tire size 2WD – – – – –
Front tire size 4WD 480/70R30 480/70R30 540/65R34 540/65R34 540/65R34
Rear tire size 2WD – – – – –
Rear tire size 4WD 20,8R42 20,8R42 650/85R38 650/85R38 710/70R42
Total weight 2WD (kg) – – – – –
Total weight 4WD (kg) 8760 8940 8960 9220 9260
Total height with cabin (cm) 316 316 316 316 316
Total length (cm) 568 595 595 595 595
Total width (cm) 305 305 305 305 305
Fuel tank capacity (L) 492 492 492 606 606
Cabin noise level (dB) 74 74 73,5 73,5 74

Fuel consumption and user reviews of tractors Case IH Magnum MX 180, MX 200, MX 220, MX 240, MX 270:

Add your opinion:

Easy work 0.0 l/h
Medium work 0.0 l/h
Hard work 0.0 l/h

Opinions posted:

No opinions.

Average fuel consumption:

Easy - l/h
Medium - l/h
Hard - l/h

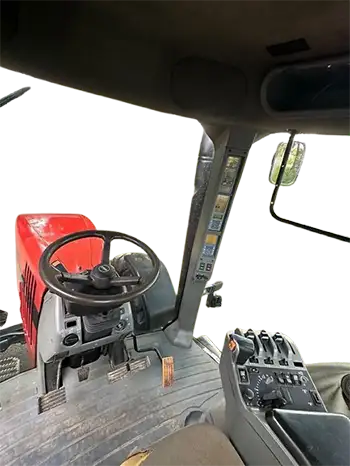

Case IH Magnum MX 180, MX 200, MX 220, MX 240, MX 270 Gallery:
