Technical specifications of Claas Axion 800 agricultural tractor:
Claas Axion 800 agricultural tractor produced since 2014 is equipped with an FPT NEF6 engine with a displacement of 6728 cm³, featuring 6 cylinders, a turbocharger, and an intercooler. Its maximum power is 193 HP at 2150 RPM, and it has a torque of 896 Nm at 1400 RPM. The reverser is hydraulic. The tractor has a driving speed range from 1.7 km/h to 50 km/h, with a maximum speed of 40 or 50 km/h depending on the version. The hydraulic pump has a capacity of 110 l/min (or 150 l/min in the reinforced version), and the rear lift control is of the EHR type. The maximum rear lift capacity is 9460 kg. The power take-off (PTO) has speeds of 540 and 1000 RPM. The turning radius for the four-wheel-drive version is 10.62 meters. The tractor has front tires sized 16.9R28 and rear tires 20.8R38. The total weight of the 4WD version is 9521 kg. The height with the cab is 321 cm, the length is 521 cm, and the width is 298 cm. The fuel tank capacity is 455 liters plus an additional AdBlue tank with a capacity of 42 liters.
Advertisement
Technical data sheet for Claas Axion 850, 800, 810, 820, 830, 840 agricultural tractors:
Model | Claas Axion 800 | Claas Axion 810 | Claas Axion 820 | Claas Axion 830 | Claas Axion 840 | Claas Axion 850 |
Years of production | 2014- | 2013- | 2014- | 2013- | 2013- | 2013- |
Engine model / type | FPT NEF6 | FPT NEF6 | FPT NEF6 | FPT NEF6 | FPT NEF6 | FPT NEF6 |
Number of cylinders / turbocharging | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI |
Engine displacement (cm3) | 6728 | 6728 | 6728 | 6728 | 6728 | 6728 |
Piston dimension / stroke (mm) | 104×132 | 104×132 | 104×132 | 104×132 | 104×132 | 104×132 |
Maximum engine power (hp) / rpm | 193/2150 | 208/2150 | 220/2150 | 229/2150 | 244/2200 | 253/2150 |
Torque (Nm) / rpm | 896/1400 | 941/1400 | 987/1400 | 1016/1400 | 1071/1400 | 1132/1400 |
Number of gears (front + rear) | – | – | – | – | – | – |
Number of synchronized gears (front+rear) | – | – | – | – | – | – |
Advertisement
Speed-Shift | – | – | – | – | – | – |
Type of reverse | hydr | hydr | hydr | hydr | hydr | hydr |
Driving speed (km/h) | 1,7-50 | 1,7-50/ 0,05-50 | 1,7-50 | 1,7-50/ 0,05-50 | 1,7-50 | 1,7-50/ 0,05-50 |
Max Driving speed (km/h) | 40/50 | 40/50 | 40/50 | 40/50 | 40/50 | 40/50 |
Hydraulic pump capacity (L/min) | 110 (150) | 110 (150) | 110 (150) | 110 (150) | 110 (150) | 110 (150) |
3-Point Hitch control | ehr | ehr | ehr | ehr | ehr | ehr |
3-point hitch max load (kg) | 9460 | 9460/9676 | 9676 | 9676 | 9676 | 10229 |
PTO speed (rpm) | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
Disc brake type (dry / wet) | – | – | – | – | – | – |
Type of control of the braking system | – | – | – | – | – | – |
Turning radius 2WD (m) | – | – | – | – | – | – |
Turning radius 4WD (m) | 10,62 | 10,62 | 10,62 | 10,62 | 10,62 | 10,62 |
Advertisement
Front wheel 2WD | – | – | – | – | – | – |
Front wheel 4WD | 16.9R28 | 16.9R28 | 16.9R30 | 16.9R30 | 540/65R30 | 540/65R30 |
Rear wheel 2WD | – | – | – | – | – | – |
Rear wheel 4WD | 20.8R38 | 20.8R38 | 20.8R42 | 20.8R42 | 620/70R42 | 620/70R42 |
2WD total weight (kg) | – | – | – | – | – | – |
4WD total weight (kg) | 9521 | 9521 | 9766 | 9766 | 9837 | 10227 |
Total height with cabin (cm) | 321 | 321 | 326 | 326 | 326 | 331 |
Total length (cm) | 521 | 521 | 521 | 521 | 526 | 526 |
Total width (cm) | 298 | 298 | 298 | 298 | 298 | 298 |
Fuel tank capacity (l) | 455+42AB | 455+42AB | 455+42AB | 455+42AB | 455+42AB | 455+42AB |
Cabin sound level (dB) | – | – | – | – | – | – |
Advertisement
Add your opinion and share the fuel consumption of the tractor Claas Axion 800, 810, 820, 830, 840, 850:

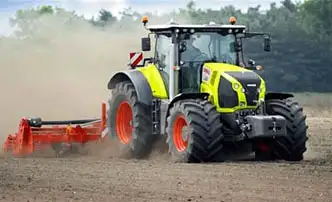

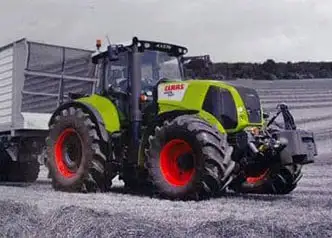

Claas Axion 800, 810, 820, 830, 840, 850 Gallery:
