Technical specifications of the Claas Challenger 35 agricultural tractor:
Claas Challenger 35 Agricultural Tractor produced since 1994 is equipped with a 3116 ATAAC engine with a displacement of 6600 cm3, with 6 cylinders, a turbocharger, and an intercooler. Its maximum power is 212 HP at 2100 RPM, and the torque is 880 Nm at 1450 RPM. The gearbox has 16 forward gears and 9 reverse gears, and the reverse gear is hydraulic. The tractor’s driving speed ranges from 2.6 km/h to 29 km/h. The hydraulic pump output is 118 liters per minute, and the rear lift control is EHR type. The maximum lifting capacity of the rear lift is 9090 kg. The power take-off (PTO) operates at a speed of 1000 RPM. The braking system is hydraulically controlled. The turning radius for the 4WD version is 13 meters. The tractor is equipped with rear tires sized 50.8×219. The total weight of the 4WD version is 9977 kg. The height with the cabin is 319 cm, length is 596 cm, and width is 219 cm. The fuel tank capacity is 473 liters, and the noise level in the cabin is 74 dB.
Advertisement
Technical data sheet for Claas Challenger 35, 45, 55, 65E, 75E, 85E, 95E agricultural tractors:
| Model | Claas Challenger 35 | Claas Challenger 45 | Claas Challenger 55 | Claas Challenger 65E | Claas Challenger 75E | Claas Challenger 85E | Claas Challenger 95E |
| Years of production | 94- | 94- | 97 | – | – | – | – |
| Engine model / type | 3116 ATAAC | 3116 ATAAC | 3126 ATAAC | 3176 ATAAC | 3176 ATAAC | 3196 ATAAC | 3196 ATAAC |
| Number of cylinders / turbocharging | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI |
| Engine displacement (cm3) | 6600 | 6600 | 7200 | 10308 | 10308 | 12000 | 12000 |
| Piston dimension / stroke (mm) | 104,9×127 | 104,9×127 | 110×127 | 125×139,7 | 125×139,7 | 130×150 | 130×150 |
| Maximum engine power (hp) / rpm | 212/2100 | 242/2100 | 270/2100 | 310/2100 | 340/2100 | 375/2100 | 410/2100 |
| Torque (Nm) / rpm | 880/1450 | 1007/1450 | – | – | – | – | |
| Number of gears (front + rear) | 16+9 | 16+9 | 16+9 | 10+2 | 10+2 | 10+2 | 10+2 |
| Number of synchronized gears (front+rear) | – | – | – | – | – | – | – |
Advertisement
| Speed-Shift | – | – | – | – | – | – | – |
| Type of reverse | hydr | hydr | hydr | hydr | hydr | hydr | hydr |
| Driving speed (km/h) | 2,6-29 | 2,6-29 | 2,6-29 | – | – | – | – |
| Max Driving speed (km/h) | – | – | – | 25 | 25 | 25 | 25 |
| Hydraulic pump capacity (L/min) | 118 | 118 | 118 | 151 | 151 | 151 | 151 |
| 3-Point Hitch control | ehr | ehr | ehr | ehr | ehr | ehr | ehr |
| 3-point hitch max load (kg) | 9090 | 9090 | 9090 | 11500 | 11500 | 11500 | 11500 |
| PTO speed (rpm) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Disc brake type (dry / wet) | – | – | – | – | – | – | – |
| Type of control of the braking system | hydr | hydr | hydr | hydr | hydr | hydr | hydr |
| Turning radius 2WD (m) | – | – | – | – | – | – | – |
| Turning radius 4WD (m) | 13 | 13 | 13 | – | – | – | – |
Advertisement
| Front wheel 2WD | – | – | – | – | – | – | – |
| Front wheel 4WD | – | – | – | – | – | – | – |
| Rear wheel 2WD | – | – | – | – | – | – | – |
| Rear wheel 4WD | 50,8×219 | 50,8×219 | 50,8×219 | 70×272 | 70×272 | 70×272 | 70×272 |
| 2WD total weight (kg) | – | – | – | – | – | – | – |
| 4WD total weight (kg) | 9977 | 9977 | 9977 | 14500 | 14500 | 14500 | 14500 |
| Total height with cabin (cm) | 319 | 319 | 319 | 367 | 367 | 367 | 367 |
| Total length (cm) | 596 | 596 | 596 | 594 | 594 | 594 | 594 |
| Total width (cm) | 219 | 219 | 219 | 229 | 229 | 229 | 229 |
| Fuel tank capacity (l) | 473 | 473 | 473 | 1060 | 1060 | 1060 | 1060 |
| Cabin sound level (dB) | 74 | 74 | 74 | 77 | 77 | 77 | 77 |
Advertisement
Add your opinion and share the fuel consumption of the tractor Claas Challenger 35, 45, 55, 65E, 75E, 85E, 95E:

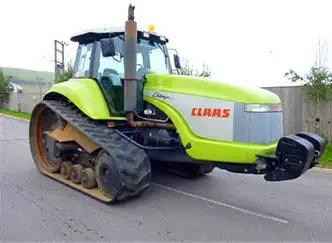

Claas Challenger 35, 45, 55, 65E, 75E, 85E, 95E Gallery:
