Technical specifications of the Fendt 1038 Vario agricultural tractor:
Fendt 1038 Vario Agricultural Tractor produced since 2015 is equipped with a MAN D2676LE521 engine with a displacement of 12419 cm3. The six-cylinder turbocharged engine with an intercooler generates a maximum power of 381 HP at 1500-1700 RPM and a torque of 1900 Nm at 1000-1500 RPM. The tractor reaches speeds from 0.02 to 60 km/h, with a maximum speed of 50/60 km/h. The hydraulic pump output is 165 liters per minute, with an option to increase to 220 or 430 liters. The electronically controlled rear lift (EHR) has a maximum lifting capacity of 12920 kg. The power take-off (PTO) operates at a speed of 1000, 1000E, or 1300 RPM. The turning radius is 13.94 meters, and it is equipped with tires sized 650/65R34 at the front and 710/75R42 at the rear. The total vehicle weight is 14000 kg, its height with the cabin is 357 cm, length is 597 cm, width is 330 cm, and the fuel tank capacity is 800 liters plus 85 liters of AdBlue.
Advertisement
Technical data sheet for Fendt 1038 Vario, 1042 Vario, 1046 Vario, 1050 Vario agricultural tractors:
| Model | Fendt 1038 Vario | Fendt 1042 Vario | Fendt 1046 Vario | Fendt 1050 Vario |
| Years of production | 2015- | 2015- | 2015- | 2015- |
| Engine model / type | MAN D2676LE521 | MAN D2676LE521 | MAN D2676LE521 | MAN D2676LE521 |
| Number of cylinders / turbocharging | 6TI | 6TI | 6TI | 6TI |
| Engine displacement (cm3) | 12419 | 12419 | 12419 | 12419 |
| Piston dimension / stroke (mm) | 126×166 | 126×166 | 126×166 | 126×166 |
| Maximum engine power (hp) / rpm | 381/1500-1700 | 420/1500-1700 | 460/1500-1700 | 500/1500-1700 |
| Torque (Nm) / rpm | 1900/1000-1500 | 2100/1000-1500 | 2300/1000-1500 | 2400/1000-1500 |
| Number of gears (front + rear) | – | – | – | – |
| Number of synchronized gears (front+rear) | – | – | – | – |
Advertisement
| Speed-Shift | – | – | – | – |
| Type of reverse | hydr | hydr | hydr | hydr |
| Driving speed (km/h) | 0,02-60 | 0,02-60 | 0,02-60 | 0,02-60 |
| Max Driving speed (km/h) | 50/60 | 50/60 | 50/60 | 50/60 |
| Hydraulic pump capacity (L/min) | 165 (220/430) | 165 (220/430) | 165 (220/430) | 165 (220/430) |
| 3-Point Hitch control | ehr | ehr | ehr | ehr |
| 3-point hitch max load (kg) | 12920 | 12920 | 12920 | 12920 |
| PTO speed (rpm) | 1000/1000E/1300 | 1000/1000E/1300 | 1000/1000E/1300 | 1000/1000E/1300 |
| Disc brake type (dry / wet) | – | – | – | – |
| Type of control of the braking system | – | – | – | – |
| Turning radius 2WD (m) | 13,94 | 14,66 | 14,66 | 14,66 |
| Turning radius 4WD (m) | – | – | – | – |
Advertisement
| Front wheel 2WD | – | – | – | – |
| Front wheel 4WD | 650/65R34 | 650/65R38 | 650/65R38 | 650/65R38 |
| Rear wheel 2WD | – | – | – | – |
| Rear wheel 4WD | 710/75R42 | 750/75R46 | 750/75R46 | 750/75R46 |
| 2WD total weight (kg) | – | – | – | – |
| 4WD total weight (kg) | 14000 | 14000 | 14000 | 14000 |
| Total height with cabin (cm) | 357 | 357 | 357 | 357 |
| Total length (cm) | 597 | 597 | 597 | 597 |
| Total width (cm) | 330 | 330 | 330 | 330 |
| Fuel tank capacity (l) | 800+AB85 | 800+AB85 | 800+AB85 | 800+AB85 |
| Cabin sound level (dB) | – | – | – | – |
Advertisement
Add an opinion about Fendt 1038 Vario/1042 Vario/1046 Vario/1050 Vario:

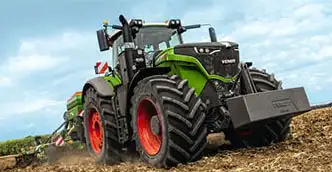

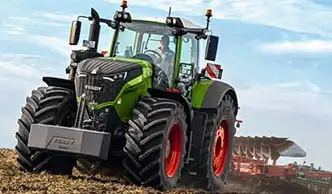

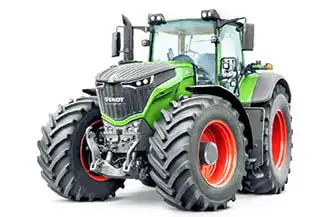

Fendt 1038 Vario, 1042 Vario, 1046 Vario, 1050 Vario Gallery:
