John Deere 4560

John Deere 4560, 4760, 4960 – specs, opinions & photos

Looking for information about agricultural tractors John Deere 4560, 4760, 4960? In this article, you'll find answers to questions such as:

  • How much horsepower does each model have?
  • What is the engine capacity of these models?
  • What is the hydraulic pump output for each one?
  • What is the PTO speed of these tractors?

With a spec sheet presented in table form, comparing the tractors is quick and easy, and user reviews will help you make the right choice.

Table of contents:

Technical specifications of the agricultural tractors John Deere 4560, 4760, 4960:

John Deere 4560
John Deere 4760
John Deere 4960

John Deere 4560

  • Years of production: 91-94
  • Maximum engine power (HP) / at RPM: 170/2200
  • Number of gearbox speeds (forward + reverse): 15+4
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 386

John Deere 4760

  • Years of production: 91-94
  • Maximum engine power (HP) / at RPM: 190/2200
  • Number of gearbox speeds (forward + reverse): 15+4
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 386

John Deere 4960

  • Years of production: 91-94
  • Maximum engine power (HP) / at RPM: 228/2000
  • Number of gearbox speeds (forward + reverse): 15+4
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 386

For details and a comparison of the tractors, see the technical sheet below.

Advertisement


Technical Data Sheet for John Deere 4560, 4760, and 4960 tractors:

Comparison of technical parameters of agricultural tractors
Model John Deere 4560 John Deere 4760 John Deere 4960
Years of production 91-94 91-94 91-94
Engine designation/type 6466T 6466A 6466A
Number of cylinders / Turbo / Intercooler 6T 6TI 6TI
Engine displacement (cm³) 7640 7640 7640
Piston diameter / Stroke (mm) 115,8×120,6 115,8×120,6 115,8×120,6
Maximum engine power (HP) / at RPM 170/2200 190/2200 228/2000
Torque (Nm) / at RPM – – –
Number of gearbox speeds (forward + reverse) 15+4 15+4 15+4
Number of synchronized gears (forward + reverse) powershift powershift powershift

Advertisement

Fast gearbox / Power shift powershift powershift powershift
Reverser type – – –
Speed range (km/h) 2,3-30,0 2,3-31,1 2,3-31,1
Maximum speed (km/h) – – –
Hydraulic pump capacity (L/min) 126 126 126
Rear three-point hitch (TUV) control type ehr ehr ehr
Maximum rear three-point hitch (TUV) lift capacity (kg) 3757 3757 4555
Power take-off (PTO) speed (RPM) 1000 1000 1000
Type of disc brake (dry/wet) – – –
Brake system control type hydr hydr hydr
Turning radius 2WD (m) – – –
Turning radius 4WD (m) 10,6 10,6 10,6

Advertisement

Front tire size 2WD – – –
Front tire size 4WD 16,9-28 16,9-30 16,9-30
Rear tire size 2WD – – –
Rear tire size 4WD 20,8-38 20,8-42 20,8-42
Total weight 2WD (kg) – – –
Total weight 4WD (kg) 8436 8482 8607
Total height with cabin (cm) 302 302 302
Total length (cm) 542 542 542
Total width (cm) 297 297 297
Fuel tank capacity (L) 386 386 386
Cabin noise level (dB) 76,5 76,5 76,5

Fuel consumption and user reviews of tractors John Deere 4560, 4760, 4960:

Add your opinion:

Easy work 0.0 l/h
Medium work 0.0 l/h
Hard work 0.0 l/h

Opinions posted:

No opinions.

Average fuel consumption:

Easy - l/h
Medium - l/h
Hard - l/h

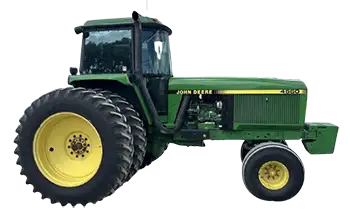

John Deere 4560, 4760, 4960 Gallery:
