Landini 5.090D

Landini 5.090D, 5.100D, 5.110D – specs, opinions & photos

Looking for information about agricultural tractors Landini 5.090D, 5.100D, 5.110D? In this article, you'll find answers to questions such as:

  • How much horsepower does each model have?
  • What is the engine capacity of these models?
  • What is the hydraulic pump output for each one?
  • What is the PTO speed of these tractors?

With a spec sheet presented in table form, comparing the tractors is quick and easy, and user reviews will help you make the right choice.

Table of contents:

Technical specifications of the agricultural tractors Landini 5.090D, 5.100D, 5.110D:

Landini 5.090D
Landini 5.100D
Landini 5.110D

Landini 5.090D

  • Years of production: 2012-15
  • Maximum engine power (HP) / at RPM: 85/2200
  • Number of gearbox speeds (forward + reverse): 24+12
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 102

Landini 5.100D

  • Years of production: 2012-15
  • Maximum engine power (HP) / at RPM: 95/2200
  • Number of gearbox speeds (forward + reverse): 24+12
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 102

Landini 5.110D

  • Years of production: 2012-15
  • Maximum engine power (HP) / at RPM: 102/2200
  • Number of gearbox speeds (forward + reverse): 24+12
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 102

For details and a comparison of the tractors, see the technical sheet below.

Advertisement


Technical Data Sheet for Landini 5.090D, 5.100D, 5.110D Agricultural tractors:

Comparison of technical parameters of agricultural tractors
Model Landini 5.090D Landini 5.100D Landini 5.110D
Years of production 2012-15 2012-15 2012-15
Engine designation/type 854E-E34TA 854E-E34TA 854E-E34TA
Number of cylinders / Turbo / Intercooler 4TA 4TA 4TA
Engine displacement (cm³) 3400 3400 3400
Piston diameter / Stroke (mm) 99×110 99×110 99×110
Maximum engine power (HP) / at RPM 85/2200 95/2200 102/2200
Torque (Nm) / at RPM 354/1400 395/1400 420/1400
Number of gearbox speeds (forward + reverse) 24+12 24+12 24+12
Number of synchronized gears (forward + reverse) 24+12 24+12 24+12

Advertisement

Fast gearbox / Power shift – – –
Reverser type mech mech mech
Speed range (km/h) 2,0-40 2,0-40 2,0-40
Maximum speed (km/h) – – –
Hydraulic pump capacity (L/min) 52 52 52
Rear three-point hitch (TUV) control type mech mech mech
Maximum rear three-point hitch (TUV) lift capacity (kg) 4350 4350 4350
Power take-off (PTO) speed (RPM) 540/750 540/750 540/750
Type of disc brake (dry/wet) – – –
Brake system control type – – –
Turning radius 2WD (m) – – –
Turning radius 4WD (m) 8,2 8,2 8,2

Advertisement

Front tire size 2WD – – –
Front tire size 4WD – – –
Rear tire size 2WD – – –
Rear tire size 4WD – – –
Total weight 2WD (kg) – – –
Total weight 4WD (kg) 3480 3480 3480
Total height with cabin (cm) 249 249 249
Total length (cm) 414 414 414
Total width (cm) 234/232 234/232 234/232
Fuel tank capacity (L) 102 102 102
Cabin noise level (dB) – – –

Advertisement

Fuel consumption and user reviews of tractors Landini 5.090D, 5.100D, 5.110D:

Add your opinion:

Easy work 0.0 l/h
Medium work 0.0 l/h
Hard work 0.0 l/h

Opinions posted:

No opinions.

Average fuel consumption:

Easy - l/h
Medium - l/h
Hard - l/h

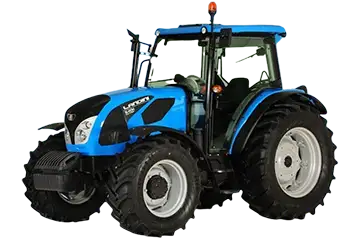

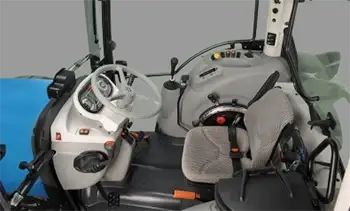

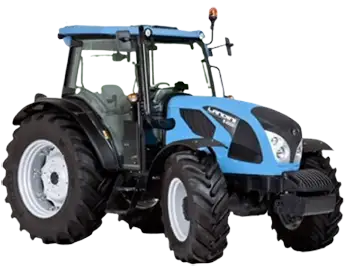

Landini 5.090D, 5.100D, 5.110D Gallery:
