Landini Mythos 105 TDI

Landini Mythos 105 TDI,, 115 TDI – specs, opinions & photos

Looking for information about agricultural tractors Landini Mythos 105 TDI,, 115 TDI? In this article, you'll find answers to questions such as:

  • How much horsepower does each model have?
  • What is the engine capacity of these models?
  • What is the hydraulic pump output for each one?
  • What is the PTO speed of these tractors?

With a spec sheet presented in table form, comparing the tractors is quick and easy, and user reviews will help you make the right choice.

Table of contents:

Technical specifications of the agricultural tractors Landini Mythos 105 TDI,, 115 TDI:

Landini Mythos 105 TDI
Landini Mythos 115 TDI

Landini Mythos 105 TDI

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 99/2200
  • Number of gearbox speeds (forward + reverse): 20+15/40+30/50+15
  • Maximum speed (km/h): 40
  • Fuel tank capacity (L): 150 (200)

Landini Mythos 115 TDI

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 110/2200
  • Number of gearbox speeds (forward + reverse): 20+15/40+30/50+15
  • Maximum speed (km/h): 40
  • Fuel tank capacity (L): 150 (200)

For details and a comparison of the tractors, see the technical sheet below.

Advertisement


Technical Data Sheet for Landini Mythos 105 TDI, 115 TDI tractors:

Comparison of technical parameters of agricultural tractors
Model Landini Mythos 105 TDI Landini Mythos 115 TDI
Years of production – –
Engine designation/type Perkins Perkins
Number of cylinders / Turbo / Intercooler 4TI 6TI
Engine displacement (cm³) 4400 5985
Piston diameter / Stroke (mm) 105×127 100×127
Maximum engine power (HP) / at RPM 99/2200 110/2200
Torque (Nm) / at RPM 404/1400 420/1400
Number of gearbox speeds (forward + reverse) 20+15/40+30/50+15 20+15/40+30/50+15
Number of synchronized gears (forward + reverse) 20+15/40+30/50+15 20+15/40+30/50+15

Advertisement

Fast gearbox / Power shift 3 3
Reverser type hydr hydr
Speed range (km/h) 0,3-39,2 0,3-39,2
Maximum speed (km/h) 40 40
Hydraulic pump capacity (L/min) 55 62
Rear three-point hitch (TUV) control type ehr ehr
Maximum rear three-point hitch (TUV) lift capacity (kg) 4350 4800
Power take-off (PTO) speed (RPM) 540/1000 540/1000
Type of disc brake (dry/wet) – –
Brake system control type – –
Turning radius 2WD (m) – –
Turning radius 4WD (m) 10,4 10,4

Advertisement

Front tire size 2WD – –
Front tire size 4WD 420/70R24 380/70R28
Rear tire size 2WD – –
Rear tire size 4WD 520/70R34 520/70R38
Total weight 2WD (kg) – –
Total weight 4WD (kg) 4250 4750
Total height with cabin (cm) 266 270
Total length (cm) 449 477
Total width (cm) 245 276
Fuel tank capacity (L) 150 (200) 150 (200)
Cabin noise level (dB) 75 75

Fuel consumption and user reviews of tractors Landini Mythos 105 TDI, , 115 TDI:

Add your opinion:

Easy work 0.0 l/h
Medium work 0.0 l/h
Hard work 0.0 l/h

Opinions posted:

No opinions.

Average fuel consumption:

Easy - l/h
Medium - l/h
Hard - l/h

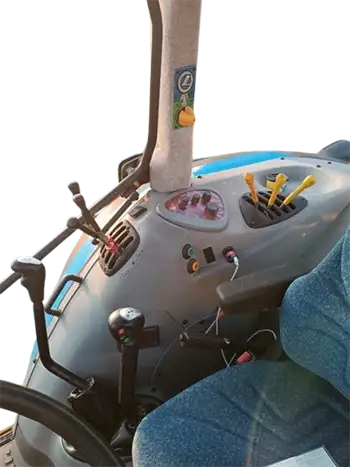

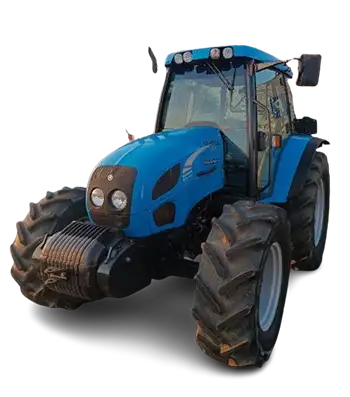

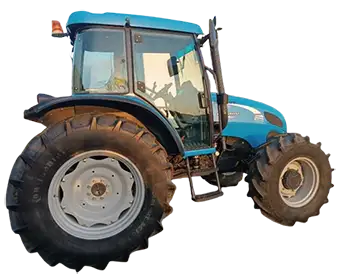

Landini Mythos 105 TDI, , 115 TDI Gallery:
