McCormick X5.50

McCormick X5.20, X5.30, X5.40, X5.50 – specs, opinions & photos

Looking for information about agricultural tractors McCormick X5.20, X5.30, X5.40, X5.50? In this article, you'll find answers to questions such as:

  • How much horsepower does each model have?
  • What is the engine capacity of these models?
  • What is the hydraulic pump output for each one?
  • What is the PTO speed of these tractors?

With a spec sheet presented in table form, comparing the tractors is quick and easy, and user reviews will help you make the right choice.

Table of contents:

Technical specifications of the agricultural tractors McCormick X5.20, X5.30, X5.40, X5.50:

McCormick X5.20
McCormick X5.30
McCormick X5.40
McCormick X5.50

McCormick X5.20

  • Years of production: 2015-
  • Maximum engine power (HP) / at RPM: 85/2200
  • Number of gearbox speeds (forward + reverse): 24+12/36+12
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 120

McCormick X5.30

  • Years of production: 2015-
  • Maximum engine power (HP) / at RPM: 95/2200
  • Number of gearbox speeds (forward + reverse): 24+12/36+12
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 120

McCormick X5.40

  • Years of production: 2015-
  • Maximum engine power (HP) / at RPM: 102/2200
  • Number of gearbox speeds (forward + reverse): 24+12/36+12
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 120

McCormick X5.50

  • Years of production: 2015-
  • Maximum engine power (HP) / at RPM: 113/2200
  • Number of gearbox speeds (forward + reverse): 24+12/36+12
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 120

For details and a comparison of the tractors, see the technical sheet below.

Advertisement


Technical Data Sheet for McCormick X5.20, X5.30, X5.40, X5.50 tractors:

Comparison of technical parameters of agricultural tractors
Model McCormick X5.20 McCormick X5.30 McCormick X5.40 McCormick X5.50
Years of production 2015- 2015- 2015- 2015-
Engine designation/type 854E-E34TA 854E-E34TA 854E-E34TA 854E-E34TA
Number of cylinders / Turbo / Intercooler 4TA 4TA 4TA 4TA
Engine displacement (cm³) 3400 3400 3400 3400
Piston diameter / Stroke (mm) 99×110 99×110 99×110 99×110
Maximum engine power (HP) / at RPM 85/2200 95/2200 102/2200 113/2200
Torque (Nm) / at RPM 354/1400 395/1400 420/1400 450/1400
Number of gearbox speeds (forward + reverse) 24+12/36+12 24+12/36+12 24+12/36+12 24+12/36+12
Number of synchronized gears (forward + reverse) 24+12/36+12 24+12/36+12 24+12/36+12 24+12/36+12

Advertisement

Fast gearbox / Power shift – – – –
Reverser type mech/hydr mech/hydr mech/hydr mech/hydr
Speed range (km/h) 2,0-40 2,0-40 2,0-40 2,0-40
Maximum speed (km/h) – – – –
Hydraulic pump capacity (L/min) 63 63 63 63
Rear three-point hitch (TUV) control type ehr ehr ehr ehr
Maximum rear three-point hitch (TUV) lift capacity (kg) 4750 4750 4750 4750
Power take-off (PTO) speed (RPM) 540/750 540/750 540/750 540/750
Type of disc brake (dry/wet) – – – –
Brake system control type – – – –
Turning radius 2WD (m) – – – –
Turning radius 4WD (m) 8,4 8,4 8,4 8,4

Advertisement

Front tire size 2WD – – – –
Front tire size 4WD 380/70R24 380/70R24 380/70R24 380/70R24
Rear tire size 2WD – – – –
Rear tire size 4WD 480/70R34 480/70R34 480/70R34 480/70R34
Total weight 2WD (kg) – – – –
Total weight 4WD (kg) 3650 3650 3650 3650
Total height with cabin (cm) 256 256 256 256
Total length (cm) 416 416 416 416
Total width (cm) 237/234 237/234 237/234 237/234
Fuel tank capacity (L) 120 120 120 120
Cabin noise level (dB) – – – –

Fuel consumption and user reviews of tractors McCormick X5.20, X5.30, X5.40, X5.50:

Add your opinion:

Easy work 0.0 l/h
Medium work 0.0 l/h
Hard work 0.0 l/h

Opinions posted:

No opinions.

Average fuel consumption:

Easy - l/h
Medium - l/h
Hard - l/h

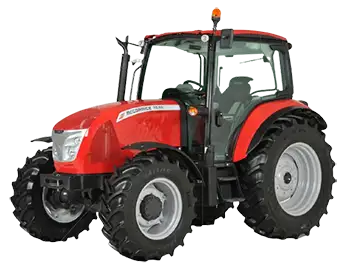

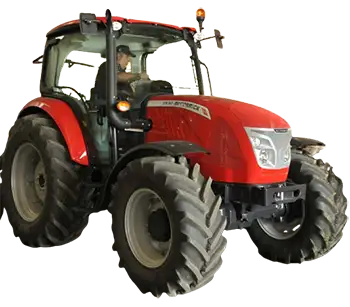

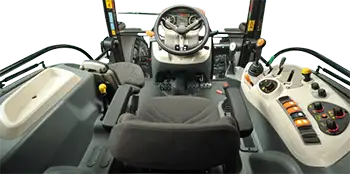

McCormick X5.20, X5.30, X5.40, X5.50 Gallery:
