New Holland G 170

New Holland G 170, G 190, G 210, G 240 – specs, opinions & photos

Looking for information about agricultural tractors New Holland G 170, G 190, G 210, G 240? In this article, you'll find answers to questions such as:

  • How much horsepower does each model have?
  • What is the engine capacity of these models?
  • What is the hydraulic pump output for each one?
  • What is the PTO speed of these tractors?

With a spec sheet presented in table form, comparing the tractors is quick and easy, and user reviews will help you make the right choice.

Table of contents:

Technical specifications of the agricultural tractors New Holland G 170, G 190, G 210, G 240:

New Holland G 170
New Holland G 190
New Holland G 210
New Holland G 240

New Holland G 170

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 172/1900
  • Number of gearbox speeds (forward + reverse): 18+9
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 416

New Holland G 190

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 196/1900
  • Number of gearbox speeds (forward + reverse): 18+9
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 416

New Holland G 210

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 226/1900
  • Number of gearbox speeds (forward + reverse): 18+9
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 416

New Holland G 240

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 260/1900
  • Number of gearbox speeds (forward + reverse): 18+9
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 416

For details and a comparison of the tractors, see the technical sheet below.

Advertisement


Technical Data Sheet for New Holland G 170, G 190, G 210, G 240 tractors:

Comparison of technical parameters of agricultural tractors
Model New Holland G 170 New Holland G 190 New Holland G 210 New Holland G 240
Years of production – – – –
Engine designation/type WD 456 675 TA VA 456 VB 456
Number of cylinders / Turbo / Intercooler 6T 6T 6TI 6TI
Engine displacement (cm³) 7485 7485 7485 7485
Piston diameter / Stroke (mm) 111,8×127 111,8×127 111,8×127 111,8×127
Maximum engine power (HP) / at RPM 172/1900 196/1900 226/1900 260/1900
Torque (Nm) / at RPM 820/1500 888/1300 999/1400 1068/1500
Number of gearbox speeds (forward + reverse) 18+9 18+9 18+9 18+9
Number of synchronized gears (forward + reverse) powershift powershift powershift powershift

Advertisement

Fast gearbox / Power shift powershift powershift powershift powershift
Reverser type hydr hydr hydr hydr
Speed range (km/h) 2,8-40,5 2,8-40,5 2,8-40,5 2,8-40,5
Maximum speed (km/h) – – – –
Hydraulic pump capacity (L/min) 117 117 117 117
Rear three-point hitch (TUV) control type ehr ehr ehr ehr
Maximum rear three-point hitch (TUV) lift capacity (kg) 7089 8870 8870 8870
Power take-off (PTO) speed (RPM) 540/1000 1000 1000 1000
Type of disc brake (dry/wet) – – – –
Brake system control type hydr hydr hydr hydr
Turning radius 2WD (m) – – – –
Turning radius 4WD (m) 9,14/10,68 9,14/10,68 9,14/10,68 9,14/10,68

Advertisement

Front tire size 2WD – – – –
Front tire size 4WD 16,9R30 16,9R30 16,9R30 16,9R30
Rear tire size 2WD – – – –
Rear tire size 4WD 20,8R42 20,8R42 20,8R42 20,8R42
Total weight 2WD (kg) – – – –
Total weight 4WD (kg) 7839/8066 8517/8744 8517/8744 8517/8744
Total height with cabin (cm) 300 300 300 300
Total length (cm) 507/518 507/518 507/518 507/518
Total width (cm) 301/312 301/312 301/312 301/312
Fuel tank capacity (L) 416 416 416 416
Cabin noise level (dB) 73 73 73 73

Fuel consumption and user reviews of tractors New Holland G 170, G 190, G 210, G 240:

Add your opinion:

Easy work 0.0 l/h
Medium work 0.0 l/h
Hard work 0.0 l/h

Opinions posted:

No opinions.

Average fuel consumption:

Easy - l/h
Medium - l/h
Hard - l/h

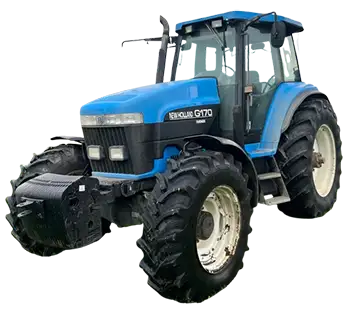

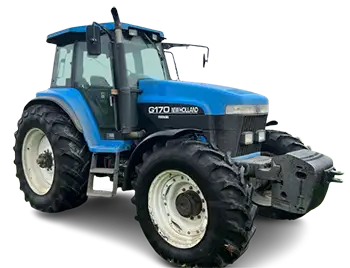

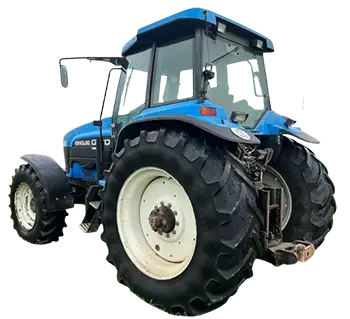

New Holland G 170, G 190, G 210, G 240 Gallery:
