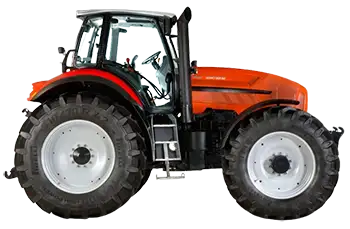

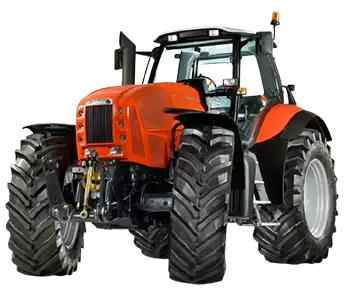

Technical specifications of the agricultural tractor Same Diamond 215/265/230/270:
Advertisement
| Model | Same Diamond 215 | Same Diamond 265 | Same Diamond 230 | Same Diamond 270 |
| Years of production | – | – | – | – |
| Engine model / type | TCD2013 L06 4V | TCD2013 L06 4V | TCD2013 L06 4V | TCD2013 L06 4V |
| Number of cylinders / turbocharging | 6TI | 6TI | 6TI | 6TI |
| Engine displacement (cm3) | 7146 | 7146 | 7146 | 7146 |
| Piston dimension / stroke (mm) | 108×130 | 108×130 | 108×130 | 108×130 |
| Maximum engine power (hp) / rpm | 200/2300 | 250/2350 | 219/2100 | 262/2100 |
| Torque (Nm) / rpm | 833 | 1028 | 961 | 1052 |
| Number of gears (front + rear) | 40+40 | 40+40 | 40+40 | 40+40 |
| Number of synchronized gears (front+rear) | 40+40 | 40+40 | 40+40 | 40+40 |
Advertisement
| Speed-Shift | 4 | 4 | 4 | 4 |
| Type of reverse | hydr | hydr | hydr | hydr |
| Driving speed (km/h) | 0,5-50,0 | 0,5-50,0 | 0,48-50,0 | 0,48-50,0 |
| Max Driving speed (km/h) | 40/50 | 40/50 | 40/50 | 40/50 |
| Hydraulic pump capacity (L/min) | 120 | 120 | 120 | 120 |
| 3-Point Hitch control | ehr | ehr | ehr | ehr |
| 3-point hitch max load (kg) | 10500 | 10500 | 10500 | 10500 |
| PTO speed (rpm) | 750/1000 | 750/1000 | 750/1000 | 750/1000 |
| Disc brake type (dry / wet) | – | – | – | – |
| Type of control of the braking system | – | – | – | – |
| Turning radius 2WD (m) | – | – | – | – |
| Turning radius 4WD (m) | 13,5 | 13,5 | 13,5 | 13,5 |
Advertisement
| Front wheel 2WD | – | – | – | – |
| Front wheel 4WD | 600/65R38 | 600/65R38 | 600/65R38 | 600/65R38 |
| Rear wheel 2WD | – | – | – | – |
| Rear wheel 4WD | 710/70R42 | 710/70R42 | 710/70R42 | 710/70R42 |
| 2WD total weight (kg) | – | – | – | – |
| 4WD total weight (kg) | 8410 | 9050 | 9430 | 9450 |
| Total height with cabin (cm) | 327 | 327 | 327 | 327 |
| Total length (cm) | 527 | 527 | 527 | 527 |
| Total width (cm) | 310 | 310 | 310 | 310 |
| Fuel tank capacity (l) | 360 (550) | 550 | 425 (585) | 585 |
| Cabin sound level (dB) | 73 | 73 | 73 | 73 |
