Technical specifications of the agricultural tractors Same Tiger 50, 60, 70, 65, 75:
Same Tiger 50
- Years of production: 2010
- Maximum engine power (HP) / at RPM: 42/2200
- Number of gearbox speeds (forward + reverse): 8+2/12+3
- Maximum speed (km/h): 40
- Fuel tank capacity (L): 204/198
Same Tiger 60
- Years of production: 2010
- Maximum engine power (HP) / at RPM: 52/2350
- Number of gearbox speeds (forward + reverse): 8+2/12+3
- Maximum speed (km/h): 40
- Fuel tank capacity (L): 204/198
Same Tiger 70
- Years of production: –
- Maximum engine power (HP) / at RPM: 64/2350
- Number of gearbox speeds (forward + reverse): 8+2/12+3
- Maximum speed (km/h): 40
- Fuel tank capacity (L): 204/198
Same Tiger 65
- Years of production: –
- Maximum engine power (HP) / at RPM: 59/2200
- Number of gearbox speeds (forward + reverse): 12+3
- Maximum speed (km/h): 40
- Fuel tank capacity (L): 204/198
Same Tiger 75
- Years of production: –
- Maximum engine power (HP) / at RPM: 69/2200
- Number of gearbox speeds (forward + reverse): 12+3
- Maximum speed (km/h): 40
- Fuel tank capacity (L): 204/198
For details and a comparison of the tractors, see the technical sheet below.
Advertisement
Technical Data Sheet for Same Tiger 50, 60, 70, 65, 75 tractors:
| Model | Same Tiger 50 | Same Tiger 60 | Same Tiger 70 | Same Tiger 65 | Same Tiger 75 |
|---|---|---|---|---|---|
| Years of production | 2010 | 2010 | – | – | – |
| Engine designation/type | 1000.3 W | 1000.3 W | 1000.3 W | 1000.3 W | 1000.3 W |
| Number of cylinders / Turbo / Intercooler | 3 | 3 | 3T | 3T | 3TI |
| Engine displacement (cm³) | 3000 | 3000 | 3000 | 3000 | 3000 |
| Piston diameter / Stroke (mm) | 105×115,5 | 105×115,5 | 105×115,5 | 105×115,5 | 105×115,5 |
| Maximum engine power (HP) / at RPM | 42/2200 | 52/2350 | 64/2350 | 59/2200 | 69/2200 |
| Torque (Nm) / at RPM | 170/1400 | 185/1400 | 261/1400 | 240/1600 | 265/1600 |
| Number of gearbox speeds (forward + reverse) | 8+2/12+3 | 8+2/12+3 | 8+2/12+3 | 12+3 | 12+3 |
| Number of synchronized gears (forward + reverse) | 12+3 | 12+3 | 12+3 | 12+3 | 12+3 |
Advertisement
| Fast gearbox / Power shift | – | – | – | – | – |
|---|---|---|---|---|---|
| Reverser type | – | – | – | – | – |
| Speed range (km/h) | – | – | – | – | – |
| Maximum speed (km/h) | 40 | 40 | 40 | 40 | 40 |
| Hydraulic pump capacity (L/min) | 33 | 33 | 33 | 33 | 33 |
| Rear three-point hitch (TUV) control type | mech | mech | mech | mech | mech |
| Maximum rear three-point hitch (TUV) lift capacity (kg) | 1500 | 1500 | 1500 | 3000 | 3000 |
| Power take-off (PTO) speed (RPM) | 540 | 540 | 540 | 540/750 | 540/750 |
| Type of disc brake (dry/wet) | – | – | – | – | – |
| Brake system control type | – | – | – | – | – |
| Turning radius 2WD (m) | 7,1 | 7,1 | 7,1 | 7,1 | 7,1 |
| Turning radius 4WD (m) | 7,4 | 7,4 | 7,4 | 7,4 | 7,4 |
Advertisement
| Front tire size 2WD | – | – | – | – | – |
|---|---|---|---|---|---|
| Front tire size 4WD | – | – | – | – | – |
| Rear tire size 2WD | – | – | – | – | – |
| Rear tire size 4WD | – | – | – | – | – |
| Total weight 2WD (kg) | – | – | – | – | – |
| Total weight 4WD (kg) | 2160 | 2160 | 2160 | 2160 | 2160 |
| Total height with cabin (cm) | 2420 | 2420 | 2420 | 2420 | 2420 |
| Total length (cm) | 154 | 154 | 154 | 154 | 154 |
| Total width (cm) | 362 | 362 | 362 | 362 | 362 |
| Fuel tank capacity (L) | 204/198 | 204/198 | 204/198 | 204/198 | 204/198 |
| Cabin noise level (dB) | 70 | 70 | 70 | 70 | 70 |
Advertisement
Fuel consumption and user reviews of tractors Same Tiger 50, 60, 70, 65, 75:

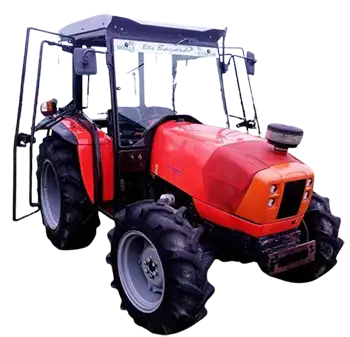

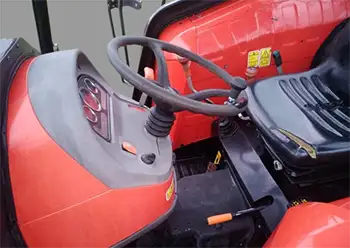

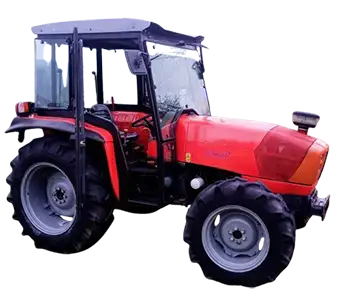

Same Tiger 50, 60, 70, 65, 75 Gallery:
