Technical specifications of the agricultural tractors Steyr 1400, 8160, 8170, 8180:
Steyr 1400/8160
- Years of production: 1974-76/76-81
- Maximum engine power (HP) / at RPM: 140/2200
- Number of gearbox speeds (forward + reverse): 12+4
- Maximum speed (km/h): 25/32
- Fuel tank capacity (L): 245
Steyr 8170
- Years of production: 1981-86
- Maximum engine power (HP) / at RPM: 150/2200
- Number of gearbox speeds (forward + reverse): 12+4
- Maximum speed (km/h): 32
- Fuel tank capacity (L): 245
Steyr 8180
- Years of production: 1987-93
- Maximum engine power (HP) / at RPM: 165/2200
- Number of gearbox speeds (forward + reverse): 36+12
- Maximum speed (km/h): 40
- Fuel tank capacity (L): 240
For details and a comparison of the tractors, see the technical sheet below.
Advertisement
Technical Data Sheet for Steyr 1400, 8160, 8170, 8180 Agricultural tractors:
| Model | Steyr 1400/8160 | Steyr 8170 | Steyr 8180 |
|---|---|---|---|
| Years of production | 1974-76/76-81 | 1981-86 | 1987-93 |
| Engine designation/type | WD 612.85 | WD 612.89 | WD 612.96 |
| Number of cylinders / Turbo / Intercooler | 6 | 6T | 6T |
| Engine displacement (cm³) | 6592 | 6596 | 6596 |
| Piston diameter / Stroke (mm) | 108×120 | 108×120 | 108×120 |
| Maximum engine power (HP) / at RPM | 140/2200 | 150/2200 | 165/2200 |
| Torque (Nm) / at RPM | 539/1500 | 590/1500 | 634/1400 |
| Number of gearbox speeds (forward + reverse) | 12+4 | 12+4 | 36+12 |
| Number of synchronized gears (forward + reverse) | 12+4 | 12+4 | 36+12 |
Advertisement
| Fast gearbox / Power shift | – | – | – |
|---|---|---|---|
| Reverser type | – | – | – |
| Speed range (km/h) | 2,5-24,8 | 3,1-31,8 | 0,3-37,7 |
| Maximum speed (km/h) | 25/32 | 32 | 40 |
| Hydraulic pump capacity (L/min) | 41 | 41 | 44 (60) |
| Rear three-point hitch (TUV) control type | mech | mech | mech |
| Maximum rear three-point hitch (TUV) lift capacity (kg) | 4520 | 6540 | 6500 |
| Power take-off (PTO) speed (RPM) | 1000 | 1000 | 1000 |
| Type of disc brake (dry/wet) | – | – | – |
| Brake system control type | – | – | – |
| Turning radius 2WD (m) | – | – | – |
| Turning radius 4WD (m) | 13,2 | 13,2 | 13,2 |
Advertisement
| Front tire size 2WD | – | – | – |
|---|---|---|---|
| Front tire size 4WD | 18.4R26 | 18.4R28 | – |
| Rear tire size 2WD | – | – | – |
| Rear tire size 4WD | 20.8R38 | 20.8R38 | – |
| Total weight 2WD (kg) | – | – | – |
| Total weight 4WD (kg) | 5660 | 5910 | 6245 |
| Total height with cabin (cm) | 275 | 284 | 287 |
| Total length (cm) | 491 | 498 | 528 |
| Total width (cm) | 270 | 270 | 270 |
| Fuel tank capacity (L) | 245 | 245 | 240 |
| Cabin noise level (dB) | 86 | 84 | 82 |
Fuel consumption and user reviews of tractors Steyr 1400, 8160, 8170, 8180:

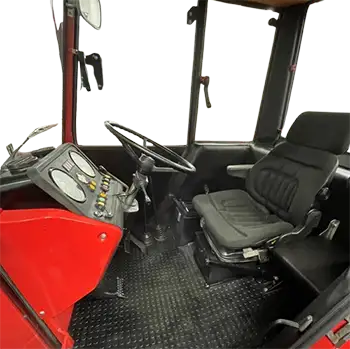

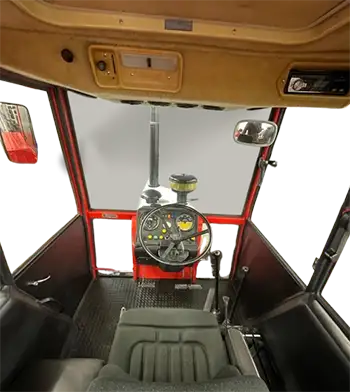

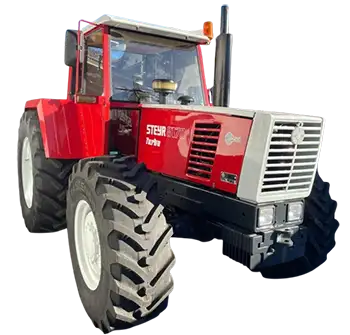

Steyr 1400, 8160, 8170, 8180 Gallery:
