Technical specifications of the agricultural tractors Ursus 15014, U-4150, C-3150:
Ursus 15014
- Years of production: 2013-14
- Maximum engine power (HP) / at RPM: 148/2200
- Number of gearbox speeds (forward + reverse): 40+40
- Maximum speed (km/h): 40
- Fuel tank capacity (L): 280
Ursus U-4150
- Years of production: 2014-16
- Maximum engine power (HP) / at RPM: 149/2100
- Number of gearbox speeds (forward + reverse): 40+40
- Maximum speed (km/h): 40
- Fuel tank capacity (L): 280
Ursus C-3150 Power
- Years of production: 2016-20
- Maximum engine power (HP) / at RPM: 150/2100
- Number of gearbox speeds (forward + reverse): 40+40
- Maximum speed (km/h): 40
- Fuel tank capacity (L): 250
Ursus C-3150 Power
- Years of production: 2020-21
- Maximum engine power (HP) / at RPM: 163/2100
- Number of gearbox speeds (forward + reverse): 40+40
- Maximum speed (km/h): 40
- Fuel tank capacity (L): 250
Ursus C-3150 V Power
- Years of production: 2018-20
- Maximum engine power (HP) / at RPM: 150/2100
- Number of gearbox speeds (forward + reverse): 32+32
- Maximum speed (km/h): 40 (50)
- Fuel tank capacity (L): 250
For details and a comparison of the tractors, see the technical sheet below.
Advertisement
Technical Data Sheet for Ursus 15014, U-4150, C-3150 agricultural tractors:
| Model | Ursus 15014 | Ursus U-4150 | Ursus C-3150 Power | Ursus C-3150 Power | Ursus C-3150 V Power |
|---|---|---|---|---|---|
| Years of production | 2013-14 | 2014-16 | 2016-20 | 2020-21 | 2018-20 |
| Engine designation/type | Sisu 66AWI | Deutz TCD 4.1 L4 | Deutz TCD 6.1 L6 | Deutz TCD 6.1 L6 | Deutz TCD 4.1 L4 |
| Number of cylinders / Turbo / Intercooler | 6TI | 4TI | 6TI | 6TI | 4TI |
| Engine displacement (cm3) | 6600 | 4038 | 6057 | 6057 | 4038 |
| Piston diameter / Stroke (mm) | 101×126 | 101×126 | 101×126 | 101×126 | 101×126 |
| Maximum engine power (HP) / at RPM | 148/2200 | 149/2100 | 150/2100 | 163/2100 | 150/2100 |
| Torque (Nm) / at RPM | 580/1600 | 663/1500 | 661/1500 | 661/1400 | 661/1500 |
| Number of gearbox speeds (forward + reverse) | 40+40 | 40+40 | 40+40 | 40+40 | 32+32 |
| Number of synchronized gears (forward + reverse) | 40+40 | 40+40 | 40+40 | 40+40 | 32+32 |
Advertisement
| Fast gearbox / Power shift | hydr | hydr | hydr | hydr | hydr |
|---|---|---|---|---|---|
| Reverser type | hydr | hydr | hydr | hydr | hydr |
| Speed range (km/h) | 0-40 | 0-40 | 0-40 | 0-40 | 0-40 |
| Maximum speed (km/h) | 40 | 40 | 40 | 40 | 40 (50) |
| Hydraulic pump capacity (L/min) | 90 | 90 | 90 | 90 | 100 |
| Rear three-point hitch (TUV) control type | ehr | ehr | ehr | ehr | ehr |
| Maximum rear three-point hitch (TUV) lift capacity (kg) | 7200 | 7200 | 7200 | 7200 | 7000 |
| Power take-off (PTO) speed (RPM) | 540/750/1000/1400 | 540/750/1000/1400 | 540/750/1000/1400 | 540/750/1000/1400 | 540/750/1000/1400 |
| Type of disc brake (dry/wet) | wet | wet | wet | wet | wet |
| Brake system control type | hydr | hydr | hydr | hydr | hydr |
| Turning radius 2WD (m) | – | – | – | – | – |
| Turning radius 4WD (m) | – | – | – | – | – |
Advertisement
| Front tire size 2WD | – | – | – | – | – |
|---|---|---|---|---|---|
| Front tire size 4WD | 480/70R28 | 480/70R28 | 480/70R28 | 480/70R28 | 480/70R28 |
| Rear tire size 2WD | – | – | – | – | – |
| Rear tire size 4WD | 580/70R38 | 580/70R38 | 580/70R38 | 580/70R38 | 580/70R38 |
| Total weight 2WD (kg) | – | – | – | – | – |
| Total weight 4WD (kg) | 6900 | 6900 | 6900 | 7000 | 6900 |
| Total height with cabin (cm) | 290 | 290 | 300 | 300 | 300 |
| Total length (cm) | 472 | 472 | 472 | 472 | 472 |
| Wheelbase (cm) | 250 | 250 | 250 | 250 | 250 |
| Fuel tank capacity (L) | 280 | 280 | 250 | 250 | 250 |
| Cabin noise level (dB) | – | – | – | – | – |
Advertisement
Fuel consumption and user reviews of tractors Ursus 15014, U-4150, C-3150:

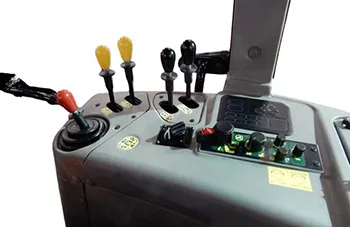

Ursus 15014, U-4150, C-3150 Gallery:
