Valtra M150

Valtra M120, M120e, M130, M150, XM130, XM150 – specs, opinions & photos

Looking for information about agricultural tractors Valtra M120, M120e, M130, M150, XM130, XM150? In this article, you'll find answers to questions such as:

  • How much horsepower does each model have?
  • What is the engine capacity of these models?
  • What is the hydraulic pump output for each one?
  • What is the PTO speed of these tractors?

With a spec sheet presented in table form, comparing the tractors is quick and easy, and user reviews will help you make the right choice.

Table of contents:

Technical specifications of the agricultural tractors Valtra M120, M120e, M130, M150, XM130, XM150:

Valtra M120
Valtra M120e
Valtra M130
Valtra M150
Valtra XM130
Valtra XM150

Valtra M120

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 120/2200
  • Number of gearbox speeds (forward + reverse): 36+36
  • Maximum speed (km/h): 41 (50)
  • Fuel tank capacity (L): 165

Valtra M120e

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 120/1800
  • Number of gearbox speeds (forward + reverse): 36+36
  • Maximum speed (km/h): 40
  • Fuel tank capacity (L): 165

Valtra M130

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 135/2200
  • Number of gearbox speeds (forward + reverse): 36+36
  • Maximum speed (km/h): 41 (50)
  • Fuel tank capacity (L): 165

Valtra M150

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 150/2200
  • Number of gearbox speeds (forward + reverse): 36+36
  • Maximum speed (km/h): 41 (50)
  • Fuel tank capacity (L): 165

Valtra XM130

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 135/2200
  • Number of gearbox speeds (forward + reverse): 36+36
  • Maximum speed (km/h): 41
  • Fuel tank capacity (L): 250

Valtra XM150

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 150/2200
  • Number of gearbox speeds (forward + reverse): 36+36
  • Maximum speed (km/h): 41
  • Fuel tank capacity (L): 250

For details and a comparison of the tractors, see the technical sheet below.

Advertisement


Technical Data Sheet for Valtra M120, M120e, M130, M150, XM130, XM150 Agricultural tractors:

Comparison of technical parameters of agricultural tractors
Model Valtra M120 Valtra M120e Valtra M130 Valtra M150 Valtra XM130 Valtra XM150
Years of production – – – – – –
Engine designation/type 44EWA 44EWA 44EWA 44EWA 44EWA 44EWA
Number of cylinders / Turbo / Intercooler 4TI 4TI 4TI 4TI 4TI 4TI
Engine displacement (cm³) 4399 4399 4399 4399 4399 4399
Piston diameter / Stroke (mm) 108×120 108×120 108×120 108×120 108×120 108×120
Maximum engine power (HP) / at RPM 120/2200 120/1800 135/2200 150/2200 135/2200 150/2200
Torque (Nm) / at RPM 500/1400 580/1200 510/1400 580/1400 510/1400 580/1400
Number of gearbox speeds (forward + reverse) 36+36 36+36 36+36 36+36 36+36 36+36
Number of synchronized gears (forward + reverse) 36+36 36+36 36+36 36+36 36+36 36+36

Advertisement

Fast gearbox / Power shift 3 3 3 3 3 3
Reverser type hydr hydr hydr hydr hydr hydr
Speed range (km/h) 0,6-40,1 0,6-40,1 0,6-40,1 0,6-40,1 0,6-40,1 0,6-40,1
Maximum speed (km/h) 41 (50) 40 41 (50) 41 (50) 41 41
Hydraulic pump capacity (L/min) 91 82 91 91 91 (181) 91 (181)
Rear three-point hitch (TUV) control type ehr ehr ehr ehr ehr ehr
Maximum rear three-point hitch (TUV) lift capacity (kg) 7200 7200 7200 7200 7200 7200
Power take-off (PTO) speed (RPM) 540/1000 540/1000 540/1000 540/1000 540/1000 540/1000
Type of disc brake (dry/wet) – – – – – –
Brake system control type – – – – – –
Turning radius 2WD (m) – – – – – –
Turning radius 4WD (m) 9,4 9,4 9,4 10,4 9,6 9,6

Advertisement

Front tire size 2WD – – – – – –
Front tire size 4WD 14.9R28 14.9R28 14.9R28 16.9R28 16.9R28 16.9R28
Rear tire size 2WD – – – – – –
Rear tire size 4WD 18.4R38 18.4R38 18.4R38 20.8R38 20.8R38 20.8R38
Total weight 2WD (kg) – – – – – –
Total weight 4WD (kg) 5130 5130 5130 5450 6150 6150
Total height with cabin (cm) 297 297 297 298 300 300
Total length (cm) 490 490 490 490 522 522
Total width (cm) 256 256 256 256 288 288
Fuel tank capacity (L) 165 165 165 165 250 250
Cabin noise level (dB) 73,5 71,5 75 74,5 73 71

Fuel consumption and user reviews of tractors Valtra M120, M120e, M130, M150, XM130, XM150:

Add your opinion:

Easy work 0.0 l/h
Medium work 0.0 l/h
Hard work 0.0 l/h

Opinions posted:

No opinions.

Average fuel consumption:

Easy - l/h
Medium - l/h
Hard - l/h

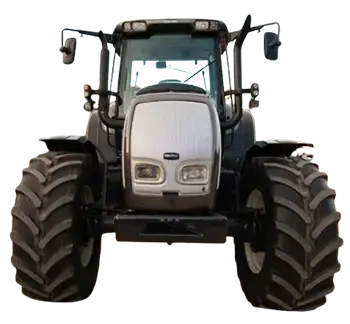

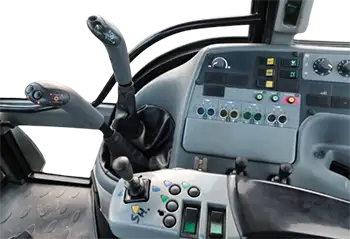

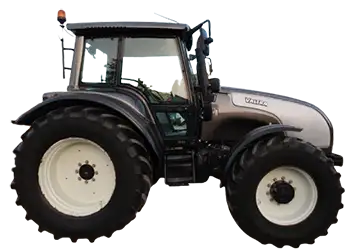

Valtra M120, M120e, M130, M150, XM130, XM150 Gallery:
