Massey Ferguson 16

Massey Ferguson 16, 20, 20 XP – specs, opinions & photos

Looking for information about combines Massey Ferguson 16, 20, 20 XP? This article answers questions like:

  • How much horsepower does each model deliver?
  • What is the cutting width of the header?
  • What is the grain tank capacity for each model?
  • What are the transport dimensions?

Thanks to a detailed spec sheet in table format, it's easy to compare combines, and user reviews will guide you to the best option.

Table of contents:

Technical specifications of the combine harvesters Massey Ferguson 16, 20, 20 XP:

Massey Ferguson 16
Massey Ferguson 20
Massey Ferguson 20 XP

Massey Ferguson 16

  • Years of production: 1985-87
  • Rated engine power (HP): 75
  • Fuel tank capacity (L): 100
  • Cutting unit/header working width (cm): 258
  • Grain tank capacity (hl): 21

Massey Ferguson 20

  • Years of production: 1987-90
  • Rated engine power (HP): 85
  • Fuel tank capacity (L): 140
  • Cutting unit/header working width (cm): 297
  • Grain tank capacity (hl): 25

Massey Ferguson 20 XP

  • Years of production: 1985-86
  • Rated engine power (HP): 85
  • Fuel tank capacity (L): 140
  • Cutting unit/header working width (cm): 335
  • Grain tank capacity (hl): 25

For details and a comparison of the combines, see the technical sheet below.

Advertisement

Data sheet for Massey Ferguson 16, 20, 20 XP combine harvesters:

Comparison of technical parameters of combine harvesters
Model Massey Ferguson 16 Massey Ferguson 20 Massey Ferguson 20 XP
Years of production 1985-87 1987-90 1985-86
Engine manufacturer Perkins Perkins Perkins
Engine designation/type A4.236 A4.248 A4.248
Engine displacement (cm³) 3860 4060 4060
Number of cylinders / turbocharging 4 4 4
Rated engine power (HP) 75 85 85
Fuel tank capacity (L) 100 140 140
Type of transmission system mech mech mech
Number of gearbox speeds 3 3 3
Minimum-maximum driving speed (km/h) 1,5-19,8 1,4-22 1,4-22

See also: Catalog of filters for Massey Ferguson combine harvesters

Advertisement

Cutting unit/header working width (cm) 258 297 335
Number of straw walkers 4 4 4
Total length (cm) 740 755 740
Total width (cm) 295 335 370
Width without cutting unit/header (cm) – – –
Height without cab (cm) 290 295 295
Total height with cab (cm) 326 325 325
Weight without cab (kg) 3845 4540 4580
Weight with cab (kg) 4080 4760 4800
Grain tank capacity (hl) 21 25 25
Front wheel size 16,9-26 18,4-26 18,4-26
Rear wheel size 10/80-12 11,5-15 11,5-15

Fuel consumption and user reviews of combines Massey Ferguson 16, 20, 20 XP:

Add your opinion:

Easy work 0.0 l/h
Medium work 0.0 l/h
Hard work 0.0 l/h

Opinions posted:

No opinions.

Average fuel consumption:

Easy - l/h
Medium - l/h
Hard - l/h

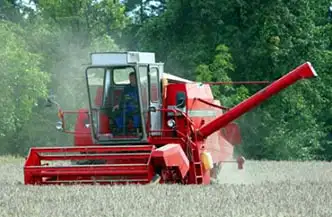

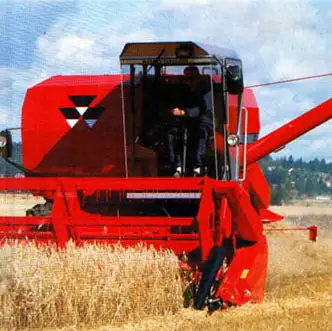

Massey Ferguson 16, 20, 20 XP Gallery:
