Belarus 1522

Belarus 1522, 1523, 1523.3, 1523.4, 2022.3, 2022.4 – specs, opinions & photos

Looking for information about agricultural tractors Belarus 1522, 1523, 1523.3, 1523.4, 2022.3, 2022.4? In this article, you'll find answers to questions such as:

  • How much horsepower does each model have?
  • What is the engine capacity of these models?
  • What is the hydraulic pump output for each one?
  • What is the PTO speed of these tractors?

With a spec sheet presented in table form, comparing the tractors is quick and easy, and user reviews will help you make the right choice.

Table of contents:

Technical specifications of the agricultural tractors Belarus 1522, 1523, 1523.3, 1523.4, 2022.3, 2022.4:

Belarus 1522
Belarus 1523
Belarus 1523.3
Belarus 1523.4
Belarus 2022.3
Belarus 2022.4

Belarus 1522

  • Years of production: 1999-
  • Maximum engine power (HP) / at RPM: 155/2100
  • Number of gearbox speeds (forward + reverse): 16+8
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 250

Belarus 1523

  • Years of production: 2004-
  • Maximum engine power (HP) / at RPM: 155/2100
  • Number of gearbox speeds (forward + reverse): 16+8
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 250

Belarus 1523.3

  • Years of production: 2006-
  • Maximum engine power (HP) / at RPM: 158/2100
  • Number of gearbox speeds (forward + reverse): 16+8
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 250

Belarus 1523.4

  • Years of production: 2007-
  • Maximum engine power (HP) / at RPM: 155/2100
  • Number of gearbox speeds (forward + reverse): 16+8
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 250

Belarus 2022.3

  • Years of production: 2006-
  • Maximum engine power (HP) / at RPM: 212/2100
  • Number of gearbox speeds (forward + reverse): 24+12
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 357

Belarus 2022.4

  • Years of production: 2010-
  • Maximum engine power (HP) / at RPM: 225/2100
  • Number of gearbox speeds (forward + reverse): 24+12
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): 370

For details and a comparison of the tractors, see the technical sheet below.

Advertisement


Technical Data Sheet for Belarus 2022.4, 1522, 1523, 1523.3, 1523.4, 2022.3 agricultural tractors:

Comparison of technical parameters of agricultural tractors
Model Belarus 1522 Belarus 1523 Belarus 1523.3 Belarus 1523.4 Belarus 2022.3 Belarus 2022.4
Years of production 1999- 2004- 2006- 2007- 2006- 2010-
Engine designation/type D-260.1 D-260.1 D-260.1S2 TCD D-260.4S2 TCD 2013 L06 2V
Number of cylinders / Turbo / Intercooler 6T 6T 6TI 6TI 6TI 6TI
Engine displacement (cm³) 7120 7120 7120 6057 7120 7146
Piston diameter / Stroke (mm) 110×125 110×125 110×125 101×126 110×125 108×130
Maximum engine power (HP) / at RPM 155/2100 155/2100 158/2100 155/2100 212/2100 225/2100
Torque (Nm) / at RPM 597/1400 597/1400 597/1600 680/1400 900/1400 900/1400
Number of gearbox speeds (forward + reverse) 16+8 16+8 16+8 16+8 24+12 24+12
Number of synchronized gears (forward + reverse) – – – – – –

Advertisement

Fast gearbox / Power shift – – – – – –
Reverser type – – – – – –
Speed range (km/h) 33 40 40 40 40 40
Maximum speed (km/h) – – – – – –
Hydraulic pump capacity (L/min) 60 60 55 55 55 55
Rear three-point hitch (TUV) control type ehr ehr ehr ehr ehr ehr
Maximum rear three-point hitch (TUV) lift capacity (kg) 7000 7000 6500 6500 6500 6500
Power take-off (PTO) speed (RPM) 540/1000 540/1000 540/1000 540/1000 540/1000 540/1000
Type of disc brake (dry/wet) – – – – – –
Brake system control type – – – – – –
Turning radius 2WD (m) – – – – – –
Turning radius 4WD (m) 11 11 11 11 11,6 11,6

Advertisement

Front tire size 2WD – – – – – –
Front tire size 4WD 14.9R24 420/70R24 420/70R24 420/70R24 420/70R24 420/70R24
Rear tire size 2WD – – – – – –
Rear tire size 4WD 18.4R38 520/70R38 520/70R38 520/70R38 580/70R42 580/70R42
Total weight 2WD (kg) – – – – – –
Total weight 4WD (kg) 6000 6000 6000 6500 7220 7220
Total height with cabin (cm) 300 300 300 300 312 312
Total length (cm) 475 475 464 471 523 523
Total width (cm) 285 285 276 276 292 292
Fuel tank capacity (L) 250 250 250 250 357 370
Cabin noise level (dB) 83 83 83 83 – –

Fuel consumption and user reviews of tractors Belarus 1522, 1523, 1523.3, 1523.4, 2022.3, 2022.4:

Add your opinion:

Easy work 0.0 l/h
Medium work 0.0 l/h
Hard work 0.0 l/h

Opinions posted:

No opinions.

Average fuel consumption:

Easy - l/h
Medium - l/h
Hard - l/h

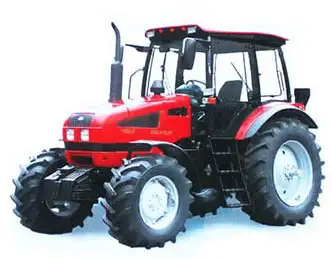

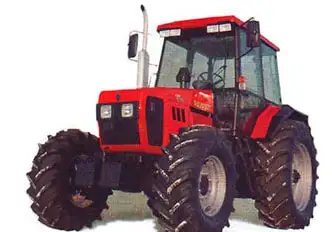

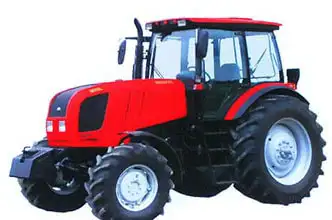

Belarus 1522, 1523, 1523.3, 1523.4, 2022.3, 2022.4 Gallery:
