Technical specifications of the agricultural tractor Case IH C 42/C 55/C 64/C 70:
Advertisement
Model | Case IH C 42 | Case IH C 55 | Case IH C 64 | Case IH C 70 |
Years of production | 92-96 | 92-97 | 92-97 | 92-97 |
Engine model / type | WD308 | WD301 | WD301.83 | WD301.87 |
Number of cylinders / turbocharging | 3 | 3 | 3T | 3T |
Engine displacement (cm3) | 2356 | 3117 | 3117 | 3117 |
Piston dimension / stroke (mm) | 100X100 | 105×120 | 105×120 | 105×120 |
Maximum engine power (hp) / rpm | 42/2400 | 55/2300 | 64/2300 | 70/2300 |
Torque (Nm) / rpm | 150/1350 | 210/1350 | 252/1400 | 267/1300 |
Number of gears (front + rear) | 16+8 | 16+8 | 16+8 | 16+8 |
Number of synchronized gears (front+rear) | 16+8 | 16+8 | 16+8 | 16+8 |
Advertisement
Speed-Shift | – | – | – | – |
Type of reverse | mech | mech | mech | mech |
Driving speed (km/h) | 1,9-30 | 1,9-40 | 1,9-40 | 1,9-40 |
Max Driving speed (km/h) | 30 | 30/40 | 30/40 | 30/40 |
Hydraulic pump capacity (L/min) | 29 | 43 | 43 | 43 |
3-Point Hitch control | mech | mech | mech | mech |
3-point hitch max load (kg) | 2000 | 2700 | 2700 | 2700/3300 |
PTO speed (rpm) | 540/1000 | 540/750/1000/1400 | 540/750/1000/1400 | 540/750/1000/1400 |
Disc brake type (dry / wet) | – | – | – | – |
Type of control of the braking system | hydr | hydr | hydr | hydr |
Turning radius 2WD (m) | 7,2 | 7,8 | 7,8 | – |
Turning radius 4WD (m) | 8 | 8,2 | 8,2 | 8,2 |
Advertisement
Front wheel 2WD | 7,50-16 | 7,50-18 | 7,50-18 | – |
Front wheel 4WD | 8,3-24 | 12,5-20 | 11,2R24 | 12,4R24 |
Rear wheel 2WD | 12,4-32 | 14,9R30 | 13,6R36 | – |
Rear wheel 4WD | 12,4-32 | 14,9R30 | 13,6R36 | 16,9R30 |
2WD total weight (kg) | 2160 | 2530 | 2580 | – |
4WD total weight (kg) | 2360 | 2810 | 2930 | 2930 |
Total height with cabin (cm) | 229/217 | 244/232 | 244/232 | 241/229 |
Total length (cm) | 348/353 | 366/374 | 367/381 | 381 |
Total width (cm) | 197/198 | 221/223 | 221/223 | 223 |
Fuel tank capacity (l) | 53 | 63 | 63 | 63 |
Cabin sound level (dB) | 84,5 | 83 | 82 | 82 |
Advertisement
Add an opinion about Case IH C 42/C 55/C 64/C 70:

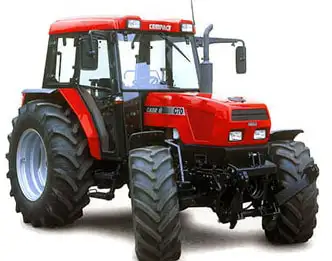

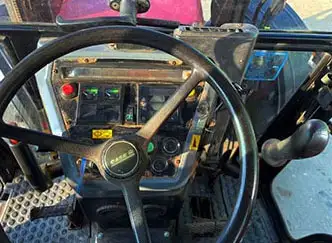

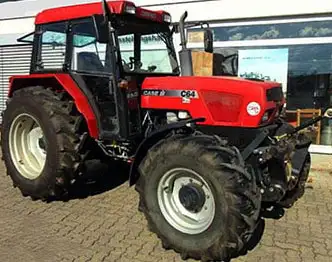

Case IH C 42, C 55, C 64, C 70 Gallery:
