Case IH Farmall 45 A

Case IH Farmall 45 A, 55 A – specs, opinions & photos

Looking for information about agricultural tractors Case IH Farmall 45 A, 55 A? In this article, you'll find answers to questions such as:

  • How much horsepower does each model have?
  • What is the engine capacity of these models?
  • What is the hydraulic pump output for each one?
  • What is the PTO speed of these tractors?

With a spec sheet presented in table form, comparing the tractors is quick and easy, and user reviews will help you make the right choice.

Table of contents:

Technical specifications of the agricultural tractors Case IH Farmall 45 A, 55 A:

Case IH Farmall 45 A
Case IH Farmall 55 A

Case IH Farmall 45 A

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 45/2700
  • Number of gearbox speeds (forward + reverse): 8+8
  • Maximum speed (km/h): 2,0-33,0
  • Fuel tank capacity (L): 51

Case IH Farmall 55 A

  • Years of production: –
  • Maximum engine power (HP) / at RPM: 55/2700
  • Number of gearbox speeds (forward + reverse): 8+8
  • Maximum speed (km/h): 2,0-33,0
  • Fuel tank capacity (L): 51

For details and a comparison of the tractors, see the technical sheet below.

Advertisement


Technical Data Sheet for Case IH Farmall 45 A, 55 A Agricultural tractors:

Comparison of technical parameters of agricultural tractors
Model Case IH Farmall 45 A Case IH Farmall 55 A
Years of production – –
Engine designation/type Shibaura Shibaura
Number of cylinders / Turbo / Intercooler 4 4
Engine displacement (cm³) 2216 2216
Piston diameter / Stroke (mm) 84×100 84×100
Maximum engine power (HP) / at RPM 45/2700 55/2700
Torque (Nm) / at RPM 179/1800 –
Number of gearbox speeds (forward + reverse) 8+8 8+8
Number of synchronized gears (forward + reverse) 8+8 8+8

Advertisement

Fast gearbox / Power shift – –
Reverser type mech mech
Speed range (km/h) – –
Maximum speed (km/h) 2,0-33,0 2,0-33,0
Hydraulic pump capacity (L/min) 44 44
Rear three-point hitch (TUV) control type mech mech
Maximum rear three-point hitch (TUV) lift capacity (kg) 1060 1060
Power take-off (PTO) speed (RPM) 540 540
Type of disc brake (dry/wet) – –
Brake system control type – –
Turning radius 2WD (m) 9 9
Turning radius 4WD (m) – –

Advertisement

Front tire size 2WD 6.00-16 7.50-16
Front tire size 4WD 8.3R24 9.5R24
Rear tire size 2WD 12.4R28 14.9R28
Rear tire size 4WD 13.6R28 14.9R28
Total weight 2WD (kg) 1700 1750
Total weight 4WD (kg) 1920 1970
Total height with cabin (cm) 244 244
Total length (cm) 339 339
Total width (cm) 197 197
Fuel tank capacity (L) 51 51
Cabin noise level (dB) 86 86

Fuel consumption and user reviews of tractors Case IH Farmall 45 A, 55 A:

Add your opinion:

Easy work 0.0 l/h
Medium work 0.0 l/h
Hard work 0.0 l/h

Opinions posted:

No opinions.

Average fuel consumption:

Easy - l/h
Medium - l/h
Hard - l/h

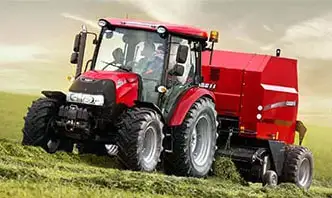

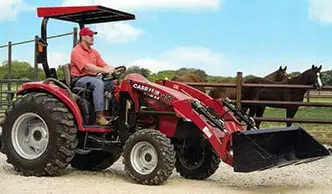

Case IH Farmall 45 A, 55 A Gallery:
