Case IH MAXXUM 140

Case IH Maxxum 110, 130, 115, 140 – specs, opinions & photos

Looking for information about agricultural tractors Case IH Maxxum 110, 130, 115, 140? In this article, you'll find answers to questions such as:

  • How much horsepower does each model have?
  • What is the engine capacity of these models?
  • What is the hydraulic pump output for each one?
  • What is the PTO speed of these tractors?

With a spec sheet presented in table form, comparing the tractors is quick and easy, and user reviews will help you make the right choice.

Table of contents:

Technical specifications of the agricultural tractors Case IH Maxxum 110, 130, 115, 140:

Case IH Maxxum 110
Case IH Maxxum 130
Case IH Maxxum 115
Case IH Maxxum 140

Case IH Maxxum 110

  • Years of production: 2007-2012
  • Maximum engine power (HP) / at RPM: 112/2200
  • Number of gearbox speeds (forward + reverse): 16+16
  • Maximum speed (km/h): 40 (48)
  • Fuel tank capacity (L): 176

Case IH Maxxum 130

  • Years of production: 2007-2012
  • Maximum engine power (HP) / at RPM: 132/2200
  • Number of gearbox speeds (forward + reverse): 16+16
  • Maximum speed (km/h): 40 (48)
  • Fuel tank capacity (L): 176

Case IH Maxxum 115

  • Years of production: 2007-2012
  • Maximum engine power (HP) / at RPM: 117/2200
  • Number of gearbox speeds (forward + reverse): 16+16
  • Maximum speed (km/h): 40 (48)
  • Fuel tank capacity (L): 250

Case IH Maxxum 140

  • Years of production: 2007-2012
  • Maximum engine power (HP) / at RPM: 141/2200
  • Number of gearbox speeds (forward + reverse): 16+16
  • Maximum speed (km/h): 40 (48)
  • Fuel tank capacity (L): 250

For details and a comparison of the tractors, see the technical sheet below.

Advertisement


Technical Data Sheet for Case IH Maxxum 140, 110, 130, 115 Agricultural tractors:

Comparison of technical parameters of agricultural tractors
Model Case IH Maxxum 110 Case IH Maxxum 130 Case IH Maxxum 115 Case IH Maxxum 140
Years of production 2007-2012 2007-2012 2007-2012 2007-2012
Engine designation/type NEF F4C NEF F4C NEF 667TA NEF 667TA
Number of cylinders / Turbo / Intercooler 4TI 4TI 6TI 6TI
Engine displacement (cm³) 4485 4485 6728 6728
Piston diameter / Stroke (mm) 104×132 104×132 104×132 104×132
Maximum engine power (HP) / at RPM 112/2200 132/2200 117/2200 141/2200
Torque (Nm) / at RPM – – – –
Number of gearbox speeds (forward + reverse) 16+16 16+16 16+16 16+16
Number of synchronized gears (forward + reverse) 16+16 16+16 16+16 16+16

Advertisement

Fast gearbox / Power shift 4 4 4 4
Reverser type hydr hydr hydr hydr
Speed range (km/h) 2,4-39,0 2,4-39,0 2,4-39,0 2,4-39,0
Maximum speed (km/h) 40 (48) 40 (48) 40 (48) 40 (48)
Hydraulic pump capacity (L/min) 113 113 113 113
Rear three-point hitch (TUV) control type ehr ehr ehr ehr
Maximum rear three-point hitch (TUV) lift capacity (kg) 7864 7864 7864 7864
Power take-off (PTO) speed (RPM) 540/750/1000 540/750/1000 540/750/1000 540/750/1000
Type of disc brake (dry/wet) – – – –
Brake system control type – – – –
Turning radius 2WD (m) – – – –
Turning radius 4WD (m) 8,08 8,08 8,71 8,71

Advertisement

Front tire size 2WD – – – –
Front tire size 4WD 14.9R28 14.9R28 14.9R28 14.9R28
Rear tire size 2WD – – – –
Rear tire size 4WD 18.4R38 18.4R38 18.4R38 18.4R38
Total weight 2WD (kg) – – – –
Total weight 4WD (kg) 5250 5250 5330 5430
Total height with cabin (cm) 292 292 298 298
Total length (cm) 429 429 453 453
Total width (cm) 241 241 265 265
Fuel tank capacity (L) 176 176 250 250
Cabin noise level (dB) 71 71 72 72

Advertisement

Fuel consumption and user reviews of tractors Case IH Maxxum 110, 130, 115, 140:

Add your opinion:

Easy work 0.0 l/h
Medium work 0.0 l/h
Hard work 0.0 l/h

Opinions posted:

No opinions.

Average fuel consumption:

Easy - l/h
Medium - l/h
Hard - l/h

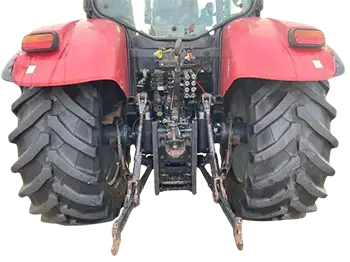

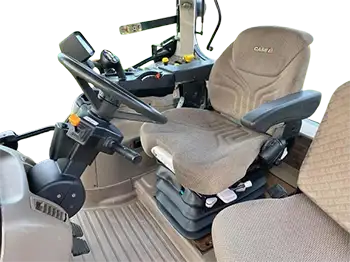

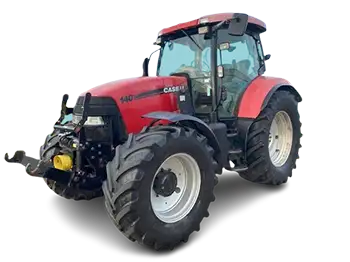

Case IH Maxxum 140, 110, 130, 115 Gallery:
