Case IH Maxxum 120 EP

Case IH Maxxum 110 EP, 120 EP, 130 EP, 115 EP, 125 EP, 140 EP – specs, opinions & photos

Looking for information about agricultural tractors Case IH Maxxum 110 EP, 120 EP, 130 EP, 115 EP, 125 EP, 140 EP? In this article, you'll find answers to questions such as:

  • How much horsepower does each model have?
  • What is the engine capacity of these models?
  • What is the hydraulic pump output for each one?
  • What is the PTO speed of these tractors?

With a spec sheet presented in table form, comparing the tractors is quick and easy, and user reviews will help you make the right choice.

Table of contents:

Technical specifications of the agricultural tractors Case IH Maxxum 110 EP, 120 EP, 130 EP, 115 EP, 125 EP, 140 EP:

Case IH Maxxum 110 EP
Case IH Maxxum 120 EP
Case IH Maxxum 130 EP
Case IH Maxxum 115 EP
Case IH Maxxum 125 EP
Case IH Maxxum 140 EP

Case IH Maxxum 110 EP

  • Years of production: 2012-16
  • Maximum engine power (HP) / at RPM: 110(131)/2200
  • Number of gearbox speeds (forward + reverse): 24+24/16+16
  • Maximum speed (km/h): 40 (48)
  • Fuel tank capacity (L): 175(+AB37)

Case IH Maxxum 120 EP

  • Years of production: 2012-16
  • Maximum engine power (HP) / at RPM: 121(140)//2200
  • Number of gearbox speeds (forward + reverse): 24+24/16+16
  • Maximum speed (km/h): 40 (48)
  • Fuel tank capacity (L): 175(+AB37)

Case IH Maxxum 130 EP

  • Years of production: 2012-16
  • Maximum engine power (HP) / at RPM: 131(150)/2200
  • Number of gearbox speeds (forward + reverse): 24+24/16+16
  • Maximum speed (km/h): 40 (48)
  • Fuel tank capacity (L): 175(+AB37)

Case IH Maxxum 115 EP

  • Years of production: 2012-16
  • Maximum engine power (HP) / at RPM: 116(140)/2200
  • Number of gearbox speeds (forward + reverse): 24+24/16+16
  • Maximum speed (km/h): 40 (48)
  • Fuel tank capacity (L): 227(+AB37)

Case IH Maxxum 125 EP

  • Years of production: 2012-16
  • Maximum engine power (HP) / at RPM: 125(151)/2200
  • Number of gearbox speeds (forward + reverse): 24+24/16+16
  • Maximum speed (km/h): 40 (48)
  • Fuel tank capacity (L): 227(+AB37)

Case IH Maxxum 140 EP

  • Years of production: 2012-16
  • Maximum engine power (HP) / at RPM: 140(166)/2200
  • Number of gearbox speeds (forward + reverse): 24+24/16+16
  • Maximum speed (km/h): 40 (48)
  • Fuel tank capacity (L): 227(+AB37)

For details and a comparison of the tractors, see the technical sheet below.

Advertisement


Technical Data Sheet for Case IH Maxxum 110 EP, 120 EP, 130 EP, 115 EP, 125 EP, 140 EP Agricultural tractors:

Comparison of technical parameters of agricultural tractors
Model Case IH Maxxum 110 EP Case IH Maxxum 120 EP Case IH Maxxum 130 EP Case IH Maxxum 115 EP Case IH Maxxum 125 EP Case IH Maxxum 140 EP
Years of production 2012-16 2012-16 2012-16 2012-16 2012-16 2012-16
Engine designation/type NEF NEF NEF NEF NEF NEF
Number of cylinders / Turbo / Intercooler 4TI 4TI 4TI 6TI 6TI 6TI
Engine displacement (cm³) 4485 4485 4485 6728 6728 6728
Piston diameter / Stroke (mm) 104×132 104×132 104×132 104×132 104×132 104×132
Maximum engine power (HP) / at RPM 110(131)/2200 121(140)//2200 131(150)/2200 116(140)/2200 125(151)/2200 140(166)/2200
Torque (Nm) / at RPM 498(590)/1500 549(634)/1500 590(676)/1500 522(632)/1500 566(682)/1500 632(726)/1500
Number of gearbox speeds (forward + reverse) 24+24/16+16 24+24/16+16 24+24/16+16 24+24/16+16 24+24/16+16 24+24/16+16
Number of synchronized gears (forward + reverse) 24+24/16+16 24+24/16+16 24+24/16+16 24+24/16+16 24+24/16+16 24+24/16+16

Advertisement

Fast gearbox / Power shift – – – – – –
Reverser type hydr hydr hydr hydr hydr hydr
Speed range (km/h) – – – – – –
Maximum speed (km/h) 40 (48) 40 (48) 40 (48) 40 (48) 40 (48) 40 (48)
Hydraulic pump capacity (L/min) 80/113 80/113 80/113 80/113 80/113 80/113
Rear three-point hitch (TUV) control type ehr ehr ehr ehr ehr ehr
Maximum rear three-point hitch (TUV) lift capacity (kg) 7117/7867 7117/7867 7117/7864 7117/7864 7117/7864 7117/7864
Power take-off (PTO) speed (RPM) 540/1000 540/1000 540/1000 540/1000 540/1000 540/1000
Type of disc brake (dry/wet) – – – – – –
Brake system control type – – – – – –
Turning radius 2WD (m) – – – – – –
Turning radius 4WD (m) 8,71 8,71 8,71 10,26 10,26 10,26

Advertisement

Front tire size 2WD – – – – – –
Front tire size 4WD 14.9R28 14.9R28 14.9R28 14.9R28 14.9R28 14.9R28
Rear tire size 2WD – – – – – –
Rear tire size 4WD 18.4R38 18.4R38 18.4R38 18.4R38 18.4R38 18.4R38
Total weight 2WD (kg) – – – – – –
Total weight 4WD (kg) 5330 5330 5330 5420 5420 5430
Total height with cabin (cm) 294 294 294 294 294 294
Total length (cm) 429 429 429 453 453 453
Total width (cm) 239 239 239 263 263 263
Fuel tank capacity (L) 175(+AB37) 175(+AB37) 175(+AB37) 227(+AB37) 227(+AB37) 227(+AB37)
Cabin noise level (dB) 71 71 71 71 71 71

Advertisement

Fuel consumption and user reviews of tractors Case IH Maxxum 110 EP, 120 EP, 130 EP, 115 EP, 125 EP, 140 EP:

Add your opinion:

Easy work 0.0 l/h
Medium work 0.0 l/h
Hard work 0.0 l/h

Opinions posted:

No opinions.

Average fuel consumption:

Easy - l/h
Medium - l/h
Hard - l/h

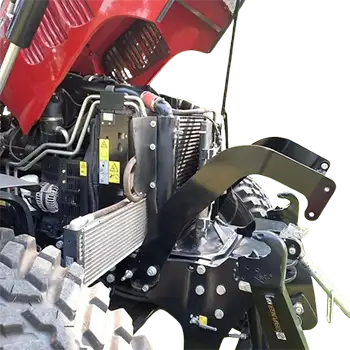

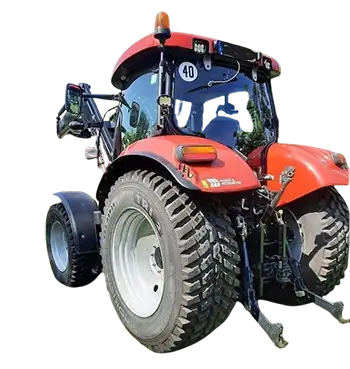

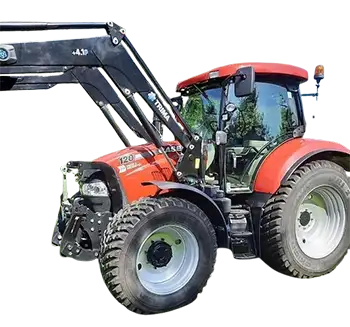

Case IH Maxxum 110 EP, 120 EP, 130 EP, 115 EP, 125 EP, 140 EP Gallery:
