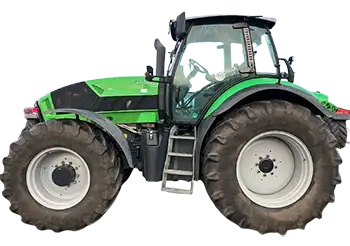

Technical specifications of the agricultural tractor Deutz Fahr Agrotron TTV 610/TTV 620/TTV 630:
Advertisement
| Model | Deutz Fahr Agrotron TTV 610 | Deutz Fahr Agrotron TTV 620 | Deutz Fahr Agrotron TTV 630 |
| Years of production | – | – | – |
| Engine model / type | TCD2012 | TCD2012 L6 4V | TCD2012 L6 4V |
| Number of cylinders / turbocharging | 6TI | 6TI | 6TI |
| Engine displacement (cm3) | 6057 | 6057 | 6057 |
| Piston dimension / stroke (mm) | 101×126 | 101×126 | 101×126 |
| Maximum engine power (hp) / rpm | 157/2100 | 165/2100 | 203/2100 |
| Torque (Nm) / rpm | 606/1400 | 693/1400 | 851/1300 |
| Number of gears (front + rear) | – | – | – |
| Number of synchronized gears (front+rear) | – | – | – |
Advertisement
| Speed-Shift | – | – | – |
| Type of reverse | hydr | hydr | hydr |
| Driving speed (km/h) | 0,05-40/50 | 0,05-40/50 | 0,05-40/50 |
| Max Driving speed (km/h) | 40/50 | 40/50 | 40/50 |
| Hydraulic pump capacity (L/min) | 120 | 120 | 110 (160) |
| 3-Point Hitch control | ehr | ehr | ehr |
| 3-point hitch max load (kg) | 9200 | 9200 | 10000 |
| PTO speed (rpm) | 540/750/ | 540/750/ | 540/750/ |
| Disc brake type (dry / wet) | – | – | – |
| Type of control of the braking system | – | – | – |
| Turning radius 2WD (m) | – | – | – |
| Turning radius 4WD (m) | 10,26 | 10,26 | 11,6 |
Advertisement
| Front wheel 2WD | – | – | – |
| Front wheel 4WD | 480/70R28 | 540/65R28 | 540/65R34 |
| Rear wheel 2WD | – | – | – |
| Rear wheel 4WD | 580/70R38 | 650/65R38 | 650/65R42 |
| 2WD total weight (kg) | – | – | – |
| 4WD total weight (kg) | 6525 | 6525 | 7300 |
| Total height with cabin (cm) | 300 | 300 | 316 |
| Total length (cm) | 476 | 476 | 481 |
| Total width (cm) | 277 | 277 | 282 |
| Fuel tank capacity (l) | 305 | 305 | 305 |
| Cabin sound level (dB) | 73 | 73 | 70 |
