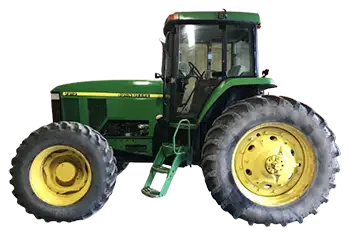

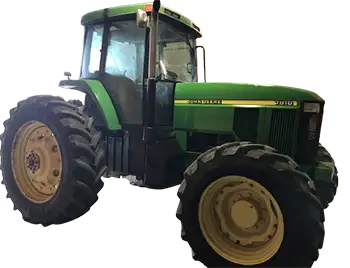

Technical specifications of the agricultural tractor John Deere 7610/7710/7810:
Advertisement
| Model | John Deere 7610 | John Deere 7710 | John Deere 7810 |
| Years of production | – | – | – |
| Engine model / type | 6068T | 6081T | 6081T |
| Number of cylinders / turbocharging | 6T | 6T | 6T |
| Engine displacement (cm3) | 6786 | 8134 | 8134 |
| Piston dimension / stroke (mm) | 106,5×127 | 115,9×128,5 | 115,9×128,5 |
| Maximum engine power (hp) / rpm | 143/2000 | 166/1700 | 190/1700 |
| Torque (Nm) / rpm | 620/1220 | 750/1400 | 882/1400 |
| Number of gears (front + rear) | 20+20/19+7 | 20+20/19+7 | 20+20/19+7 |
| Number of synchronized gears (front+rear) | 20+20 | 20+20 | 20+20 |
Advertisement
| Speed-Shift | 4 | 4 | 4 |
| Type of reverse | hydr | hydr | hydr |
| Driving speed (km/h) | 2,4-40,0/1,6-40,0 | 2,4-40,0/1,6-40,0 | 2,4-40,0/1,6-40,0 |
| Max Driving speed (km/h) | 42 | 42 | 42/50 |
| Hydraulic pump capacity (L/min) | 102 | 102 | 102 |
| 3-Point Hitch control | ehr | ehr | ehr |
| 3-point hitch max load (kg) | 7219 | 7219 | 8150 |
| PTO speed (rpm) | 540/1000 | 540/1000 | 540/1000 |
| Disc brake type (dry / wet) | – | – | – |
| Type of control of the braking system | hydr | hydr | hydr |
| Turning radius 2WD (m) | – | – | – |
| Turning radius 4WD (m) | 10,26 | 10,26 | 10,26 |
Advertisement
| Front wheel 2WD | – | – | – |
| Front wheel 4WD | 16,9R28 | 16,9R28 | 16,9R28 |
| Rear wheel 2WD | – | – | – |
| Rear wheel 4WD | 20,8R38 | 20,8R38 | 20,8R38 |
| 2WD total weight (kg) | – | – | – |
| 4WD total weight (kg) | 6510 | 6800 | 6900 |
| Total height with cabin (cm) | 301 | 301 | 305 |
| Total length (cm) | 475 | 475 | 476 |
| Total width (cm) | 280 | 280 | 280 |
| Fuel tank capacity (l) | 344 | 344 | 344 |
| Cabin sound level (dB) | 72 | 72 | 72 |
