Technical specifications of the agricultural tractors Kubota M95GX III, M105GX III, M115GX III, M125GX II, M135GX III:
Kubota M95GX III
- Years of production: 2016-
- Maximum engine power (HP) / at RPM: 104/2400
- Number of gearbox speeds (forward + reverse): 24+24
- Maximum speed (km/h): 40
- Fuel tank capacity (L): 190+AB16
Kubota M105GX III
- Years of production: 2016-
- Maximum engine power (HP) / at RPM: 111/2400
- Number of gearbox speeds (forward + reverse): 24+24
- Maximum speed (km/h): 40
- Fuel tank capacity (L): 190+AB16
Kubota M115GX III
- Years of production: 2016-
- Maximum engine power (HP) / at RPM: 123/2200
- Number of gearbox speeds (forward + reverse): 24+24
- Maximum speed (km/h): 40
- Fuel tank capacity (L): 190+AB16
Kubota M125GX II
- Years of production: 2016-
- Maximum engine power (HP) / at RPM: 133/2200
- Number of gearbox speeds (forward + reverse): 24+24
- Maximum speed (km/h): 40
- Fuel tank capacity (L): 190+AB16
Kubota M135GX III
- Years of production: 2016-
- Maximum engine power (HP) / at RPM: 143/2200
- Number of gearbox speeds (forward + reverse): 24+24
- Maximum speed (km/h): 40
- Fuel tank capacity (L): 190+AB16
For details and a comparison of the tractors, see the technical sheet below.
Advertisement
Technical Data Sheet for Kubota M95GX III, M105GX III, M115GX III, M125GX II, M135GX III agricultural tractors:
| Model | Kubota M95GX III | Kubota M105GX III | Kubota M115GX III | Kubota M125GX II | Kubota M135GX III |
|---|---|---|---|---|---|
| Years of production | 2016- | 2016- | 2016- | 2016- | 2016- |
| Engine designation/type | V3800-CR-TIEF4 | V3800-CR-TIEF4 | V6108-CR-TIEF4 | V6108-CR-TIEF4 | V6108-CR-TIEF4 |
| Number of cylinders / Turbo / Intercooler | 4TI | 4TI | 4TI | 4TI | 4TI |
| Engine displacement (cm³) | 3769 | 3769 | 6124 | 6124 | 6124 |
| Piston diameter / Stroke (mm) | 100×120 | 100×120 | 118×140 | 118×140 | 118×140 |
| Maximum engine power (HP) / at RPM | 104/2400 | 111/2400 | 123/2200 | 133/2200 | 143/2200 |
| Torque (Nm) / at RPM | 346/1500 | 379/1500 | 503/1500 | 544/1500 | 586/1500 |
| Number of gearbox speeds (forward + reverse) | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 |
| Number of synchronized gears (forward + reverse) | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 |
Advertisement
| Fast gearbox / Power shift | 8 | 8 | 8 | 8 | 8 |
|---|---|---|---|---|---|
| Reverser type | hydr | hydr | hydr | hydr | hydr |
| Speed range (km/h) | 0,8-39,9 | 0,8-39,9 | 0,8-39,4 | 0,8-39,4 | 0,8-39,4 |
| Maximum speed (km/h) | 40 | 40 | 40 | 40 | 40 |
| Hydraulic pump capacity (L/min) | 76,3 | 76,3 | 82,5 | 82,5 | 82,5 |
| Rear three-point hitch (TUV) control type | ehr | ehr | ehr | ehr | ehr |
| Maximum rear three-point hitch (TUV) lift capacity (kg) | 5000 | 5000 | 6100 | 6100 | 6100 |
| Power take-off (PTO) speed (RPM) | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
| Type of disc brake (dry/wet) | – | – | – | – | – |
| Brake system control type | – | – | – | – | – |
| Turning radius 2WD (m) | – | – | – | – | – |
| Turning radius 4WD (m) | 8,2 | 8,2 | 9 | 9 | 9 |
Advertisement
| Front tire size 2WD | – | – | – | – | – |
|---|---|---|---|---|---|
| Front tire size 4WD | 380/70R24 | 380/70R24 | 420/70R24 | 420/70R24 | 420/70R24 |
| Rear tire size 2WD | – | – | – | – | – |
| Rear tire size 4WD | 520/70R34 | 520/70R34 | 520/70R38 | 520/70R38 | 520/70R38 |
| Total weight 2WD (kg) | – | – | – | – | – |
| Total weight 4WD (kg) | 4300 | 4300 | 4810 | 4810 | 4810 |
| Total height with cabin (cm) | 283 | 283 | 283 | 289 | 289 |
| Total length (cm) | 431 | 431 | 446 | 446 | 446 |
| Total width (cm) | 244 | 244 | 244 | 269 | 269 |
| Fuel tank capacity (L) | 190+AB16 | 190+AB16 | 190+AB16 | 190+AB16 | 190+AB16 |
| Cabin noise level (dB) | 73 | 73 | 73 | 73 | 73 |
Fuel consumption and user reviews of tractors Kubota M95GX III, M105GX III, M115GX III, M125GX II, M135GX III:

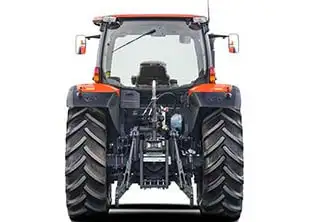

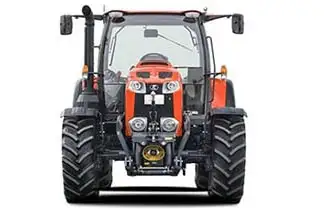

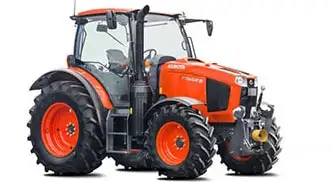

Kubota M95GX III, M105GX III, M115GX III, M125GX II, M135GX III Gallery:
