Landini R 3000

Landini 3000, 7000, 5000, 6000 – specs, opinions & photos

Looking for information about agricultural tractors Landini 3000, 7000, 5000, 6000? In this article, you'll find answers to questions such as:

  • How much horsepower does each model have?
  • What is the engine capacity of these models?
  • What is the hydraulic pump output for each one?
  • What is the PTO speed of these tractors?

With a spec sheet presented in table form, comparing the tractors is quick and easy, and user reviews will help you make the right choice.

Table of contents:

Technical specifications of the agricultural tractors Landini 3000, 7000, 5000, 6000:

Landini 3000
Landini 7000
Landini 5000
Landini 6000

Landini 3000

  • Years of production: 61-68
  • Maximum engine power (HP) / at RPM: 40/2000
  • Number of gearbox speeds (forward + reverse): 6+2/8+2
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): –

Landini 7000

  • Years of production: 64-68
  • Maximum engine power (HP) / at RPM: 65/2000
  • Number of gearbox speeds (forward + reverse): 6+2
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): –

Landini 5000

  • Years of production: 68-74
  • Maximum engine power (HP) / at RPM: 52/2250
  • Number of gearbox speeds (forward + reverse): 12+4
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): –

Landini 6000

  • Years of production: 68-74
  • Maximum engine power (HP) / at RPM: 62/2000
  • Number of gearbox speeds (forward + reverse): 12+4
  • Maximum speed (km/h): –
  • Fuel tank capacity (L): –

For details and a comparison of the tractors, see the technical sheet below.

Advertisement


Technical Data Sheet for Landini 3000, 7000, 5000, 6000 tractors:

Comparison of technical parameters of agricultural tractors
Model Landini 3000 Landini 7000 Landini 5000 Landini 6000
Years of production 61-68 64-68 68-74 68-74
Engine designation/type Perkins P3 Perkins A4.203 Perkins AD3.152 Perkins A4.203
Number of cylinders / Turbo / Intercooler 3 4 3 4
Engine displacement (cm³) 2360 3330 2503 3330
Piston diameter / Stroke (mm) 88,9×127 91,49×127 91,44×127 91,44×127
Maximum engine power (HP) / at RPM 40/2000 65/2000 52/2250 62/2000
Torque (Nm) / at RPM 219/1300 – – –
Number of gearbox speeds (forward + reverse) 6+2/8+2 6+2 12+4 12+4
Number of synchronized gears (forward + reverse) – – 12+4 12+4

Advertisement

Fast gearbox / Power shift – – – –
Reverser type – – – –
Speed range (km/h) 1,3-24,8 1,9-20,0 1,6-24,0 1,6-24,0
Maximum speed (km/h) – – – –
Hydraulic pump capacity (L/min) – – – –
Rear three-point hitch (TUV) control type mech mech mech mech
Maximum rear three-point hitch (TUV) lift capacity (kg) – – 3700 3700
Power take-off (PTO) speed (RPM) 540 540 540 540
Type of disc brake (dry/wet) – – – –
Brake system control type mech mech mech mech
Turning radius 2WD (m) – – – –
Turning radius 4WD (m) – – – –

Advertisement

Front tire size 2WD 5,50-16 – 6,00-16 6,00-16
Front tire size 4WD 8,00-20 – 7,50-20 8,00-20
Rear tire size 2WD 12,4-28 – 12,4-32 12,4-32
Rear tire size 4WD 14,9-28 – 12,4-32 12,4-32
Total weight 2WD (kg) 1540 – 1900 2100
Total weight 4WD (kg) 2400 – 2100 2400
Total height with cabin (cm) 134 160 137 141
Total length (cm) 291 326 310/322 336
Total width (cm) 185 206 192/205 216
Fuel tank capacity (L) – – – –
Cabin noise level (dB) – – – –

Advertisement

Fuel consumption and user reviews of tractors Landini 3000, 7000, 5000, 6000:

Add your opinion:

Easy work 0.0 l/h
Medium work 0.0 l/h
Hard work 0.0 l/h

Opinions posted:

No opinions.

Average fuel consumption:

Easy - l/h
Medium - l/h
Hard - l/h

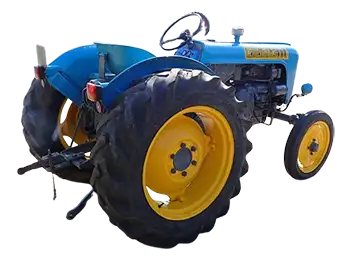

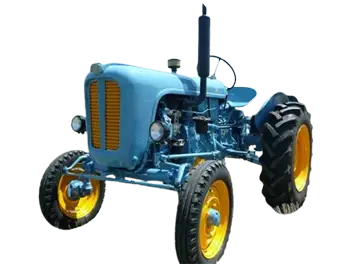

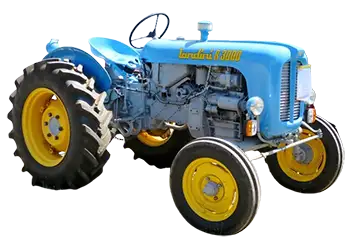

Landini 3000, 7000, 5000, 6000 Gallery:
