Massey Ferguson 9S.285, 9S.310, 9S.340, 9S.370, 9S.400, 9S.425 – specs, opinions & photos

Looking for information about agricultural tractors Massey Ferguson 9S.285, 9S.310, 9S.340, 9S.370, 9S.400, 9S.425? In this article, you'll find answers to questions such as:

  • How much horsepower does each model have?
  • What is the engine capacity of these models?
  • What is the hydraulic pump output for each one?
  • What is the PTO speed of these tractors?

With a spec sheet presented in table form, comparing the tractors is quick and easy, and user reviews will help you make the right choice.

Table of contents:

Technical specifications of the agricultural tractors Massey Ferguson 9S.285, 9S.310, 9S.340, 9S.370, 9S.400, 9S.425:

Massey Ferguson 9S.285
Massey Ferguson 9S.310
Massey Ferguson 9S.340
Massey Ferguson 9S.370
Massey Ferguson 9S.400
Massey Ferguson 9S.425

Massey Ferguson 9S.285

  • Years of production: 2023-
  • Maximum engine power (HP) / at RPM: 285(315)/1850
  • Number of gearbox speeds (forward + reverse): CVT
  • Maximum speed (km/h): 43/53
  • Fuel tank capacity (L): 660(+AB68)

Massey Ferguson 9S.310

  • Years of production: 2023-
  • Maximum engine power (HP) / at RPM: 310(340)/1850
  • Number of gearbox speeds (forward + reverse): CVT
  • Maximum speed (km/h): 43/53
  • Fuel tank capacity (L): 660(+AB68)

Massey Ferguson 9S.340

  • Years of production: 2023-
  • Maximum engine power (HP) / at RPM: 340(370)/1850
  • Number of gearbox speeds (forward + reverse): CVT
  • Maximum speed (km/h): 43/53
  • Fuel tank capacity (L): 660(+AB68)

Massey Ferguson 9S.370

  • Years of production: 2023-
  • Maximum engine power (HP) / at RPM: 370(400)/1850
  • Number of gearbox speeds (forward + reverse): CVT
  • Maximum speed (km/h): 43/53
  • Fuel tank capacity (L): 660(+AB68)

Massey Ferguson 9S.400

  • Years of production: 2023-
  • Maximum engine power (HP) / at RPM: 400(420)/1850
  • Number of gearbox speeds (forward + reverse): CVT
  • Maximum speed (km/h): 43/53
  • Fuel tank capacity (L): 660(+AB68)

Massey Ferguson 9S.425

  • Years of production: 2023-
  • Maximum engine power (HP) / at RPM: 425/1850
  • Number of gearbox speeds (forward + reverse): CVT
  • Maximum speed (km/h): 43/53
  • Fuel tank capacity (L): 660(+AB68)

For details and a comparison of the tractors, see the technical sheet below.

Advertisement

Technical Data Sheet for Massey Ferguson 9S.285, 9S.310, 9S.340, 9S.370, 9S.400, 9S.425 agricultural tractors:

Comparison of technical parameters of agricultural tractors
Model Massey Ferguson 9S.285 Massey Ferguson 9S.310 Massey Ferguson 9S.340 Massey Ferguson 9S.370 Massey Ferguson 9S.400 Massey Ferguson 9S.425
Years of production 2023- 2023- 2023- 2023- 2023- 2023-
Engine designation/type 84 LXTN 84 LXTN 84 LXTN 84 LXTN 84 LXTN 84 LXTN
Number of cylinders / Turbo / Intercooler 6TI 6TI 6TI 6TI 6TI 6TI
Engine displacement (cm3) 8400 8400 8400 8400 8400 8400
Piston diameter / Stroke (mm) 111/145 111/145 111/145 111/145 111/145 111/145
Maximum engine power (HP) / at RPM 285(315)/1850 310(340)/1850 340(370)/1850 370(400)/1850 400(420)/1850 425/1850
Torque (Nm) / at RPM 1250(1400)/1500 1300(1500)/1500 1450(1600)/1500 1600(1700)/1500 1650(1750)/1500 1750/1500
Number of gearbox speeds (forward + reverse) CVT CVT CVT CVT CVT CVT
Number of synchronized gears (forward + reverse) CVT CVT CVT CVT CVT CVT

See also: Catalog of filters for Massey Ferguson tractors

Advertisement

Fast gearbox / Power shift CVT CVT CVT CVT CVT CVT
Reverser type hydr hydr hydr hydr hydr hydr
Speed range (km/h) 0,03-40/50 0,03-40/50 0,03-40/50 0,03-40/50 0,03-40/50 0,03-40/50
Maximum speed (km/h) 43/53 43/53 43/53 43/53 43/53 43/53
Hydraulic pump capacity (L/min) 270 (400) 270 (400) 270 (400) 270 (400) 270 (400) 270 (400)
Rear three-point hitch (TUV) control type ehr ehr ehr ehr ehr ehr
Maximum rear three-point hitch (TUV) lift capacity (kg) 12000 12000 12000 12000 12000 12000
Power take-off (PTO) speed (RPM) 750/1000 750/1000 750/1000 750/1000 750/1000 750/1000
Type of disc brake (dry/wet) wet wet wet wet wet wet
Brake system control type hydr hydr hydr hydr hydr hydr
Turning radius 2WD (m) – – – – – –
Turning radius 4WD (m) 11,5 11,5 11,5 11,5 11,5 11,5

Advertisement

Front tire size 2WD – – – – – –
Front tire size 4WD 600/70R30 600/70R30 600/70R30 650/60R34 650/60R34 650/60R34
Rear tire size 2WD – – – – – –
Rear tire size 4WD 650/85R38 650/85R38 650/85R38 710/75R42 710/75R42 710/75R42
Total weight 2WD (kg) – – – – – –
Total weight 4WD (kg) 12000 12000 12000 12000 12000 12000
Total height with cabin (cm) 341 341 341 341 341 341
Total length (cm) 560 560 560 560 560 560
Wheelbase (cm) 310 310 310 310 310 310
Fuel tank capacity (L) 660(+AB68) 660(+AB68) 660(+AB68) 660(+AB68) 660(+AB68) 660(+AB68)
Cabin noise level (dB) 69 69 69 69 69 69

Fuel consumption and user reviews of tractors Massey Ferguson 9S.285, 9S.310, 9S.340, 9S.370, 9S.400, 9S.425:

Add your opinion:

Easy work 0.0 l/h
Medium work 0.0 l/h
Hard work 0.0 l/h

Opinions posted:

No opinions.

Average fuel consumption:

Easy - l/h
Medium - l/h
Hard - l/h

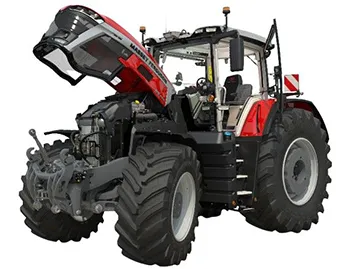

Massey Ferguson 9S.285, 9S.310, 9S.340, 9S.370, 9S.400, 9S.425 Gallery:
